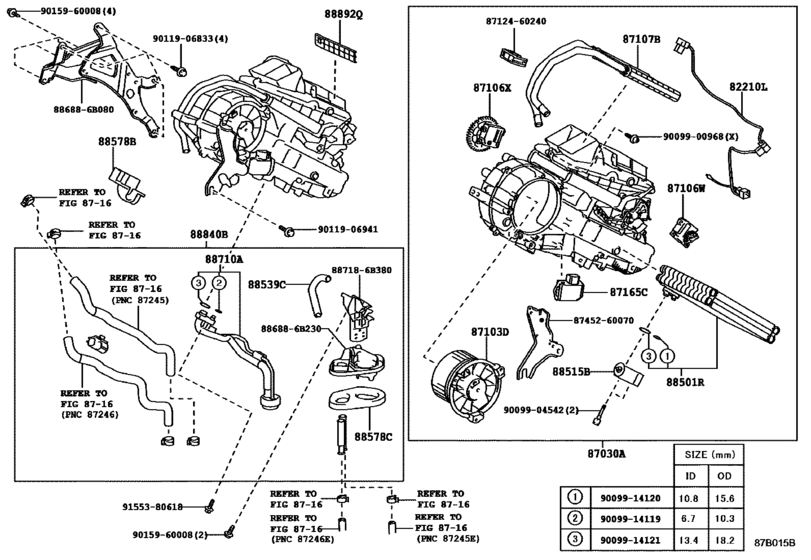

Heating & Air Conditioning - Cooler Unit ([08.2009 - ] REAR (0908- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210L
|
82210L
82212-48020
Harness Assy, Air Conditioner, No.2
[06.2015 - 09.2015] GRJ150..ARL; GRJ150..LHD;GDJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO); KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL) |
82212-48020 |
— | ||
| replacement | |||||
|
82210L
|
82210L
82212-48021
Harness Assy, Air Conditioner, No.2
[06.2015 - 09.2015] GRJ150..ARL; GRJ150..LHD;GDJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO); KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL) |
82212-48021 |
— | ||
|
82210L
|
82210L
82212-48021
Harness Assy, Air Conditioner, No.2
[10.2015 -] GRJ150..ARL; GRJ150..LHD;GDJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO); KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL) |
82212-48021 |
— | ||
|
87030A
|
87030A
87030-60050
Unit Assy, Cooling, Rear
[06.2015 - 09.2015] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GR |
87030-60050 |
— | ||
| replacement | |||||
|
87030A
|
87030A
87030-60051 Unit Assy, Cooling, Rear[06.2015 - 09.2015] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GR |
87030-60051 |
US $1,425.20 |
||
|
87030A
|
87030A
87030-60051 Unit Assy, Cooling, Rear[10.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
87030-60051 |
US $1,425.20 |
||
|
87103D
|
87103D
87103-28111 Motor Sub-Assy, Cooling Unit, W/fan[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
87103-28111 |
from US $238.60 |
||
|
87106W
|
87106W
87106-28170 Damper Servo Sub-Assy, Rear Cooling Unit, No.1[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
87106-28170 |
US $112.63 |
||
|
87106X
|
87106X
87106-58030 Damper Servo Sub-Assy, Rear Cooling Unit, No.2[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
87106-58030 |
US $115.21 |
||
|
87107B
|
87107B
87107-60420
Unit Sub-Assy, Heater Radiator
[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
87107-60420 |
— | ||
|
87165C
|
87165C
87165-28020 Control, Blower Motor[06.2015 -] GRJ150..ARL; GRJ150..LHD;GDJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO); KDJ150..RHD;GRJ150,KDJ150..GCC;GDJ150,LJ150,TRJ150 AIR CONDITIONER-DUAL(MANUAL) |
87165-28020 |
from US $125.80 |
||
|
88501R
|
88501R
88501-28360 Evaporator Sub-Assy (Rear)[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88501-28360 |
from US $396.61 |
||
|
88515B
|
88515B
88515-28250 Valve, Rear Cooling Unit Expansion[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88515-28250 |
from US $84.45 |
||
|
88539C
|
88539C
88539-60290
Hose, Cooler Unit Drain, No.2
[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88539-60290 |
— | ||
|
88578B
|
88578B
88578-60450
Packing, Cooling Unit, No.1
[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88578-60450 |
— | ||
|
88578C
|
88578C
88578-60510
Packing, Cooling Unit, No.2
[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88578-60510 |
— | ||
|
88710A
|
88710A
88710-60C20 Tube Assy, Air ConditionerAIRCONDITIONER [06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88710-60C20 |
US $126.67 |
||
|
88840B
|
88840B
88840-60151 Accessory Assy, Air Conditioner[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88840-60151 |
US $243.67 |
||
|
88892Q
|
88892Q
88892-28020
Plate, Cooler
[06.2015 -] GRJ150..ARL; GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(AUTO); GRJ150,KDJ150,TRJ150..GCC GCC SPEC&AIR CONDITIONER-DUAL(MANUAL); GRJ150,KDJ150,TRJ150..ATM..GCC EGYPT SPEC&AIR CONDITIONER-DUAL(AUTO); LJ150..LHD;GRJ150,KDJ150,TRJ150. |
88892-28020 |
— | ||
|
886886B080
|
886886B080
88688-6B080
Bracket, Cooler Diaphragm
|
88688-6B080 |
— | ||
|
886886B230
|
886886B230
88688-6B230
Bracket
|
88688-6B230 |
— | ||
|
887186B380
|
887186B380
88718-6B380
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6B380 |
— | ||
|
8712460240
|
8712460240
87124-60240
Clamp, Heater
|
87124-60240 |
— | ||
|
8745260070
|
8745260070
87452-60070
Bracket, Fuel Magnet Valve
|
87452-60070 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.15 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9011906941
|
9011906941
90119-06941 BOLT WWASHER |
90119-06941 |
US $0.96 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
