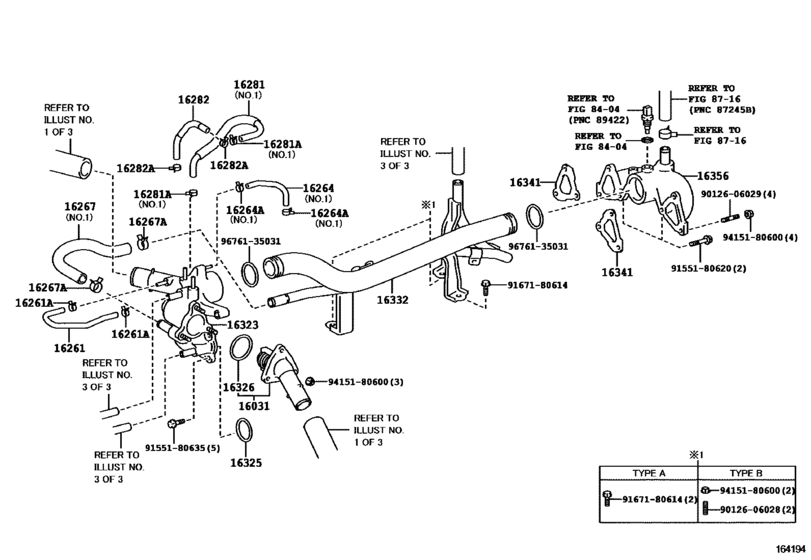

Radiator & Water Outlet ([08.2009 - ] (0908- )1GRFE) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16031
|
16031
16031-31011 Water Inlet Sub-Assy, W/thermostat[06.2015 -] 1GRFE..GRJ150 |
16031-31011 |
from US $35.33 |
||
|
16261
|
16261
16261-31100 Hose, Water By-PassWATER BY-PASS [06.2015 -] 1GRFE..GRJ150 |
16261-31100 |
from US $4.89 |
||
|
16261A
|
16261A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[06.2015 -] 1GRFE..GRJ150 |
96137-41301 |
from US $2.13 |
||
|
16264
|
16264
16264-31110 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [06.2015 -] 1GRFE..GRJ150 NO.1 |
16264-31110 |
from US $4.89 |
||
|
16264
|
16264
16264-31190
Hose, Water By-Pass, No.2
[06.2015 -] 1GRFE..GRJ150..6FC..GEN ENGINE-FOR EURO 5 CONFORMITY,NO.2 |
16264-31190 |
— | ||
|
16264A
|
16264A
96136-42501 Clip(For Ventilation Hose)[06.2015 -] 1GRFE..GRJ150..6FC..GEN ENGINE-FOR EURO 5 CONFORMITY,NO.2 |
96136-42501 |
from US $3.26 |
||
|
16264A
|
16264A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[06.2015 -] 1GRFE..GRJ150 |
96137-41301 |
from US $2.13 |
||
|
16267
|
16267
16267-31010 Hose, Water By-Pass, No.3[06.2015 -] 1GRFE..GRJ150 NO.1 |
16267-31010 |
from US $8 |
||
|
16267
|
16267
16267-31130
Hose, Water By-Pass, No.3
[06.2015 -] 1GRFE..GRJ150..6FC..GEN ENGINE-FOR EURO 5 CONFORMITY,NO.2 |
16267-31130 |
— | ||
|
16267A
|
16267A
96136-42501 Clip(For Ventilation Hose)[06.2015 -] 1GRFE..GRJ150 |
96136-42501 |
from US $3.26 |
||
|
16281
|
16281
16281-31060 Hose, Water By-Pass, No.4WATER BY-PASS, NO.4 [06.2015 -] 1GRFE..GRJ150 NO.1 |
16281-31060 |
from US $4.89 |
||
|
16281
|
16281
16281-31070 Hose, Water By-Pass, No.4WATER BY-PASS, NO.4 [06.2015 -] 1GRFE..GRJ150..6FC..GEN ENGINE-FOR EURO 5 CONFORMITY,NO.2 |
16281-31070 |
US $7.28 |
||
|
16281A
|
16281A
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[06.2015 -] 1GRFE..GRJ150 NO.1 |
96136-41501 |
from US $1.13 |
||
|
16281A
|
16281A
96136-42501 Clip(For Ventilation Hose)[06.2015 -] 1GRFE..GRJ150..6FC..GEN ENGINE-FOR EURO 5 CONFORMITY,NO.2 |
96136-42501 |
from US $3.26 |
||
|
16282
|
16282
16282-31040 Hose, Water By-Pass, No.5WATER BY-PASS, NO.5 [06.2015 -] 1GRFE..GRJ150 |
16282-31040 |
from US $4.89 |
||
|
16282A
|
16282A
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[06.2015 -] 1GRFE..GRJ150 |
96136-41501 |
from US $1.13 |
||
|
16323
|
16323
16323-31021 Housing, Water InletWATER INLET [06.2015 -] 1GRFE..GRJ150 |
16323-31021 |
from US $67.92 |
||
|
16325
|
16325
16325-31010 Gasket, Water Inlet Housing, No.1[06.2015 -] 1GRFE..GRJ150 |
16325-31010 |
from US $1.17 |
||
|
16326
|
16326
16326-31020 Gasket, Water Inlet Housing, No.2[06.2015 -] 1GRFE..GRJ150 |
16326-31020 |
US $1.24 |
||
|
16332
|
16332
16306-31021 Pipe, Water Outlet, No.1[06.2015 -] 1GRFE..GRJ150 |
16306-31021 |
from US $68.68 |
||
|
16341
|
16341
16341-31010 Gasket, Water Outlet[06.2015 -] 1GRFE..GRJ150 |
16341-31010 |
from US $4.66 |
||
|
16356
|
16356
16356-31011 Joint, Water By-Pass, RearWATER BY-PASS, REAR [06.2015 -] 1GRFE..GRJ150 |
16356-31011 |
from US $57.02 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.64 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.66 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.78 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9676135031
|
9676135031
96761-35031 Ring, O(For Water Inlet Pipe) |
96761-35031 |
from US $2.57 |
