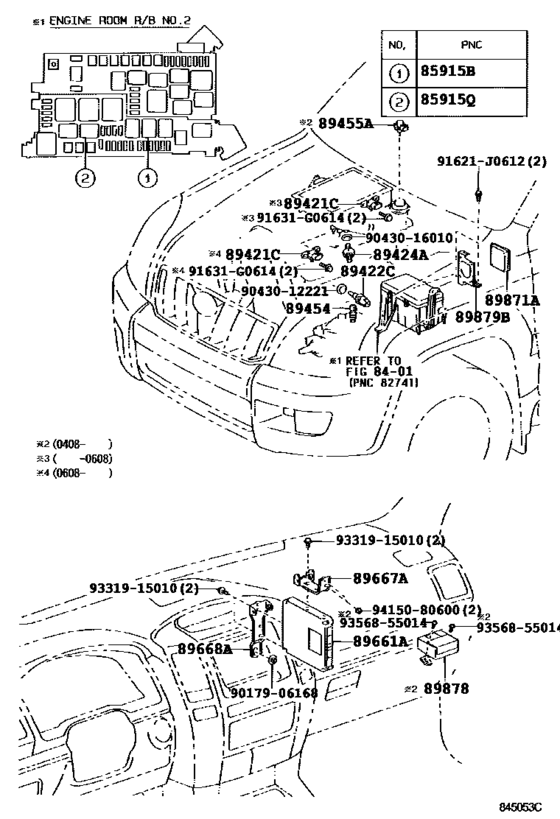

Electronic Controled Diesel (Ecd) ([09.2002 - ] (0209- )KDJ12#..LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2004 - 2009
- Sales region
- Europe
- Frame
- KDJ120
- grade
- GX
- ENGINE
- 1KDFTV
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 08.2004
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
90987-02027 Relay[01.2004 - 08.2009] KDJ12# |
90987-02027 |
from US $47.11 |
||
|
85915Q
|
85915Q
90987-02027 Relay[01.2004 -] KDJ12# |
90987-02027 |
from US $47.11 |
||
|
89421C
|
89421C
89421-20200 Sensor, Turbo Pressure (For Diesel Turbo)TURBO PRESSURE (FOR DIESEL TURBO) [08.2006 - 08.2009] KDJ12# |
89421-20200 |
from US $96.76 |
||
|
89421C
|
89421C
89421-71020 Sensor, Turbo Pressure (For Diesel Turbo)[08.2004 - 08.2006] KDJ12# |
89421-71020 |
from US $96.76 |
||
|
89422C
|
89422C
89422-33030 Sensor, Water Temperature (For E.f.i.)[08.2004 -] KDJ12# |
89422-33030 |
from US $40.49 |
||
|
89424A
|
89424A
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[09.2002 - 08.2009] KDJ12# |
89424-60010 |
from US $73.08 |
||
|
89454
|
89454
89454-20010 Sensor, Fuel Temperature[09.2005 - 08.2009] KDJ12# |
89454-20010 |
from US $40.66 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[09.2002 - 08.2005] KDJ12# |
89454-60010 |
from US $37.65 |
||
|
89455A
|
89455A
89455-35020 Sensor, Egr Valve Position[08.2004 - 08.2009] KDJ12# |
89455-35020 |
US $73.58 |
||
|
89661A
|
89661A
89661-60E80 Computer, Engine ControlENGINE CONTROL [08.2006 - 07.2007] KDJ12#..5FC |
89661-60E80 |
US $1,441.44 |
||
| replacement | |||||
|
89661A
|
89661A
89661-60E81 Computer, Engine ControlENGINE CONTROL [08.2006 - 07.2007] KDJ12#..5FC |
89661-60E81 |
US $1,201.20 |
||
|
89661A
|
89661A
89661-60E81 Computer, Engine ControlENGINE CONTROL [08.2007 -] KDJ12#..5FC |
89661-60E81 |
US $1,201.20 |
||
|
89661A
|
89661A
89661-6A330
Computer, Engine Control
[08.2004 - 08.2006] KDJ12#..5FC |
89661-6A330 |
— | ||
|
89667A
|
89667A
89667-60240 Bracket, Engine Control Computer[09.2002 - 07.2007] KDJ12#..5FC,6F |
89667-60240 |
US $9.61 |
||
|
89668A
|
89668A
89668-60240 Bracket, Engine Control Computer, No.2[09.2002 - 07.2007] KDJ12#..5FC,6F |
89668-60240 |
US $15.72 |
||
|
89871A
|
89871A
89871-20050 Driver, Injector[08.2004 -] KDJ12# |
89871-20050 |
US $666.85 |
||
|
89878
|
89878
89878-60020
Driver, Turbo Motor
[08.2004 - 08.2006] KDJ12#..LHD |
89878-60020 |
— | ||
|
89878
|
89878
89878-60040
Driver, Turbo Motor
[08.2006 -] KDJ12#..LHD |
89878-60040 |
— | ||
|
89879B
|
89879B
89879-60060 Bracket, Injector DriverINJECTOR DRIVER [09.2002 -] KDJ12# |
89879-60060 |
US $23.59 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
