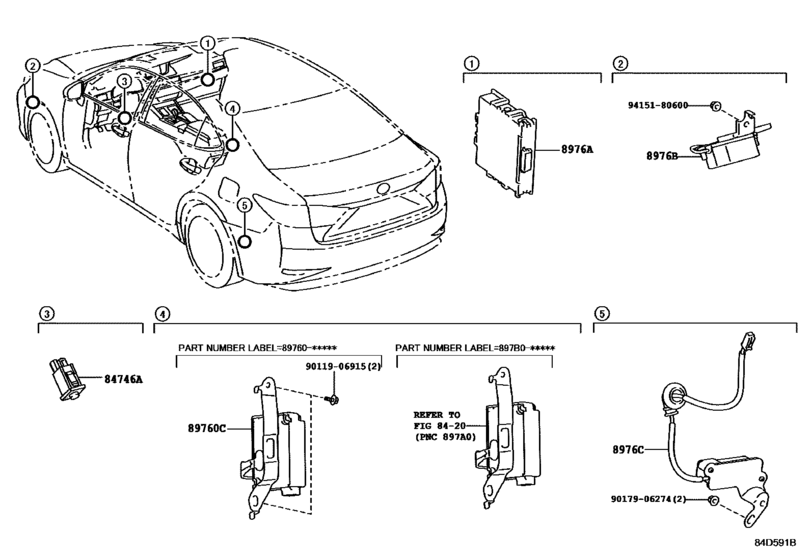

Tire Pressure Warning System ([06.2012 - ] (1206- )) Diagram Toyota LEXUS ES
- Year
- 2012 - 2015
- Sales region
- Europe
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- To
- 07.2015
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8976A
|
8976A
8976A-33010
Driver, Tire Pressure Monitor Initiator
[06.2012 - 08.2013] ASV60,AVV60,GSV60 |
8976A-33010 |
— | ||
| replacement | |||||
|
8976A
|
8976A
8976A-33030 Driver, Tire Pressure Monitor Initiator[06.2012 - 08.2013] ASV60,AVV60,GSV60 |
8976A-33030 |
US $202.38 |
||
|
8976A
|
8976A
8976A-33011
Driver, Tire Pressure Monitor Initiator
[08.2013 - 05.2015] ASV60,AVV60,GSV60 |
8976A-33011 |
— | ||
| replacement | |||||
|
8976A
|
8976A
8976A-33030 Driver, Tire Pressure Monitor Initiator[08.2013 - 05.2015] ASV60,AVV60,GSV60 |
8976A-33030 |
US $202.38 |
||
|
8976A
|
8976A
8976A-33030 Driver, Tire Pressure Monitor Initiator[06.2015 - 07.2015] ASV60,AVV60,GSV60 |
8976A-33030 |
US $202.38 |
||
|
8976B
|
8976B
8976B-33010
Initiator, Tire Pressure Monitor Front
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
8976B-33010 |
— | ||
| replacement | |||||
|
8976B
|
8976B
8976B-33011
Initiator, Tire Pressure Monitor Front
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
8976B-33011 |
— | ||
|
8976C
|
8976C
8976C-33030
Initiator, Tire Pressure Monitor Rear
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
8976C-33030 |
— | ||
| replacement | |||||
|
8976C
|
8976C
8976C-33031
Initiator, Tire Pressure Monitor Rear
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
8976C-33031 |
— | ||
|
84746A
|
84746A
84746-48010 Switch, Tire Pressure Warning, No.2[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84746-48010 |
US $31.16 |
||
|
89760C
|
89760C
89760-33050
Receiver Assy, Tire Pressure Monitor
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
89760-33050 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
