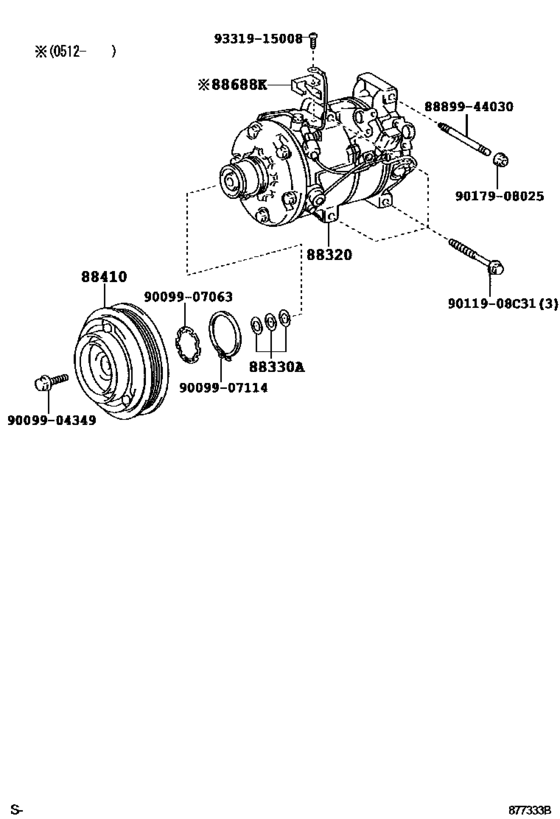

Heating & Air Conditioning - Compressor ([08.2005 - ] (0508- )GRS19#) Diagram Toyota LEXUS GS
- Year
- 2005 - 2011
- Sales region
- Japan
- Frame
- GRS196
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- GS350
- From
- 08.2005
- To
- 12.2011
- Vehicle Model
- GS350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-3A280 Compressor Assy, Cooler[08.2005 - 12.2005] GRS196 |
88320-3A280 |
US $1,745.04 |
||
|
88320
|
88320
88320-3A310 Compressor Assy, Cooler[12.2005 - 09.2007] GRS196 |
88320-3A310 |
US $1,395.71 |
||
|
88330A
|
88330A
88335-14020 Washer[08.2005 - 09.2007] GRS19# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-3A280 Clutch Assy, Magnet[08.2005 - 12.2005] GRS19# |
88410-3A280 |
from US $526.31 |
||
|
88410
|
88410
88410-3A290 Clutch Assy, Magnet[12.2005 - 09.2007] GRS19# |
88410-3A290 |
from US $376.14 |
||
|
88688K
|
88688K
88688-33460
Bracket, Cooler Compressor
[12.2005 - 09.2007] GRS19# |
88688-33460 |
— | ||
|
9011908C31
|
9011908C31
90119-08C31 New Genuine Part |
90119-08C31 |
US $5.24 |
||
|
8889944030
|
8889944030
88899-44030
Cover, Evaporator
|
88899-44030 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.01 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
