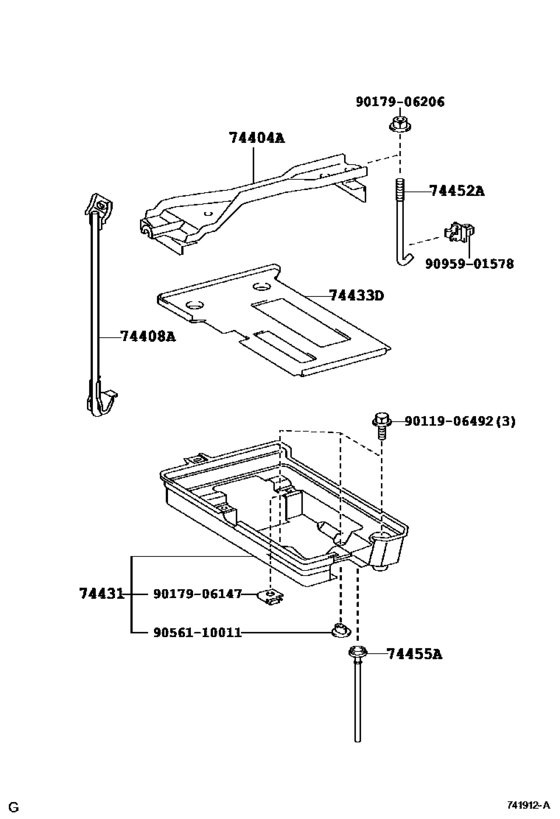

Battery Carrier ([04.2006 - ] (0604- )GEN) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-22370 Clamp Sub-Assy, Battery[04.2006 - 08.2008] GSE22 |
74404-22370 |
from US $11.15 |
||
|
74408A
|
74408A
74408-22030 Bolt Sub-Assy, Battery Clamp, No.2[04.2006 - 08.2008] GSE22 |
74408-22030 |
US $6.70 |
||
| replacement | |||||
|
74408A
|
74408A
74408-22031 Bolt Sub-Assy, Battery Clamp, No.2[04.2006 - 08.2008] GSE22 |
74408-22031 |
from US $4.68 |
||
|
74408A
|
74408A
74408-22031 Bolt Sub-Assy, Battery Clamp, No.2[03.2011 -] GSE2# |
74408-22031 |
from US $4.68 |
||
|
74431
|
74431
74431-53030 Tray, Battery[04.2006 - 08.2008] GSE22..GEN |
74431-53030 |
US $62.03 |
||
|
74433D
|
74433D
74433-53010 Support, Battery Tray,no.1[04.2006 - 08.2008] GSE22..GEN |
74433-53010 |
US $18.93 |
||
| replacement | |||||
|
74433D
|
74433D
74433-53011 Support, Battery Tray,no.1BATTERY TRAY,NO.1 [04.2006 - 08.2008] GSE22..GEN |
74433-53011 |
US $15.58 |
||
|
74433D
|
74433D
74433-53011 Support, Battery Tray,no.1BATTERY TRAY,NO.1 [08.2009 - 08.2010] GSE22..GEN |
74433-53011 |
US $15.58 |
||
|
74452A
|
74452A
74452-53020 Bolt, Battery Clamp, No.2[04.2006 - 08.2008] GSE22 |
74452-53020 |
from US $2.63 |
||
|
74455A
|
74455A
74455-30020
Hose, Battery Drain
[04.2006 - 08.2008] GSE22 |
74455-30020 |
— | ||
|
9011906492
|
9011906492
90119-06492 BOLT |
90119-06492 |
from US $0.78 |
||
|
9017906147
|
9017906147
90179-06147 NUT |
90179-06147 |
from US $2.69 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9056110011
|
9056110011
90561-10011 New Genuine Part |
90561-10011 |
US $0.87 |
||
|
9095901578
|
9095901578
90959-01578 CLAMP |
90959-01578 |
US $1.25 |
||
