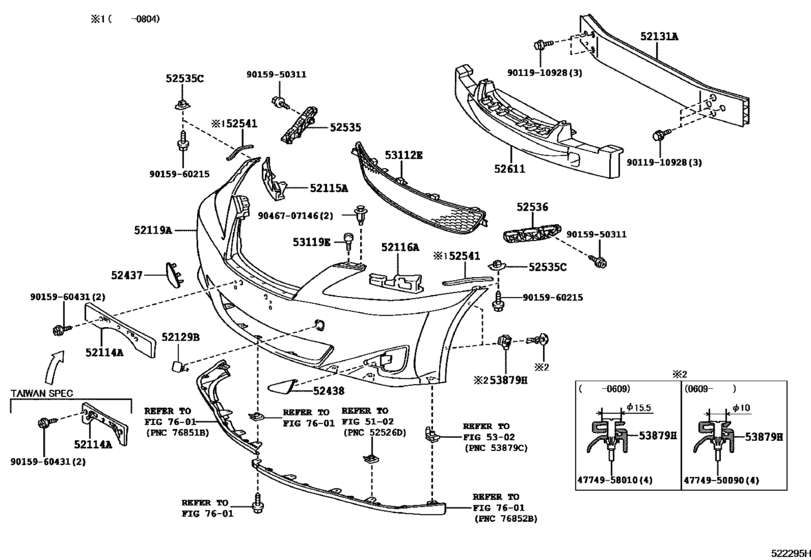

Front Bumper & Bumper Stay ([04.2006 - 08.2008] (0604-0808)) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52114A
|
52114A
52114-53070
Bracket, Front Bumper Extention Mounting
[04.2006 - 06.2008] GSE22..GEN |
52114-53070 |
— | ||
| replacement | |||||
|
52114A
|
52114A
52114-53071
Bracket, Front Bumper Extention Mounting
[04.2006 - 06.2008] GSE22..GEN |
52114-53071 |
— | ||
|
52114A
|
52114A
52114-53071
Bracket, Front Bumper Extention Mounting
[07.2008 - 08.2008] GSE22..GEN; GSE22..GCC CHINA SPEC; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC PHILIPPINE SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE22..GCC CHINA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE22..GCC PHILIPPINE SPEC&HEADLAMP-DISCHARGE |
52114-53071 |
— | ||
|
52114A
|
52114A
52114-53130
Bracket, Front Bumper Extention Mounting
[08.2008 - 07.2009] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52114-53130 |
— | ||
|
52114A
|
52114A
52114-53131
Bracket, Front Bumper Extention Mounting
[08.2009 - 10.2009] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52114-53131 |
— | ||
| replacement | |||||
|
52114A
|
52114A
52114-53130
Bracket, Front Bumper Extention Mounting
[08.2009 - 10.2009] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC |
52114-53130 |
— | ||
|
52114A
|
52114A
52114-53220
Bracket, Front Bumper Extention Mounting
[08.2010 -] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC |
52114-53220 |
— | ||
|
52115A
|
52115A
52115-53020 Support, Front Bumper Side, Rh[04.2006 - 08.2008] GSE22 |
52115-53020 |
from US $101.91 |
||
|
52115A
|
52115A
52115-53050 Support, Front Bumper Side, Rh[08.2008 - 08.2010] GSE22 |
52115-53050 |
from US $72.60 |
||
|
52115A
|
52115A
52115-53070 Support, Front Bumper Side, Rh[08.2010 -] GSE2# |
52115-53070 |
from US $77.59 |
||
|
52116A
|
52116A
52116-53020 Support, Front Bumper Side, Lh[04.2006 - 08.2008] GSE22 |
52116-53020 |
from US $107.37 |
||
|
52116A
|
52116A
52116-53050 Support, Front Bumper Side, Lh[08.2008 - 08.2010] GSE22 |
52116-53050 |
US $96.76 |
||
|
52116A
|
52116A
52116-53070 Support, Front Bumper Side, Lh[08.2010 -] GSE2# |
52116-53070 |
from US $76.15 |
||
|
52119A
|
52119A
52119-53913 Cover, Front BumperFRONT BUMPER [04.2006 - 07.2006] GSE22 LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
52119-53913 |
from US $541.87 |
||
|
52119A
|
52119A
52119-53926 Cover, Front BumperFRONT BUMPER [04.2006 - 08.2008] GSE22..GEN |
52119-53926 |
US $541.87 |
||
|
52119A
|
52119A
52119-53931
Cover, Front Bumper
[07.2006 - 08.2008] GSE22..GEN HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE22..GCC PHILIPPINE SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING; GSE22..GCC CHINA SPEC&HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
52119-53931 |
— | ||
|
52119A
|
52119A
52119-53932
Cover, Front Bumper
[07.2006 - 08.2008] GSE22..GEN CLEARANCE & BACK SONAR-WITH; GSE22..GCC PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC CHINA SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53932 |
— | ||
|
52119A
|
52119A
52119-53944 Cover, Front BumperFRONT BUMPER [08.2008 - 08.2010] GSE22..GCC PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC CHINA SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GEN CLEARANCE & BACK SONAR-WITH |
52119-53944 |
US $503.08 |
||
|
52119A
|
52119A
52119-53952 Cover, Front BumperFRONT BUMPER [08.2008 - 08.2010] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC CHINA SPEC |
52119-53952 |
US $713.44 |
||
|
52119A
|
52119A
52119-53978
Cover, Front Bumper
[08.2010 - 04.2013] GSE20 CHINA SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GEN CLEARANCE & BACK SONAR-WITH; GSE22..GCC PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC BRAZIL SPEC&CLEARANCE & BACK SONAR-WITH |
52119-53978 |
— | ||
|
52119A
|
52119A
52119-53984
Cover, Front Bumper
[08.2010 - 04.2013] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC; GSE20 CHINA SPEC |
52119-53984 |
— | ||
|
52129B
|
52129B
52129-53902 Cover, Front Bumper, LowerFRONT BUMPER, LOWER [04.2006 - 08.2008] GSE22 |
52129-53902 |
from US $5.24 |
||
|
52129B
|
52129B
52129-53904 Cover, Front Bumper, LowerFRONT BUMPER, LOWER [08.2008 - 08.2010] GSE22 |
52129-53904 |
from US $5.89 |
||
|
52129B
|
52129B
52129-53909 Cover, Front Bumper, Lower[08.2010 - 04.2013] GSE2# |
52129-53909 |
US $5.09 |
||
|
52131A
|
52131A
52131-53040 Reinforcement, Front Bumper[04.2006 - 08.2008] GSE22..GEN |
52131-53040 |
from US $284.27 |
||
|
52437
|
52437
52437-53010 Cover, Front Bumper Guard, Rh[04.2006 - 08.2008] GSE22 |
52437-53010 |
from US $9.46 |
||
|
52437
|
52437
52437-53020 Cover, Front Bumper Guard, Rh[08.2008 - 08.2010] GSE22 |
52437-53020 |
from US $9.46 |
||
|
52438
|
52438
52438-53010 Cover, Front Bumper Guard, Lh[04.2006 - 08.2008] GSE22 |
52438-53010 |
from US $9.07 |
||
|
52438
|
52438
52438-53020 Cover, Front Bumper Guard, Lh[08.2008 - 08.2010] GSE22 |
52438-53020 |
from US $8.07 |
||
|
52535
|
52535
52535-53010
Retainer, Front Bumper Side, Rh
[04.2006 - 02.2008] GSE22 |
52535-53010 |
— | ||
| replacement | |||||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[04.2006 - 02.2008] GSE22 |
52535-53011 |
from US $33.70 |
||
|
52535
|
52535
52535-53011 Retainer, Front Bumper Side, Rh[03.2008 - 08.2008] GSE22 |
52535-53011 |
from US $33.70 |
||
|
52535C
|
52535C
52535-50060 Retainer, Front Bumper Side[04.2006 - 08.2008] GSE22 |
52535-50060 |
from US $3.65 |
||
|
52536
|
52536
52536-53010
Retainer, Front Bumper Side, Lh
[04.2006 - 02.2008] GSE22 |
52536-53010 |
— | ||
| replacement | |||||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[04.2006 - 02.2008] GSE22 |
52536-53011 |
from US $34.46 |
||
|
52536
|
52536
52536-53011 Retainer, Front Bumper Side, Lh[03.2008 - 08.2008] GSE22 |
52536-53011 |
from US $34.46 |
||
|
52541
|
52541
52541-53010 Protector, Front Bumper[04.2006 - 04.2008] GSE22 |
52541-53010 |
from US $5.99 |
||
|
52611
|
52611
52611-53050 Absorber, Front Bumper Energy[04.2006 - 08.2008] GSE22..GEN |
52611-53050 |
from US $71.80 |
||
|
52611
|
52611
52611-53090 Absorber, Front Bumper Energy[08.2008 - 08.2010] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC CHINA SPEC; GSE22..GCC CHINA SPEC&CLEARANCE & BACK SONAR-WITH |
52611-53090 |
from US $55.97 |
||
|
52611
|
52611
52611-53130 Absorber, Front Bumper Energy[08.2010 - 04.2013] GSE22..GEN; GSE22..GCC PHILIPPINE SPEC; GSE22..GCC BRAZIL SPEC; GSE20 CHINA SPEC; GSE20 CHINA SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH; GSE22..GCC BRAZIL SPEC&CLEARANCE & BACK SONAR-WITH |
52611-53130 |
US $132 |
||
|
53112E
|
53112E
53112-53010 Grille, Radiator, Lower No.1[04.2006 - 08.2008] GSE22 |
53112-53010 |
US $68.64 |
||
|
53112E
|
53112E
53113-53010 Grille, Radiator, Lower No.1[08.2008 - 08.2010] GSE22 |
53113-53010 |
US $71.20 |
||
|
53112E
|
53112E
53113-53020 Grille, Radiator, Lower No.1[08.2010 - 04.2013] GSE2# |
53113-53020 |
from US $73.96 |
||
|
53119E
|
53119E
53119-53020 Protector, Radiator Grille[04.2006 - 06.2006] GSE22 |
53119-53020 |
US $9.61 |
||
| replacement | |||||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[04.2006 - 06.2006] GSE22 |
53119-53021 |
from US $7.71 |
||
|
53119E
|
53119E
53119-53021 Protector, Radiator Grille[06.2006 - 08.2008] GSE22 |
53119-53021 |
from US $7.71 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[09.2006 - 08.2008] GSE22 |
53879-50020 |
from US $4.64 |
||
|
53879H
|
53879H
53879-58010 Retainer, Front Fender Liner[04.2006 - 09.2006] GSE22 |
53879-58010 |
from US $3.24 |
||
|
4774950090
|
4774950090
47749-50090 Clip, Pin Hold |
47749-50090 |
from US $0.51 |
||
|
4774958010
|
4774958010
47749-58010 Clip, Pin Hold |
47749-58010 |
from US $0.86 |
||
|
9011910928
|
9011910928
90119-10928 BOLT WWASHER |
90119-10928 |
US $2.15 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.09 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9046707146
|
9046707146
90467-07146 Clip |
90467-07146 |
from US $1.50 |
||
