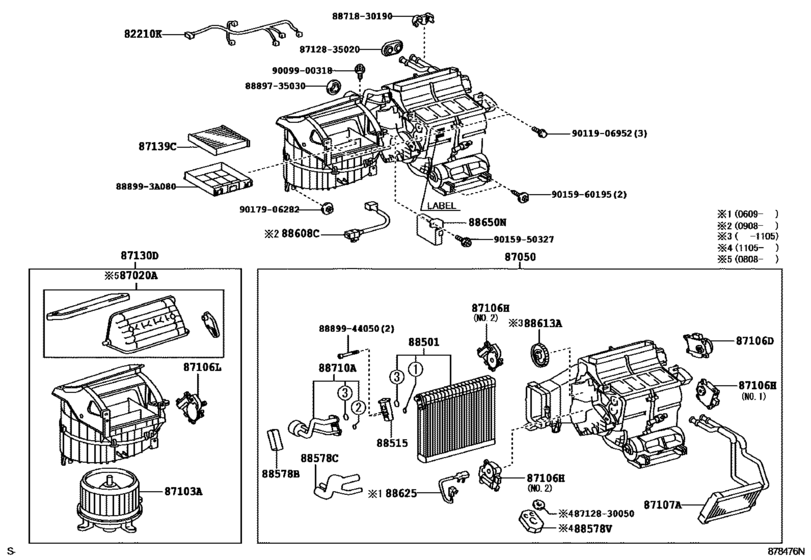

Heating & Air Conditioning - Cooler Unit ([04.2006 - ] (0604- )GEN) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82210-3A211
Harness Assy, Air Conditioner
[04.2006 - 09.2006] GSE22..GEN LABEL=87050-30110 |
82210-3A211 |
— | ||
|
82210K
|
82210K
82212-30012 Harness Assy, Air Conditioner[09.2006 - 01.2007] GSE22..GEN |
82212-30012 |
US $225.68 |
||
| replacement | |||||
|
82210K
|
82210K
82212-30014
Harness Assy, Air Conditioner
[09.2006 - 01.2007] GSE22..GEN |
82212-30014 |
— | ||
|
82210K
|
82210K
82212-30013 Harness Assy, Air Conditioner[02.2007 - 08.2008] GSE22..GEN |
82212-30013 |
US $155.79 |
||
| replacement | |||||
|
82210K
|
82210K
82212-30014
Harness Assy, Air Conditioner
[02.2007 - 08.2008] GSE22..GEN |
82212-30014 |
— | ||
|
87020A
|
87020A
87020-30010 Damper Assy, Heater AirHEATER AIR [08.2008 - 08.2010] GSE22..GEN |
87020-30010 |
US $30.41 |
||
|
87050
|
87050
87050-30110 Radiator Assy, Air Conditioner[04.2006 - 09.2006] GSE22..GEN LABEL=87050-30110 |
87050-30110 |
US $1,437.07 |
||
|
87050
|
87050
87050-30160 Radiator Assy, Air Conditioner[09.2006 - 02.2007] GSE22..GEN LABEL=87050-30160 |
87050-30160 |
US $1,645.28 |
||
| replacement | |||||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[09.2006 - 02.2007] GSE22..GEN LABEL=87050-30160 |
87050-30212 |
US $1,090.59 |
||
|
87050
|
87050
87050-30210 Radiator Assy, Air Conditioner[01.2008 - 08.2008] GSE22..GEN |
87050-30210 |
US $1,377.38 |
||
| replacement | |||||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[01.2008 - 08.2008] GSE22..GEN |
87050-30212 |
US $1,090.59 |
||
|
87050
|
87050
87050-30211 Radiator Assy, Air Conditioner[05.2011 -] GSE22..GEN |
87050-30211 |
US $1,147.33 |
||
| replacement | |||||
|
87050
|
87050
87050-30212 Radiator Assy, Air Conditioner[05.2011 -] GSE22..GEN |
87050-30212 |
US $1,090.59 |
||
|
87103A
|
87103A
87103-30400
Motor Sub-Assy, Cooling Unit, W/fan
[04.2006 - 08.2008] GSE22..GEN |
87103-30400 |
— | ||
| replacement | |||||
|
87103A
|
87103A
87103-30401 Motor Sub-Assy, Cooling Unit, W/fan[04.2006 - 08.2008] GSE22..GEN |
87103-30401 |
US $335.46 |
||
|
87103A
|
87103A
87103-30401 Motor Sub-Assy, Cooling Unit, W/fan[11.2010 -] GSE22..GEN |
87103-30401 |
US $335.46 |
||
|
87106D
|
87106D
87106-30440
Servo Sub-Assy, Damper, No.1
[04.2006 - 08.2008] GSE22 |
87106-30440 |
— | ||
|
87106H
|
87106H
87106-30430
Servo Sub-Assy, Damper(For Airmix)
[04.2006 - 08.2008] GSE22 NO.1 |
87106-30430 |
— | ||
|
87106H
|
87106H
87106-30450
Servo Sub-Assy, Damper(For Airmix)
[04.2006 - 08.2008] GSE22 NO.2 |
87106-30450 |
— | ||
|
87106L
|
87106L
87106-30470
Servo Sub-Assy, Damper
[04.2006 - 08.2008] GSE22..GEN |
87106-30470 |
— | ||
|
87107A
|
87107A
87107-30560
Unit Sub-Assy, Heater Radiator
[04.2006 - 08.2008] GSE22 |
87107-30560 |
— | ||
|
87130D
|
87130D
87130-30790
Blower Assy
[04.2006 - 06.2008] GSE22..GEN |
87130-30790 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-30791
Damper Assy, Heater Air
[04.2006 - 06.2008] GSE22..GEN |
87130-30791 |
— | ||
|
87130D
|
87130D
87130-30791
Damper Assy, Heater Air
[06.2008 - 08.2008] GSE22..GEN |
87130-30791 |
— | ||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[04.2006 - 08.2008] GSE22 *393 |
87139-30040 |
from US $33.60 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[04.2006 - 08.2008] GSE22 *393 |
87139-YZZ45 |
US $121.58 |
||
|
87139C
|
87139C
87139-50060
Filter, Clean Air (Charcoal)
[04.2006 - 08.2008] GSE22 DEODORANT FILTER |
87139-50060 |
— | ||
| replacement | |||||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[04.2006 - 08.2008] GSE22 DEODORANT FILTER |
87139-50100 |
from US $67.20 |
||
|
87139C
|
87139C
87139-52040 Filter, Clean Air[08.2012 - 04.2013] GSE2# *393 |
87139-52040 |
from US $33.60 |
||
|
88501
|
88501
88501-3A060
Evaporator Sub-Assy, Cooler, No.1
[04.2006 - 09.2006] GSE22..GEN LABEL=87050-30110 |
88501-3A060 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[04.2006 - 09.2006] GSE22..GEN LABEL=87050-30110 |
88501-3A161 |
US $449.55 |
||
|
88501
|
88501
88501-3A110
Evaporator Sub-Assy, Cooler, No.1
[09.2006 - 01.2008] GSE22..GEN LABEL=87050-30160; GSE22..GCC LABEL=87050-30180 |
88501-3A110 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[09.2006 - 01.2008] GSE22..GEN LABEL=87050-30160; GSE22..GCC LABEL=87050-30180 |
88501-3A161 |
US $449.55 |
||
|
88501
|
88501
88501-3A160
Evaporator Sub-Assy, Cooler, No.1
[01.2008 - 08.2008] GSE22 |
88501-3A160 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[01.2008 - 08.2008] GSE22 |
88501-3A161 |
US $449.55 |
||
|
88501
|
88501
88501-3A161 Evaporator Sub-Assy, Cooler, No.1[05.2011 -] GSE2# |
88501-3A161 |
US $449.55 |
||
|
88515
|
88515
88515-28180 Valve, Cooler Expansion[04.2006 - 08.2008] GSE22 |
88515-28180 |
from US $119.20 |
||
|
88515
|
88515
88515-30780 Valve, Cooler Expansion[05.2011 -] GSE2# |
88515-30780 |
from US $100.07 |
||
|
88578B
|
88578B
88578-30830
Packing, Cooling Unit, No.1
[04.2006 - 08.2008] GSE22..GEN |
88578-30830 |
— | ||
|
88578C
|
88578C
88578-30840
Packing, Cooling Unit, No.2
[04.2006 - 01.2008] GSE22 |
88578-30840 |
— | ||
|
88578V
|
88578V
88578-30870
Packing, Cooling Unit, No.2
[05.2011 -] GSE2# |
88578-30870 |
— | ||
|
88608C
|
88608C
88608-3A170
Harness Sub-Assy, Wiring Air Conditioner
[08.2009 - 08.2010] GSE22..GEN |
88608-3A170 |
— | ||
|
88613A
|
88613A
88613-30010
Lever, Cooler Control, No.1
[04.2006 - 08.2008] GSE22 |
88613-30010 |
— | ||
|
88625
|
88625
88620-30020 Thermistor, Cooler, No.1[09.2006 - 08.2008] GSE22 |
88620-30020 |
US $23.67 |
||
|
88650N
|
88650N
88650-53110
Amplifier Assy, Air Conditioner
[04.2006 - 05.2006] GSE22 P/N LABEL=8865053110 |
88650-53110 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53111
Amplifier Assy, Air Conditioner
[04.2006 - 05.2006] GSE22 P/N LABEL=8865053110 |
88650-53111 |
— | ||
|
88650N
|
88650N
88650-53111
Amplifier Assy, Air Conditioner
[05.2006 - 09.2006] GSE22..GEN P/N LABEL=8865053111 |
88650-53111 |
— | ||
|
88650N
|
88650N
88650-53112
Amplifier Assy, Air Conditioner
[09.2006 - 08.2007] GSE22..GEN |
88650-53112 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[09.2006 - 08.2007] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53120
Amplifier Assy, Air Conditioner
[04.2006 - 05.2006] GSE22 SEAT HEATER-HEAT & COOL,P/N LABEL=8865053120 |
88650-53120 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53121
Amplifier Assy, Air Conditioner
[04.2006 - 05.2006] GSE22 SEAT HEATER-HEAT & COOL,P/N LABEL=8865053120 |
88650-53121 |
— | ||
|
88650N
|
88650N
88650-53121
Amplifier Assy, Air Conditioner
[05.2006 - 09.2006] GSE22..GEN SEAT HEATER-HEAT & COOL,P/N LABEL=8865053121 |
88650-53121 |
— | ||
|
88650N
|
88650N
88650-53122
Amplifier Assy, Air Conditioner
[09.2006 - 08.2007] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53122 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[09.2006 - 08.2007] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53170
Amplifier Assy, Air Conditioner
[08.2007 - 01.2008] GSE22..GEN |
88650-53170 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[08.2007 - 01.2008] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53171
Amplifier Assy, Air Conditioner
[02.2008 - 08.2008] GSE22..GEN |
88650-53171 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[02.2008 - 08.2008] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53180
Amplifier Assy, Air Conditioner
[08.2007 - 01.2008] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53180 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[08.2007 - 01.2008] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53181
Amplifier Assy, Air Conditioner
[02.2008 - 08.2008] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53181 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[02.2008 - 08.2008] GSE22..GEN SEAT HEATER-HEAT & COOL |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53210
Amplifier Assy, Air Conditioner
[08.2008 - 08.2009] GSE22..GEN |
88650-53210 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[08.2008 - 08.2009] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53220
Amplifier Assy, Air Conditioner
[08.2008 - 08.2009] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53220 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[08.2008 - 08.2009] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53290
Amplifier Assy, Air Conditioner
[08.2009 - 03.2010] GSE22..GEN |
88650-53290 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[08.2009 - 03.2010] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53291
Amplifier Assy, Air Conditioner
[04.2010 - 08.2010] GSE22..GEN |
88650-53291 |
— | ||
|
88650N
|
88650N
88650-53300
Amplifier Assy, Air Conditioner
[08.2009 - 05.2010] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53300 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[08.2009 - 05.2010] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53301
Amplifier Assy, Air Conditioner
[06.2010 - 08.2010] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53301 |
— | ||
|
88650N
|
88650N
88650-53330
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE22..GEN |
88650-53330 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53490
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE22..GEN |
88650-53490 |
— | ||
|
88650N
|
88650N
88650-53331
Amplifier Assy, Air Conditioner
[02.2011 - 08.2012] GSE22..GEN |
88650-53331 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53490
Amplifier Assy, Air Conditioner
[02.2011 - 08.2012] GSE22..GEN |
88650-53490 |
— | ||
|
88650N
|
88650N
88650-53340
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53340 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53500
Amplifier Assy, Air Conditioner
[08.2010 - 01.2011] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53500 |
— | ||
|
88650N
|
88650N
88650-53341
Amplifier Assy, Air Conditioner
[02.2011 - 08.2012] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53341 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-53500
Amplifier Assy, Air Conditioner
[02.2011 - 08.2012] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53500 |
— | ||
|
88650N
|
88650N
88650-53490
Amplifier Assy, Air Conditioner
[08.2012 -] GSE22..GEN |
88650-53490 |
— | ||
|
88650N
|
88650N
88650-53500
Amplifier Assy, Air Conditioner
[08.2012 -] GSE22..GEN FRONT SEAT-SEMIANILINE VENTILATED LEATHER |
88650-53500 |
— | ||
|
88710A
|
88710A
88710-3A260 Tube Assy, Air Conditioner[04.2006 - 08.2008] GSE22..GEN |
88710-3A260 |
US $100.46 |
||
|
88710A
|
88710A
88710-3A420 Tube Assy, Air Conditioner[05.2011 - 04.2013] GSE2# |
88710-3A420 |
from US $81.54 |
||
|
888993A080
|
888993A080
88899-3A080 Parts, Cooling Unit |
88899-3A080 |
from US $6.99 |
||
|
8712830050
|
8712830050
87128-30050
Grommet, Heater
|
87128-30050 |
— | ||
|
8712835020
|
8712835020
87128-35020
Grommet, Heater
|
87128-35020 |
— | ||
|
8871830190
|
8871830190
88718-30190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30190 |
— | ||
| replacement | |||||
|
8871830190
|
8871830190
88718-30130
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30130 |
— | ||
|
8889735030
|
8889735030
88897-35030
Grommet, (For Cooler Pipe)
|
88897-35030 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
from US $0.84 |
||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
