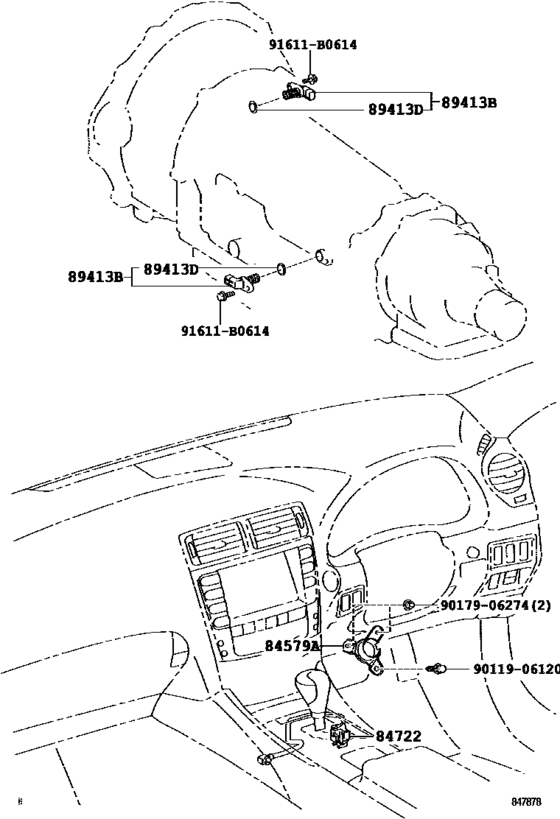

Overdrive & Electronic Controlled Transmission ([04.2006 - ] (0604- )GEN) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84579A
|
84579A
84579-30050 Bracket, Kick Down Switch[04.2006 - 08.2008] GSE22..GEN |
84579-30050 |
US $9.46 |
||
|
84722
|
84722
84722-20230 Switch, Transmission Control[04.2006 - 08.2008] GSE22..GEN |
84722-20230 |
US $29.27 |
||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[04.2006 - 08.2008] GSE22 |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[04.2006 - 08.2008] GSE22 |
89413-32011 |
from US $75.94 |
||
|
89413D
|
89413D
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[04.2006 - 08.2008] GSE22..GEN |
90301-11008 |
from US $0.90 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
