Component List LEXUS IS
Radio Receiver & Amplifier & Condenser ([04.2006 - 08.2009] (0604-0908))

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
86120	86120 86120-53350 Receiver Assy, Radio [04.2006 - 08.2008] GSE22..GEN PIONEER, ID=P2808	86120-53350	—
86120	86120 86120-53360 Receiver Assy, Radio [04.2006 - 08.2008] GSE22..GEN PIONEER, ID=P2807,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER	86120-53360	—
86120	86120 86120-53610 Receiver Assy, Radio [08.2008 - 07.2009] GSE22..GEN PIONEER, ID=P2850; GSE22..GCC PIONEER, ID=P2850,PHILIPPINE SPEC	86120-53610	—
86120	86120 86120-53620 Receiver Assy, Radio [08.2008 - 08.2009] GSE22..GCC PIONEER, ID=P2849,PHILIPPINE SPEC&AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER; GSE22..GEN PIONEER, ID=P2849,AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER	86120-53620	—
86120	86120 86120-53B80 Receiver Assy, Radio [08.2009 - 08.2010] GSE22..GEN PIONEER, ID=P2878	86120-53B80	—
86120	86120 86120-53E30 Receiver Assy, Radio [08.2010 - 08.2012] GSE22..GEN PIONEER, ID=P10062,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER	86120-53E30	—
86120	86120 86120-53E40 Receiver Assy, Radio [08.2010 - 08.2012] GSE22..GEN PIONEER, ID=P10063,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION	86120-53E40	—
86120	86120 86120-53F30 Receiver Assy, Radio [09.2011 - 04.2013] GSE22..GEN PIONEER, ID=P10124	86120-53F30	—
86190C	86190C 86190-53020 Adapter Assy, Stereo Jack, No.1 [04.2006 - 08.2008] GSE22	86190-53020	US $171.81
86190C	86190C 86190-53030 Adapter Assy, Stereo Jack, No.1 [08.2008 - 07.2009] GSE22	86190-53030	US $142.69
86190C	86190C 86190-53040 Adapter Assy, Stereo Jack, No.1 STEREO JACK, NO.1 [08.2009 - 08.2010] GSE22	86190-53040	US $113.57
86211	86211 86211-53020 Bracket, Radio, No.1 [04.2006 - 08.2008] GSE22	86211-53020	US $12.67
	replacement
86211	86211 86211-53030 Bracket, Radio, No.1 [04.2006 - 08.2008] GSE22	86211-53030	US $8.74
86211	86211 86211-53030 Bracket, Radio, No.1 [08.2008 - 08.2010] GSE22	86211-53030	US $8.74
86211	86211 86211-53070 Bracket, Radio, No.1 [08.2012 - 04.2013] GSE22..GEN AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER	86211-53070	US $8.74
86212	86212 86212-53020 Bracket, Radio, No.2 [04.2006 - 08.2008] GSE22	86212-53020	US $12.67
	replacement
86212	86212 86212-53030 Bracket, Radio, No.2 [04.2006 - 08.2008] GSE22	86212-53030	US $9.32
86212	86212 86212-53030 Bracket, Radio, No.2 [08.2008 - 08.2010] GSE22	86212-53030	US $9.32
86212	86212 86212-53070 Bracket, Radio, No.2 [08.2012 - 04.2013] GSE22..GEN AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE2# AUDIO-AM/FM DVD 13SPEAKER; GSE22..GCC PHILIPPINE SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER; GSE20 CHINA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER	86212-53070	US $8.74
86280	86280 86280-0W360 Amplifier Assy, Stereo Component [04.2006 - 08.2008] GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER	86280-0W360	US $2,572.32
86280	86280 86280-0W740 Amplifier Assy, Stereo Component [08.2012 -] GSE2# AUDIO-AM/FM DVD 5.1CH 14SPEAKER	86280-0W740	US $2,125.76
86280	86280 86280-0W790 Amplifier Assy, Stereo Component STEREO COMPONENT [08.2010 - 08.2012] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER	86280-0W790	US $1,683.89
86280	86280 86280-53110 Amplifier Assy, Stereo Component [04.2006 - 08.2008] GSE22	86280-53110	US $1,616.16
86280	86280 86280-53140 Amplifier Assy, Stereo Component [08.2009 - 08.2010] GSE22	86280-53140	—
86280	86280 86280-53150 Amplifier Assy, Stereo Component [08.2010 - 08.2012] GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION	86280-53150	—
	replacement
86280	86280 86280-53151 Amplifier Assy, Stereo Component [08.2010 - 08.2012] GSE2# AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION	86280-53151	US $2,111.20
86280	86280 86280-53160 Amplifier Assy, Stereo Component [08.2010 -] GSE22..GEN; GSE20 AUDIO-AM/FM CD-CHANGER 8SPEAKER(PIONEER)	86280-53160	US $1,616.16
86280	86280 86280-53210 Amplifier Assy, Stereo Component [08.2012 -] GSE2# AUDIO-AM/FM DVD 13SPEAKER	86280-53210	US $1,336.61
86285	86285 86285-53040 Bracket, Amplifier, No.1 [04.2006 - 08.2008] GSE22	86285-53040	US $14.71
86285	86285 86285-53050 Bracket, Amplifier, No.1 [04.2006 - 08.2008] GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER	86285-53050	US $13.98
86285	86285 86285-53060 Bracket, Amplifier, No.1 AMPLIFIER, NO.1 [08.2009 - 08.2010] GSE22	86285-53060	US $10.05
86285	86285 86285-53070 Bracket, Amplifier, No.1 AMPLIFIER, NO.1 [08.2010 - 08.2012] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER	86285-53070	US $9.32
86286	86286 86286-53040 Bracket, Amplifier, No.2 [04.2006 - 08.2008] GSE22	86286-53040	US $13.83
86286	86286 86286-53050 Bracket, Amplifier, No.2 [04.2006 - 08.2008] GSE22 AUDIO-MARK LEVINSON-AM/FM CD-CHANGER 14SPEAKER	86286-53050	US $14.56
86286	86286 86286-53080 Bracket, Amplifier, No.2 AMPLIFIER, NO.2 [08.2010 - 08.2012] GSE2# AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER	86286-53080	US $10.48
86286	86286 86286-53090 Bracket, Amplifier, No.2 AMPLIFIER, NO.2 [08.2009 - 08.2010] GSE22	86286-53090	US $11.94
86287B	86287B 86287-53010 Cover, Amplifier [04.2006 - 08.2008] GSE22	86287-53010	US $18.05
9015350010	9015350010 90153-50010 BOLT	90153-50010	from US $0.70
9017906274	9017906274 90179-06274 Nut	90179-06274	from US $0.70
9046710183	9046710183 90467-10183 Clip(For Luggage Compartment Trim Inner Cover)	90467-10183	from US $0.84
9167380616	9167380616 91673-80616 Bolt, W/washer	91673-80616	from US $0.64

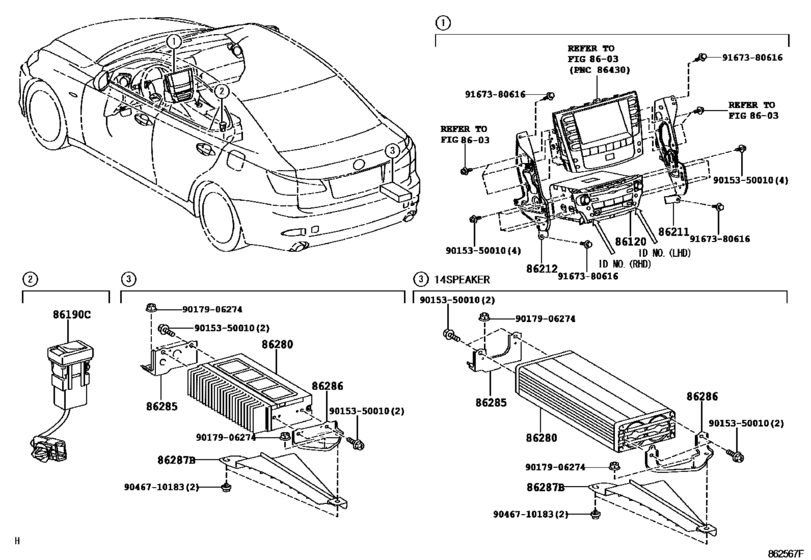

Radio Receiver & Amplifier & Condenser ([04.2006 - 08.2009] (0604-0908)) Diagram Toyota LEXUS IS General 18039311-937298

Radio Receiver & Amplifier & Condenser ([04.2006 - 08.2009] (0604-0908)) Diagram Toyota LEXUS IS General 18039311-937298
