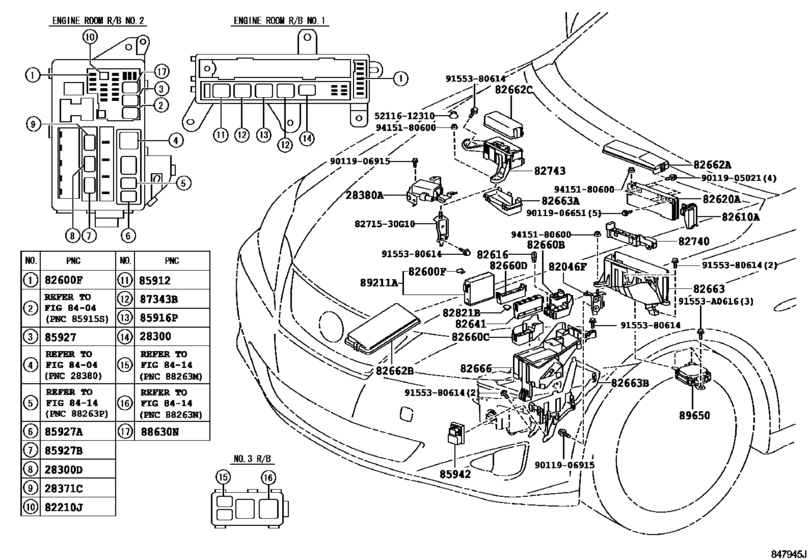

Switch & Relay & Computer ([04.2006 - ] ENGINE ROOM (0604- )GEN) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[04.2006 - 08.2008] 3GRFE..GSE22 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[04.2006 - 08.2008] 3GRFE..GSE22 |
28300-21020 |
from US $44.86 |
||
|
28300D
|
28300D
90987-02027 Relay[04.2006 - 08.2008] 3GRFE..GSE22 |
90987-02027 |
from US $47.11 |
||
|
28371C
|
28371C
90987-02027 Relay[04.2006 - 08.2008] 3GRFE..GSE22 |
90987-02027 |
from US $47.11 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[04.2006 - 08.2008] 3GRFE..GSE22 |
23080-31040 |
US $58.01 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[04.2006 - 08.2008] GSE22 |
82046-30100 |
US $14.41 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[04.2006 - 07.2006] GSE22 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2006 - 08.2008] GSE22 7.5A,MINI FUSE |
90982-09020 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2006 - 08.2008] GSE22 10A,MINI FUSE |
90982-09021 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2006 - 08.2008] GSE22 15A,MINI FUSE |
90982-09022 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2006 - 08.2008] GSE22 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2006 - 08.2008] GSE22 25A,MINI FUSE |
90982-09024 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2006 - 08.2008] GSE22 30A,MINI FUSE |
90982-09025 |
from US $0.76 |
||
|
82610A
|
82610A
82610-30130 Block Assy, Fuse[04.2006 - 08.2008] GSE22..GEN |
82610-30130 |
US $18.35 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[04.2006 - 08.2008] GSE22 |
82616-58010 |
from US $2.28 |
||
|
82620A
|
82620A
82620-30170 Block Assy, Fusible Link[04.2006 - 08.2008] GSE22 |
82620-30170 |
from US $81.30 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[04.2006 - 08.2008] GSE22 |
82641-30250 |
US $142.68 |
||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[04.2006 - 08.2008] GSE22 |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A10 Block Assy, Relay[04.2006 - 08.2008] GSE22 |
82660-30A10 |
US $21.69 |
||
|
82660D
|
82660D
82660-30A20 Block Assy, Relay[04.2006 - 08.2008] GSE22 |
82660-30A20 |
from US $13.83 |
||
|
82662A
|
82662A
82662-53090 Cover, Relay Block, Upper, No.1[04.2006 - 07.2006] GSE22 |
82662-53090 |
US $21.84 |
||
|
82662A
|
82662A
82662-53091 Cover, Relay Block, Upper, No.1[07.2006 - 08.2008] GSE22..GEN |
82662-53091 |
US $21.69 |
||
|
82662A
|
82662A
82662-53092 Cover, Relay Block, Upper, No.1[08.2008 - 08.2010] GSE22..GEN |
82662-53092 |
US $18.05 |
||
|
82662B
|
82662B
82662-53130 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [04.2006 - 02.2007] GSE22 |
82662-53130 |
US $51.30 |
||
|
82662B
|
82662B
82662-53131
Cover, Relay Block, Upper, No.2
[03.2007 - 08.2008] GSE22 |
82662-53131 |
— | ||
|
82662B
|
82662B
82662-53230
Cover, Relay Block, Upper, No.2
[08.2009 - 08.2010] GSE22 |
82662-53230 |
— | ||
|
82662C
|
82662C
82662-53110 Cover, Relay Block, Upper, No.3[04.2006 - 08.2008] GSE22 |
82662-53110 |
US $9.32 |
||
|
82663
|
82663
82663-53050 Cover, Relay Block, Lower[04.2006 - 08.2008] GSE22..GEN |
82663-53050 |
US $41.64 |
||
|
82663A
|
82663A
82663-30220 Cover, Relay Block, Lower, No.2[04.2006 - 08.2008] GSE22..GEN |
82663-30220 |
US $6.99 |
||
|
82663B
|
82663B
82663-30210 Cover, Relay Block, Lower, No.2[04.2006 - 08.2008] GSE22 |
82663-30210 |
from US $31.74 |
||
|
82666
|
82666
82666-30730 Holder, Connector[04.2006 - 08.2008] GSE22 |
82666-30730 |
US $50.67 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[04.2006 - 08.2008] GSE22 |
82740-30340 |
US $20.38 |
||
|
82743
|
82743
82743-30020 Block, Engine Room Relay, No.3[04.2006 - 08.2008] GSE22..GEN |
82743-30020 |
US $23 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[04.2006 - 08.2008] GSE22 |
82821-47090 |
US $0.15 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[04.2006 - 08.2008] GSE22 |
90987-04010 |
from US $47.21 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2006 - 08.2008] GSE22 |
90987-02025 |
from US $49.22 |
||
|
85927
|
85927
90987-02027 Relay[04.2006 - 08.2008] GSE22..GEN |
90987-02027 |
from US $47.11 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[04.2006 - 08.2008] GSE22 |
90987-04004 |
from US $47.21 |
||
|
85927B
|
85927B
90987-02027 Relay[04.2006 - 08.2008] GSE22 |
90987-02027 |
from US $47.11 |
||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[04.2006 - 08.2008] GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[04.2006 - 08.2008] GSE22 HEADLAMP-DISCHARGE WITH/AUTO LEVELING |
85942-58010 |
from US $92.45 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[10.2010 - 04.2013] GSE2#; GSE20 HEADLAMP-4,HALOGEN WITH/LEVELING |
85942-58010 |
from US $92.45 |
||
|
88630N
|
88630N
90987-02027 Relay[04.2006 - 08.2008] GSE22 |
90987-02027 |
from US $47.11 |
||
|
89211A
|
89211A
89211-53020 Computer, Multiplex Network Body[04.2006 - 08.2008] GSE22 |
89211-53020 |
US $342.41 |
||
|
89211A
|
89211A
89211-53030 Computer, Multiplex Network Body[08.2010 -] GSE2# |
89211-53030 |
US $227.14 |
||
|
89650
|
89650
89650-53010 Computer Assy, Power Steering[04.2006 - 08.2008] GSE22..GEN |
89650-53010 |
US $685.72 |
||
|
89650
|
89650
89650-53050 Computer Assy, Power Steering[08.2008 - 07.2009] GSE22..GEN |
89650-53050 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-53051 Computer Assy, Power SteeringPOWER STEERING [08.2008 - 07.2009] GSE22..GEN |
89650-53051 |
US $553.28 |
||
|
89650
|
89650
89650-53051 Computer Assy, Power SteeringPOWER STEERING [08.2009 - 08.2010] GSE22..GEN |
89650-53051 |
US $553.28 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $1.08 |
||
|
8271530G10
|
8271530G10
82715-30G10 Bracket,wiring Harness Clamp |
82715-30G10 |
US $6.99 |
||
|
5211612310
|
5211612310
52116-12310 Retainer, Front Bumper |
52116-12310 |
US $8.06 |
||
|
9011905021
|
9011905021
90119-05021 BOLT WWASHER |
90119-05021 |
US $1.08 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.68 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
