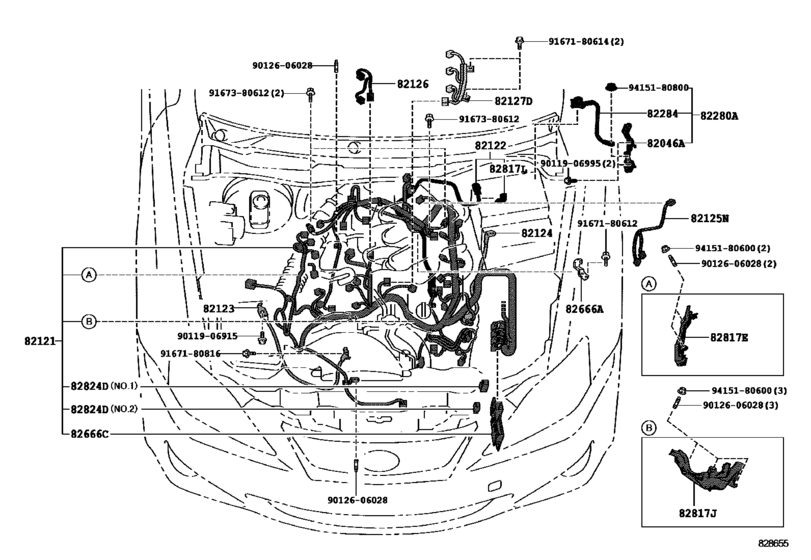

Wiring & Clamp ([08.2012 - ] ENGINE (1208- )GEN) Diagram Toyota LEXUS IS
- Year
- 2006 - 2013
- Sales region
- General
- Frame
- GSE22
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS300
- From
- 04.2006
- To
- 04.2013
- Vehicle Model
- IS300
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82046A
|
82046A
82046-53070 Wire Sub-Assy, Body Ground, No.1[08.2012 -] GSE22..GEN |
82046-53070 |
US $26.50 |
||
|
82121
|
82121
82121-53350
Wire, Engine
[04.2006 - 11.2007] GSE22..GEN |
82121-53350 |
— | ||
| replacement | |||||
|
82121
|
82121
82121-53351
Wire, Engine
[04.2006 - 11.2007] GSE22..GEN |
82121-53351 |
— | ||
|
82121
|
82121
82121-53351
Wire, Engine
[12.2007 - 08.2008] GSE22..GEN |
82121-53351 |
— | ||
|
82121
|
82121
82121-53352
Wire, Engine
[08.2010 -] GSE22..GEN |
82121-53352 |
— | ||
|
82122
|
82122
82122-22570 Wire, Engine, No.2[04.2006 - 08.2008] GSE22..GEN |
82122-22570 |
US $87.36 |
||
|
82123
|
82123
82123-30490 Wire, Engine, No.3[04.2006 - 08.2008] GSE22 |
82123-30490 |
US $32.47 |
||
|
82124
|
82124
82124-30290 Wire, Engine, No.4[04.2006 - 08.2008] GSE22..GEN |
82124-30290 |
US $68.72 |
||
|
82125N
|
82125N
82125-30530 Wire, Transmission[04.2006 - 08.2008] GSE22 |
82125-30530 |
US $26.91 |
||
|
82126
|
82126
82126-30030 Wire, EngineENGINE [04.2006 - 08.2008] GSE22 |
82126-30030 |
US $13.40 |
||
|
82127D
|
82127D
82127-30030 Wire, Engine, No.7ENGINE, NO.7 [04.2006 - 08.2008] GSE22 |
82127-30030 |
US $21.26 |
||
|
82280A
|
82280A
82280-53030 Wire Assy, Battery To Cowl Top Side[08.2012 -] GSE22..GEN |
82280-53030 |
US $68.72 |
||
|
82284
|
82284
82284-30010 Wire, Earth[04.2006 - 08.2008] GSE22..GEN |
82284-30010 |
US $59.64 |
||
|
82284
|
82284
82284-53040 Wire, Earth[08.2010 - 08.2012] GSE22..GEN |
82284-53040 |
US $57.22 |
||
|
82284
|
82284
82284-53080 Wire, Earth[08.2012 -] GSE22..GEN |
82284-53080 |
US $39.75 |
||
|
82666A
|
82666A
82666-30780 Holder, Connector[04.2006 - 08.2008] GSE22 |
82666-30780 |
US $5.82 |
||
|
82666C
|
82666C
82666-30740 Holder, Connector No.4[04.2006 - 08.2008] GSE22 |
82666-30740 |
US $17.47 |
||
|
82817E
|
82817E
82817-2A730 Protector, Wiring Harness, No.6[08.2008 - 08.2010] GSE22 |
82817-2A730 |
US $23.06 |
||
|
82817J
|
82817J
82817-30A80 Protector, Wiring Harness, No.7[08.2008 - 08.2010] GSE22 |
82817-30A80 |
US $23.44 |
||
|
82817L
|
82817L
82817-12860 Protector, Wiring Harness, No.1[04.2006 - 08.2008] GSE22..GEN |
82817-12860 |
US $1.02 |
||
|
82824D
|
82824D
82824-22080 Connector, Wiring Harness[04.2006 - 08.2008] GSE22 NO.2 |
82824-22080 |
US $20.68 |
||
|
82824D
|
82824D
82824-30180 Connector, Wiring Harness[04.2006 - 08.2008] GSE22 NO.1 |
82824-30180 |
US $5.53 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906995
|
9011906995
90119-06995 BOLT WWASHER |
90119-06995 |
US $1.08 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.64 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
