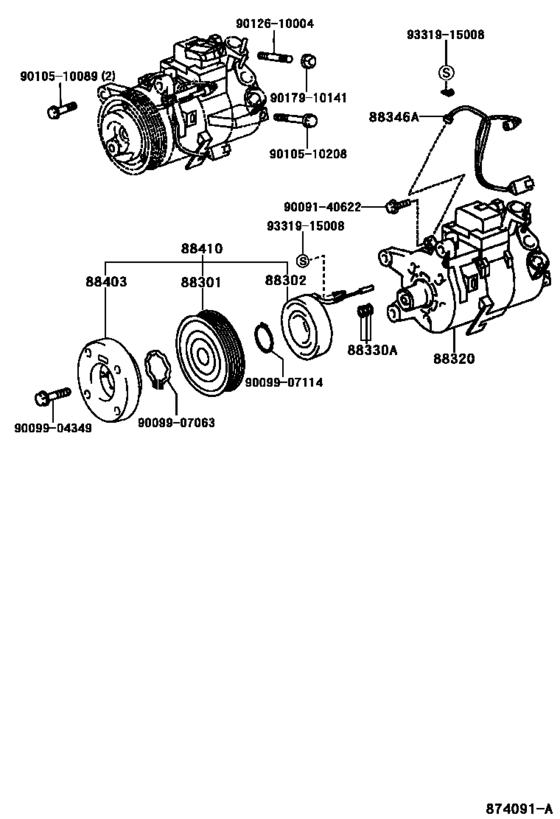

Heating & Air Conditioning - Compressor ([05.2000 - ] (0005- )) Diagram Toyota LEXUS IS
- Year
- 2000 - 2005
- Sales region
- U.S.A.
- Frame
- JCE10
- body
- SED
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- Model
- IS300
- From
- 05.2000
- To
- 07.2005
- Vehicle Model
- IS300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-2A030
Rotor Sub-Assy, Magnet Clutch
[05.2000 - 07.2001] JCE10 |
88412-2A030 |
— | ||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[05.2000 - 07.2001] JCE10 |
88411-2A030 |
US $71.29 |
||
|
88320
|
88320
88320-2A050
Compressor Assy, Cooler
[05.2000 - 05.2001] JCE10 |
88320-2A050 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-2A051
Compressor Assy, Cooler
[05.2000 - 05.2001] JCE10 |
88320-2A051 |
— | ||
|
88320
|
88320
88320-2A051
Compressor Assy, Cooler
[05.2001 - 07.2001] JCE10 |
88320-2A051 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2000 - 07.2001] JCE10 |
88335-14020 |
from US $1.25 |
||
|
88346A
|
88346A
88346-2A010
Sensor,compressor
[05.2000 - 07.2001] JCE10 |
88346-2A010 |
— | ||
|
88403
|
88403
88403-53010
Hub Sub-Assy, Magnet Clutch
[05.2000 - 07.2001] JCE10 |
88403-53010 |
— | ||
|
88410
|
88410
88410-53020 Clutch Assy, Magnet[05.2000 - 07.2001] JCE10 |
88410-53020 |
US $585.31 |
||
|
9009140622
|
9009140622
90091-40622
New Genuine Part
|
90091-40622 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $0.95 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $4.54 |
||
|
9010510208
|
9010510208
90105-10208 New Genuine Part |
90105-10208 |
US $4.27 |
||
|
9012610004
|
9012610004
90126-10004 New Genuine Part |
90126-10004 |
US $10.73 |
||
|
9017910141
|
9017910141
90179-10141
Nut(For Counter Gear Shaft)
|
90179-10141 |
— | ||
| replacement | |||||
|
9017910141
|
9017910141
90179-10132 Nut |
90179-10132 |
from US $0.89 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.34 |
||
