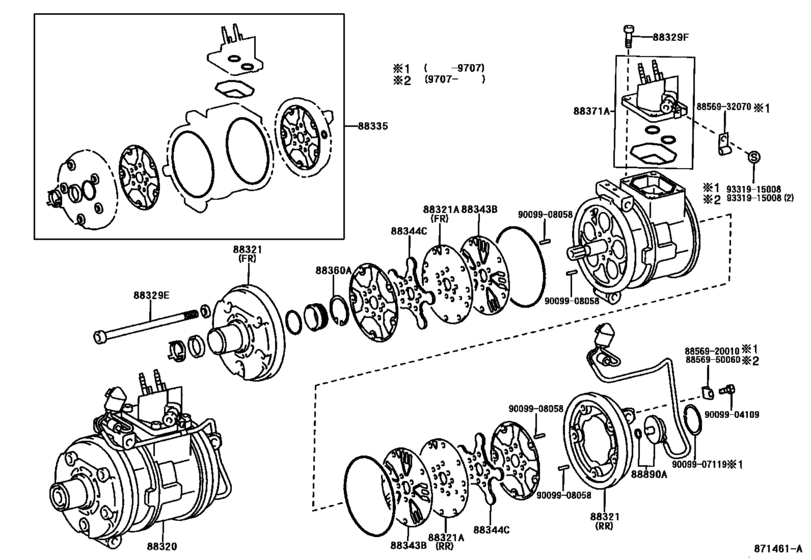

Heating & Air Conditioning - Compressor ([10.1994 - ] (9410- )) Diagram Toyota LEXUS LS
- Year
- 1994 - 1997
- Sales region
- U.S.A.
- Frame
- UCF20
- ENGINE
- 1UZFE
- DESTINATION
- USA
- Model
- LS400
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
- Vehicle Model
- LS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-50060
Compressor Assy, Cooler
[10.1994 - 07.1997] UCF20 |
88320-50060 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-50061
Compressor Assy, Cooler
[10.1994 - 07.1997] UCF20 |
88320-50061 |
— | ||
|
88321
|
88321
88321-60020
Head, Cooler Compressor Cylinder
[10.1994 -] UCF20 FRONT |
88321-60020 |
— | ||
|
88321
|
88321
88322-50030
Head, Cooler Compressor Cylinder
[10.1994 -] UCF20 REAR |
88322-50030 |
— | ||
|
88321A
|
88321A
88341-30040
Plate Sub-Assy, Valve
[10.1994 -] UCF20 FRONT |
88341-30040 |
— | ||
|
88321A
|
88321A
88342-30270
Plate Sub-Assy, Valve
[10.1994 -] UCF20 REAR |
88342-30270 |
— | ||
|
88329E
|
88329E
88329-30010
Bolt, Through
[10.1994 -] UCF20 |
88329-30010 |
— | ||
|
88329F
|
88329F
90099-04924
Bolt, Service Valve
[10.1994 -] UCF20 |
90099-04924 |
— | ||
|
88335
|
88335
88335-30360 Gasket Kit, OverhaulOVERHAUL [10.1994 -] UCF20 |
88335-30360 |
US $30.38 |
||
|
88343B
|
88343B
88343-30280
Reed, Suction Valve
[10.1994 -] UCF20 |
88343-30280 |
— | ||
|
88344C
|
88344C
88344-30010
Reed, Discharge Valve
[10.1994 -] UCF20 |
88344-30010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[10.1994 -] UCF20 |
90096-90022 |
— | ||
|
88371A
|
88371A
88371-50050
Valve, Suction
[10.1994 - 07.1997] UCF20 |
88371-50050 |
— | ||
|
88890A
|
88890A
88336-50040
Pick Up, Assy
[10.1994 -] UCF20 |
88336-50040 |
— | ||
|
8856920010
|
8856920010
88569-20010
Clamp (for Cooler Relay)
|
88569-20010 |
— | ||
|
8856932070
|
8856932070
88569-32070
Clamp (for Cooler Relay)
|
88569-32070 |
— | ||
|
8856950060
|
8856950060
88569-50060
Clamp (for Cooler Relay)
|
88569-50060 |
— | ||
|
9009904109
|
9009904109
90099-04109
New Genuine Part
|
90099-04109 |
— | ||
|
9009907119
|
9009907119
90099-07119
Ring, Compressor Seal Plate Snap
|
90099-07119 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.34 |
||
