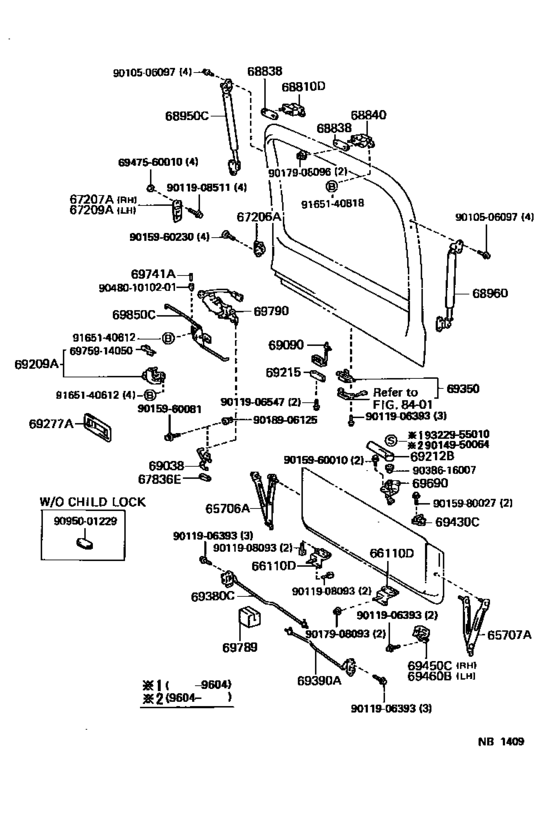

Back Door Lock & Hinge ([11.1995 - ] (9511- )) Diagram Toyota LEXUS LX
- Year
- 1995 - 1998
- Sales region
- U.S.A.
- Frame
- FZJ80
- ENGINE
- 1FZFE
- TRANSMISSION
- ATM
- Model
- LX450
- From
- 11.1995
- To
- 01.1998
- Vehicle Model
- LX450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65706A
|
65706A
65706-60012 Stay Sub-Assy, Tail Gate, Rh[11.1995 - 01.1998] FZJ80 |
65706-60012 |
US $87.36 |
||
|
65707A
|
65707A
65707-60012 Stay Sub-Assy, Tail Gate, Lh[11.1995 - 01.1998] FZJ80 |
65707-60012 |
US $101.68 |
||
|
66110D
|
66110D
66110-60010 Hinge Assy, Tail Gate[11.1995 - 01.1998] FZJ80 |
66110-60010 |
US $50.42 |
||
|
67206A
|
67206A
67206-60030
Bracket Sub-Assy, Back Door Stopper
[11.1995 - 01.1998] FZJ80 |
67206-60030 |
— | ||
|
67207A
|
67207A
67207-60021 Stopper Sub-Assy, Back Door, Rh[11.1995 - 01.1998] FZJ80 |
67207-60021 |
US $23.76 |
||
|
67209A
|
67209A
67208-60021 Stopper Sub-Assy, Back Door, Lh[11.1995 - 01.1998] FZJ80 |
67208-60021 |
US $25.68 |
||
|
67836E
|
67836E
67836-14010 Cover, Rear Door Lock Child Protection, Rh[11.1995 - 01.1998] FZJ80 |
67836-14010 |
US $4.48 |
||
|
68810D
|
68810D
68810-60010 Hinge Assy, Back Door, Rh[11.1995 - 01.1998] FZJ80 |
68810-60010 |
US $29.05 |
||
|
68838
|
68838
68838-20020 Pad, Back Door Hinge[11.1995 - 01.1998] FZJ80 |
68838-20020 |
US $3.32 |
||
|
68840
|
68840
68810-60010 Hinge Assy, Back Door, Rh[11.1995 - 01.1998] FZJ80 |
68810-60010 |
US $29.05 |
||
|
68950C
|
68950C
68950-60032 Stay Assy, Back Door, Rh[11.1995 - 05.1996] FZJ80 |
68950-60032 |
from US $98.32 |
||
|
68950C
|
68950C
68950-60040 Stay Assy, Back Door, Rh[05.1996 - 01.1998] FZJ80 |
68950-60040 |
from US $116.81 |
||
|
68960
|
68960
68960-60022 Stay Assy, Back Door, Lh[11.1995 - 05.1996] FZJ80 |
68960-60022 |
from US $93.80 |
||
|
68960
|
68960
68960-60030 Stay Assy, Back Door, Lh[05.1996 - 01.1998] FZJ80 |
68960-60030 |
from US $116.81 |
||
|
69038
|
69038
69038-60010 Protector Sub-Assy, Back Door Child[11.1995 - 01.1998] FZJ80 |
69038-60010 |
US $14.41 |
||
|
69090
|
69090
69090-60010 Handle Assy, Back Door, Outside[11.1995 - 01.1998] FZJ80 |
69090-60010 |
from US $36.54 |
||
|
69209A
|
69209A
69209-60020-E0
Handle Sub-Assy, Back Door, Inside
[11.1995 - 01.1998] FZJ80 OAK,TRIM4# |
69209-60020-E0 |
— | ||
|
69212B
|
69212B
69212-60030 Handle, Back Door Inside[04.1996 - 01.1998] FZJ80 |
69212-60030 |
from US $10.32 |
||
|
69212B
|
69212B
69212-90K00
Handle, Back Door Inside
[11.1995 - 04.1996] FZJ80 |
69212-90K00 |
— | ||
| replacements | |||||
|
69212B
|
69212B
69212-60030 Handle, Back Door Inside[11.1995 - 04.1996] FZJ80 |
69212-60030 |
from US $10.32 |
||
|
69212B
|
69212B
90149-50064 SCREW[11.1995 - 04.1996] FZJ80 |
90149-50064 |
from US $0.70 |
||
|
69215
|
69215
69215-60020 Handle, Back Door Outside[11.1995 - 01.1998] FZJ80 |
69215-60020 |
from US $6.49 |
||
|
69277A
|
69277A
69277-91701-E1 Bezel, Back Door Inside Handle[11.1995 - 01.1998] FZJ80 OAK,TRIM4# |
69277-91701-E1 |
US $11.79 |
||
|
69350
|
69350
69350-60040 Lock Assy, Back Door[11.1995 - 01.1998] FZJ80 |
69350-60040 |
from US $139.40 |
||
|
69380C
|
69380C
69380-60020 Lock Assy, Back Door, Lower[11.1995 - 01.1998] FZJ80 |
69380-60020 |
US $78.62 |
||
|
69390A
|
69390A
69390-60030 Lock Assy, Tail Gate, Lower Lh[11.1995 - 01.1998] FZJ80 |
69390-60030 |
from US $83.52 |
||
|
69430C
|
69430C
69430-60020 Striker Assy, Back Door Lock[11.1995 - 01.1998] FZJ80 |
69430-60020 |
US $20.79 |
||
|
69450C
|
69450C
69450-60011 Striker Assy, Back Door Lock, Rh[11.1995 - 01.1998] FZJ80 |
69450-60011 |
US $21.67 |
||
|
69460B
|
69460B
69460-60011 Striker Assy, Back Door Lock, Lh[11.1995 - 01.1998] FZJ80 |
69460-60011 |
US $21.67 |
||
|
69690
|
69690
69690-60010 Control Assy, Back Door Remote[11.1995 - 01.1998] FZJ80 |
69690-60010 |
US $32.50 |
||
|
69741A
|
69741A
69741-28010-C1 Knob, Back Door Lock Control (Black)[11.1995 - 01.1998] FZJ80 BLACK,TRIM4# |
69741-28010-C1 |
from US $2.36 |
||
|
69789
|
69789
69789-60010 Silencer, Back Door Lock Control Link[11.1995 - 01.1998] FZJ80 |
69789-60010 |
US $5.07 |
||
|
69790
|
69790
69790-60060 Control Assy, Back Door Lock[11.1995 - 01.1998] FZJ80 |
69790-60060 |
from US $214.40 |
||
|
69850C
|
69850C
69850-60010 Link Assy, Back Door Inside Locking[11.1995 - 01.1998] FZJ80 |
69850-60010 |
US $32.18 |
||
|
6947560010
|
6947560010
69475-60010 Retainer, Side Door Down Stopper |
69475-60010 |
US $2.04 |
||
|
6975914050
|
6975914050
69759-14050 Snap(For Rear Door Inside Handle) |
69759-14050 |
from US $2.13 |
||
|
9010506097
|
9010506097
90105-06097
BOLT
|
90105-06097 |
— | ||
| replacement | |||||
|
9010506097
|
9010506097
90119-06871 BOLT WWASHER |
90119-06871 |
US $1.08 |
||
|
9011906393
|
9011906393
90119-06393 Bolt(For Suspension Control Oil Cooler) |
90119-06393 |
US $1.43 |
||
|
9011906547
|
9011906547
90119-06547 New Genuine Part |
90119-06547 |
US $1.43 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.23 |
||
|
9011908511
|
9011908511
90119-08511 BOLT |
90119-08511 |
US $6.09 |
||
|
9014950064
|
9014950064
90149-50064 SCREW |
90149-50064 |
from US $0.70 |
||
|
9015960010
|
9015960010
90159-60010 SCREW |
90159-60010 |
US $1.25 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9015960230
|
9015960230
90159-60230
New Genuine Part
|
90159-60230 |
— | ||
|
9015980027
|
9015980027
90159-80027 New Genuine Part |
90159-80027 |
US $2.87 |
||
|
9017908093
|
9017908093
90179-08093 New Genuine Part |
90179-08093 |
US $3.06 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.40 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9038616007
|
9038616007
90386-16007 BUSH |
90386-16007 |
from US $1.97 |
||
|
9095001229
|
9095001229
90950-01229 Plug, Hole(For Rear Door Panel) |
90950-01229 |
US $2.80 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.19 |
||
|
9322955010
|
9322955010
93229-55010 New Genuine Part |
93229-55010 |
US $0.44 |
||
|
904801010201
|
904801010201
90480-10102-01 Grommet(For Rear Door Panel Lock Button) |
90480-10102-01 |
from US $1.21 |
||
