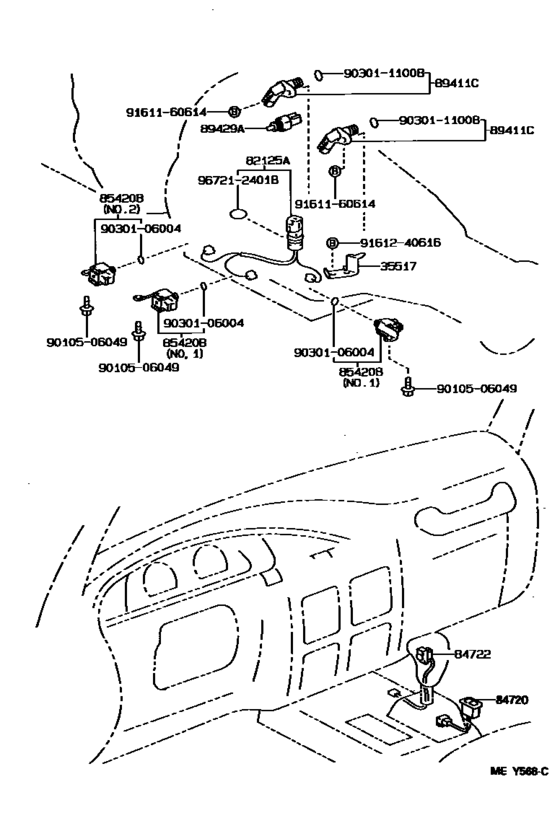

Overdrive & Electronic Controlled Transmission ([11.1995 - ] (9511- )) Diagram Toyota LEXUS LX
- Year
- 1995 - 1998
- Sales region
- U.S.A.
- Frame
- FZJ80
- ENGINE
- 1FZFE
- TRANSMISSION
- ATM
- Model
- LX450
- From
- 11.1995
- To
- 01.1998
- Vehicle Model
- LX450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35517
|
35517
35517-30010 Plate, Transmission Wire Lock[11.1995 - 01.1998] FZJ80 |
35517-30010 |
US $4.37 |
||
|
82125A
|
82125A
82125-30400 Wire, Transmission[11.1995 - 01.1998] FZJ80 |
82125-30400 |
US $16.07 |
||
|
84720
|
84720
84720-60060 Switch Assy, Pattern Select[11.1995 - 01.1998] FZJ80 |
84720-60060 |
US $72.16 |
||
|
84722
|
84722
84722-36050-C0 Switch, Transmission ControlTRANSMISSION CONTROL [11.1995 - 01.1998] FZJ80 BLACK,TRIM4# |
84722-36050-C0 |
US $68.27 |
||
|
85420B
|
85420B
85420-30200 Solenoid Assy, Transmission[11.1995 - 01.1998] FZJ80 NO.1 |
85420-30200 |
US $216.94 |
||
| replacement | |||||
|
85420B
|
85420B
85420-21090 Solenoid Assy, Transmission[11.1995 - 01.1998] FZJ80 NO.1 |
85420-21090 |
from US $153.82 |
||
|
85420B
|
85420B
85420-30220 Solenoid Assy, Transmission[11.1995 - 01.1998] FZJ80 NO.3 |
85420-30220 |
US $218.40 |
||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[11.1995 - 01.1998] FZJ80 NO.3 |
35250-50030 |
from US $214.40 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[11.1995 - 01.1998] FZJ80 |
89411-50010 |
from US $74.26 |
||
|
89429A
|
89429A
89429-34010 Sensor, Temperature[11.1995 - 01.1998] FZJ80 |
89429-34010 |
from US $40.49 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9030106004
|
9030106004
90301-06004 Ring, O No.3(For Transmission Solenoid) |
90301-06004 |
from US $2.15 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.90 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161240616
|
9161240616
91612-40616 Bolt, Hexagon(for Steering Column Bracket) |
91612-40616 |
US $2.91 |
||
| replacement | |||||
|
9161240616
|
9161240616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $3.78 |
||
