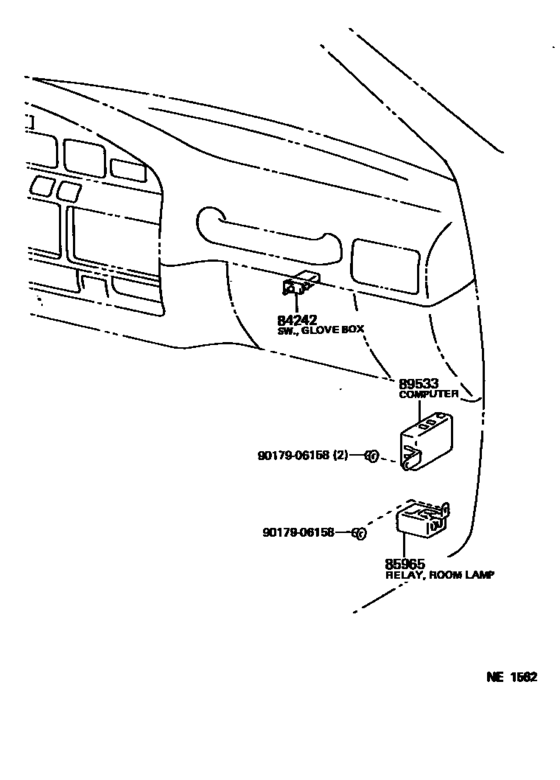

Switch & Relay & Computer ([11.1995 - ] RH COWL RELAY (9511- )) Diagram Toyota LEXUS LX
- Year
- 1995 - 1998
- Sales region
- U.S.A.
- Frame
- FZJ80
- ENGINE
- 1FZFE
- TRANSMISSION
- ATM
- Model
- LX450
- From
- 11.1995
- To
- 01.1998
- Vehicle Model
- LX450
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[11.1995 - 01.1998] FZJ80 |
84242-20030 |
US $18.35 |
||
|
85965
|
85965
85965-60010
Relay, Room Lamp Control
[11.1995 - 01.1998] FZJ80 |
85965-60010 |
— | ||
|
89533
|
89533
89533-60030
Computer, 4 Wheel Drive Control
[11.1995 - 01.1998] FZJ80 |
89533-60030 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
