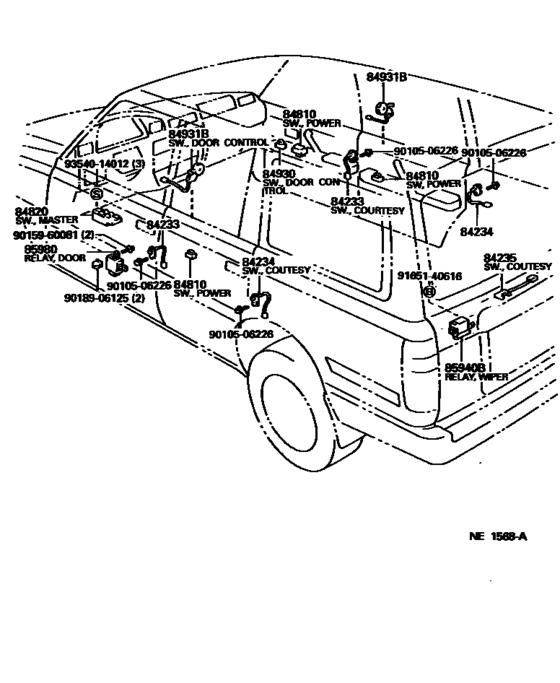

Switch & Relay & Computer ([11.1995 - ] DOOR SW. (9511- )) Diagram Toyota LEXUS LX
- Year
- 1995 - 1998
- Sales region
- U.S.A.
- Frame
- FZJ80
- ENGINE
- 1FZFE
- TRANSMISSION
- ATM
- Model
- LX450
- From
- 11.1995
- To
- 01.1998
- Vehicle Model
- LX450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-60010
Switch Assy, Courtesy Lamp (For Front Door)
[11.1995 - 01.1998] FZJ80 |
84231-60010 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-60020 Switch Assy, Courtesy Lamp[11.1995 - 01.1998] FZJ80 |
84231-60020 |
from US $17.28 |
||
|
84234
|
84234
84231-60020 Switch Assy, Courtesy Lamp[11.1995 - 01.1998] FZJ80 |
84231-60020 |
from US $17.28 |
||
|
84235
|
84235
84230-16020 Switch Assy, Courtesy Lamp (For Rear Door)[11.1995 - 01.1998] FZJ80 |
84230-16020 |
US $15.20 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[11.1995 - 01.1998] FZJ80 |
84810-32070 |
from US $39.48 |
||
|
84820
|
84820
84820-35010 Master Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [11.1995 - 01.1998] FZJ80 |
84820-35010 |
from US $197.96 |
||
|
84930
|
84930
84930-32040
Switch Assy, Door Control
[11.1995 - 08.1996] FZJ80 |
84930-32040 |
— | ||
|
84931B
|
84931B
84931-60050 Switch, Door Control[11.1995 - 01.1998] FZJ80 RH |
84931-60050 |
US $48.63 |
||
| replacement | |||||
|
84931B
|
84931B
84931-60010 Switch, Door Control[11.1995 - 01.1998] FZJ80 RH |
84931-60010 |
US $60.82 |
||
|
84931B
|
84931B
84931-60060 Switch, Door Control[11.1995 - 01.1998] FZJ80 LH |
84931-60060 |
US $48.78 |
||
| replacement | |||||
|
84931B
|
84931B
84931-60020 Switch, Door ControlDOOR CONTROL [11.1995 - 01.1998] FZJ80 LH |
84931-60020 |
US $48.34 |
||
|
85940B
|
85940B
85940-60020 Relay Assy, Rear Wiper[11.1995 - 01.1998] FZJ80 |
85940-60020 |
US $148.51 |
||
|
85980
|
85980
85980-60110 Relay Assy, Door ControlDOOR CONTROL [11.1995 - 01.1998] FZJ80 |
85980-60110 |
US $321.78 |
||
|
9010506226
|
9010506226
90105-06226 New Genuine Part |
90105-06226 |
US $1.65 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.33 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
