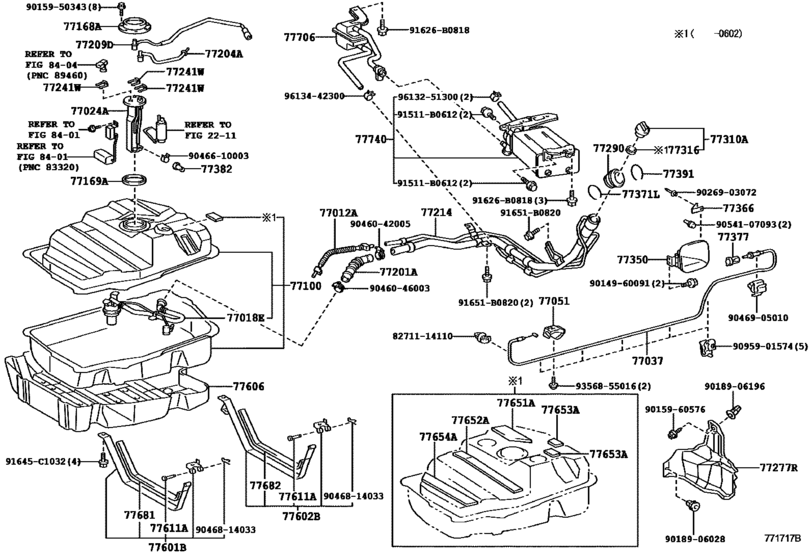

Fuel Tank & Tube ([05.2005 - ] FUEL TANK (0505- )) Diagram Toyota LEXUS LX
- Year
- 2002 - 2007
- Sales region
- U.S.A.
- Frame
- UZJ100
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- LX470
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- LX470
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77012A
|
77012A
77012-60140 Tube Sub-Assy, Fuel Tank Breather, No.1FUEL TANK BREATHER, NO.1 [05.2005 -] UZJ100 |
77012-60140 |
US $72.51 |
||
|
77018E
|
77018E
77018-60110
Tube Sub-Assy, Fuel Tank Evaporation Vent
[08.2002 - 05.2005] UZJ100 |
77018-60110 |
— | ||
|
77024A
|
77024A
77024-60140 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [08.2002 - 05.2005] UZJ100 |
77024-60140 |
US $90.27 |
||
|
77024A
|
77024A
77024-60180
Plate Sub-Assy, Fuel Suction
[05.2005 -] UZJ100 |
77024-60180 |
— | ||
|
77037
|
77037
77037-60030 Lock Sub-Assy, Fuel Filler Opening LidFUEL FILLER OPENING LID [08.2002 - 05.2005] UZJ100 |
77037-60030 |
from US $25.88 |
||
|
77037
|
77037
77037-60031 Lock Sub-Assy, Fuel Filler Opening LidFUEL FILLER OPENING LID [09.2005 -] UZJ100 |
77037-60031 |
US $26.48 |
||
|
77051
|
77051
77051-30060-A1
Lever Sub-Assy, Fuel Lid Open
[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
77051-30060-A1 |
— | ||
| replacement | |||||
|
77051
|
77051
77051-30060-C0 Lever Sub-Assy, Fuel Lid Open[08.2002 - 05.2005] UZJ100 IVORY,TRIM0# |
77051-30060-C0 |
US $16.77 |
||
|
77051
|
77051
77051-30060-B4
Lever Sub-Assy, Fuel Lid Open
[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
77051-30060-B4 |
— | ||
| replacement | |||||
|
77051
|
77051
77051-30060-C0 Lever Sub-Assy, Fuel Lid Open[08.2002 - 05.2005] UZJ100 STONE,TRIM1# |
77051-30060-C0 |
US $16.77 |
||
|
77100
|
77100
77001-60660 Tank Assy, Fuel[08.2002 - 05.2005] UZJ100 |
77001-60660 |
US $827.01 |
||
| replacement | |||||
|
77100
|
77100
77001-60880 Tank Assy, FuelFUEL [08.2002 - 05.2005] UZJ100 |
77001-60880 |
US $803.71 |
||
|
77100
|
77100
77001-60720
Tank Assy, Fuel
[05.2005 -] UZJ100 |
77001-60720 |
— | ||
|
77168A
|
77168A
77168-33050 Plate, Fuel Tank Vent Tube Set[05.2005 -] UZJ100 |
77168-33050 |
from US $19.40 |
||
|
77168A
|
77168A
77168-52010 Plate, Fuel Tank Vent Tube Set[08.2002 - 05.2005] UZJ100 |
77168-52010 |
from US $12.48 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[08.2002 - 05.2005] UZJ100 |
77169-33020 |
from US $7.88 |
||
|
77201A
|
77201A
77213-60130 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)[08.2002 - 05.2005] UZJ100 |
77213-60130 |
from US $38.61 |
||
|
77201A
|
77201A
77213-60270 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)FUEL, NO.1(FOR FUEL TANK INLET PIPE) [05.2005 - 08.2007] UZJ100 |
77213-60270 |
US $43.10 |
||
|
77204A
|
77204A
77204-60010 Tube, Fuel Tank Return[08.2002 - 05.2005] UZJ100 |
77204-60010 |
from US $9.83 |
||
|
77204A
|
77204A
77204-60030 Tube, Fuel Tank ReturnFUEL TANK RETURN [05.2005 -] UZJ100 |
77204-60030 |
US $35.38 |
||
|
77209D
|
77209D
77209-60160 Tube Sub-Assy, Fuel Tank Main[08.2002 - 05.2005] UZJ100 |
77209-60160 |
US $25.19 |
||
|
77209D
|
77209D
77209-60330 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [05.2005 -] UZJ100 |
77209-60330 |
US $31.45 |
||
|
77214
|
77214
77210-60080 Pipe, Fuel Tank FillerFUEL TANK FILLER [05.2005 -] UZJ100 |
77210-60080 |
US $353.81 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[08.2002 - 05.2005] UZJ100 |
77241-60320 |
from US $0.86 |
||
|
77277R
|
77277R
77277-60070 Protector, Fuel Tank Filler Pipe[08.2002 - 05.2005] UZJ100 |
77277-60070 |
from US $52.59 |
||
|
77290
|
77290
77291-60070
Shield Assy, Fuel Tank Filler Pipe
[08.2002 - 12.2004] UZJ100 |
77291-60070 |
— | ||
| replacement | |||||
|
77290
|
77290
77291-60071 Shield Assy, Fuel Tank Filler Pipe[08.2002 - 12.2004] UZJ100 |
77291-60071 |
from US $22.46 |
||
|
77290
|
77290
77291-60071 Shield Assy, Fuel Tank Filler Pipe[12.2004 - 05.2005] UZJ100 |
77291-60071 |
from US $22.46 |
||
|
77310A
|
77310A
77300-52040 Cap Assy, Fuel TankFUEL TANK [05.2005 -] UZJ100 |
77300-52040 |
from US $26.64 |
||
|
77310A
|
77310A
77300-53010 Cap Assy, Fuel TankFUEL TANK [08.2002 - 05.2005] UZJ100 |
77300-53010 |
from US $45.77 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[08.2002 - 05.2005] UZJ100 |
77316-16010 |
from US $11.06 |
||
|
77316
|
77316
77316-52020 Gasket, Fuel Tank Cap[05.2005 - 02.2006] UZJ100 |
77316-52020 |
US $5.24 |
||
| replacement | |||||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[05.2005 - 02.2006] UZJ100 |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-60061 Lid Assy, Fuel Filler Opening[08.2002 - 05.2005] UZJ100 |
77350-60061 |
US $59.23 |
||
|
77366
|
77366
77366-60010 Spring, Fuel Filler Opening Lid Hinge[08.2002 - 05.2005] UZJ100 |
77366-60010 |
US $2.97 |
||
|
77371L
|
77371L
77371-60010 Ring, Fuel Tank Filler Pipe Shield[08.2002 - 05.2005] UZJ100 |
77371-60010 |
US $6.63 |
||
|
77377
|
77377
77377-60010 Retainer, Fuel Filler Opening Lid Lock[08.2002 - 05.2005] UZJ100 |
77377-60010 |
from US $12.72 |
||
|
77382
|
77382
77382-34010
Valve, Fuel Cut Off
[08.2002 - 05.2005] UZJ100 |
77382-34010 |
— | ||
|
77391
|
77391
77391-60040 Ring, Fuel Inlet Box[08.2002 - 05.2005] UZJ100 |
77391-60040 |
US $6.63 |
||
|
77601B
|
77601B
77601-60210 Band Sub-Assy, Fuel Tank, No.1 Rh[08.2002 - 05.2005] UZJ100 |
77601-60210 |
from US $48.89 |
||
|
77602B
|
77602B
77602-60080 Band Sub-Assy, Fuel Tank, No.1 Lh[08.2002 - 05.2005] UZJ100 |
77602-60080 |
from US $56.28 |
||
|
77606
|
77606
77606-60120 Protector Sub-Assy, Fuel Tank, No.1[08.2002 - 05.2005] UZJ100 |
77606-60120 |
from US $264 |
||
|
77611A
|
77611A
90240-08060 Pin (For Fuel Tank Band)[08.2002 - 05.2005] UZJ100 |
90240-08060 |
US $4.72 |
||
|
77651A
|
77651A
77654-60050 Cushion, Fuel Tank, No.1[08.2002 - 05.2005] UZJ100 |
77654-60050 |
US $16.07 |
||
|
77652A
|
77652A
77652-60060 Cushion, Fuel Tank, No.2[08.2002 - 05.2005] UZJ100 |
77652-60060 |
US $5.77 |
||
|
77653A
|
77653A
77653-60060 Cushion, Fuel Tank, No.3[08.2002 - 05.2005] UZJ100 |
77653-60060 |
US $7.16 |
||
|
77654A
|
77654A
77651-60120 Cushion, Fuel Tank, No.4[08.2002 - 05.2005] UZJ100 |
77651-60120 |
US $23.41 |
||
|
77681
|
77681
77682-16010 Seat, Fuel Tank Band, Rh[08.2002 - 05.2005] UZJ100 |
77682-16010 |
US $20.09 |
||
|
77682
|
77682
77682-16010 Seat, Fuel Tank Band, Rh[08.2002 - 05.2005] UZJ100 |
77682-16010 |
US $20.09 |
||
|
77706
|
77706
77706-60030 Filter Sub-Assy, Charcoal CanisterCHARCOAL CANISTER [05.2005 -] UZJ100 |
77706-60030 |
US $131.04 |
||
|
77740
|
77740
77740-60440 Canister Assy, CharcoalCHARCOAL [08.2002 - 05.2005] UZJ100 |
77740-60440 |
US $320 |
||
|
77740
|
77740
77740-60450 Canister Assy, CharcoalCHARCOAL [05.2005 -] UZJ100 |
77740-60450 |
US $583.86 |
||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $1.01 |
||
|
91626B0818
|
91626B0818
91626-B0818 New Genuine Part |
91626-B0818 |
US $2.33 |
||
|
91645C1032
|
91645C1032
91645-C1032 Bolt, Fuel Tank |
91645-C1032 |
US $3.58 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $3.05 |
||
|
9014960091
|
9014960091
90149-60091 SCREW |
90149-60091 |
US $0.96 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.68 |
||
|
9015960576
|
9015960576
90159-60576 SCREW WWASHER |
90159-60576 |
from US $0.98 |
||
|
9018906028
|
9018906028
90189-06028 CLIP |
90189-06028 |
from US $0.76 |
||
|
9018906196
|
9018906196
90189-06196 GROMMET SCREW |
90189-06196 |
from US $0.90 |
||
|
9026903072
|
9026903072
90269-03072 New Genuine Part |
90269-03072 |
US $0.70 |
||
|
9046042005
|
9046042005
90460-42005 Clamp (For Fuel Filler Pipe) |
90460-42005 |
US $3.35 |
||
| replacement | |||||
|
9046042005
|
9046042005
90460-40007 Clamp (For Fuel Filler Pipe) |
90460-40007 |
US $3.40 |
||
|
9046046003
|
9046046003
90460-46003
Clamp (For Fuel Filler Pipe)
|
90460-46003 |
— | ||
| replacement | |||||
|
9046046003
|
9046046003
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046610003
|
9046610003
90466-10003 New Genuine Part |
90466-10003 |
US $0.70 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.90 |
||
|
9046905010
|
9046905010
90469-05010 Clamp, No.2(For Air Tube, No.2) |
90469-05010 |
US $1.65 |
||
|
9054107093
|
9054107093
90541-07093 Cushion, Instrument Panel, No.1 |
90541-07093 |
from US $2.48 |
||
|
9095901574
|
9095901574
90959-01574 New Genuine Part |
90959-01574 |
US $3.93 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9613442300
|
9613442300
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.61 |
||
