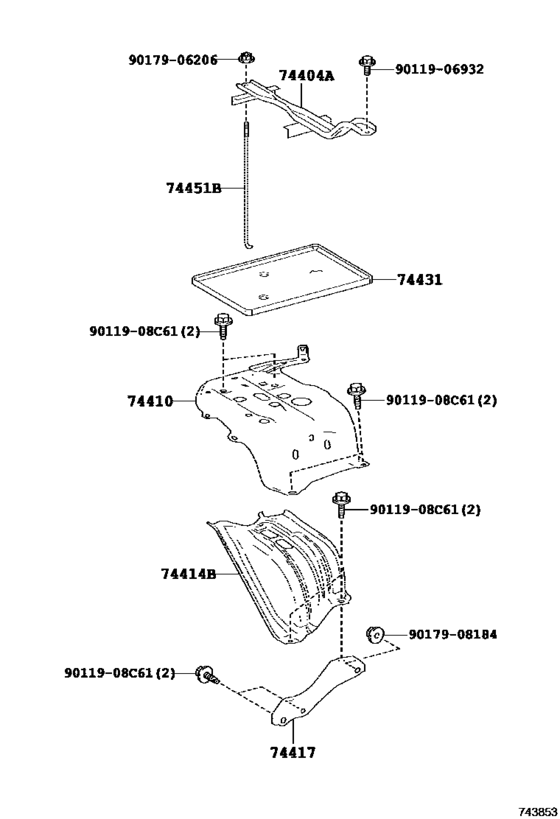

Battery Carrier ([07.2014 - ] (1407- )AGZ1#) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-78010 Clamp Sub-Assy, Battery[07.2014 -] AGZ1# |
74404-78010 |
US $29.64 |
||
|
74410
|
74410
74410-78010 Carrier Assy, Battery[07.2014 -] AGZ1# |
74410-78010 |
US $152.88 |
||
|
74414B
|
74414B
74414-78020 Reinforcement, Battery Bracket[07.2014 -] AGZ1# |
74414-78020 |
US $33.20 |
||
|
74417
|
74417
74417-42030 Bracket, Battery Carrier[07.2014 -] AGZ1# |
74417-42030 |
US $13.22 |
||
|
74431
|
74431
74431-52040 Tray, BatteryBATTERY [07.2014 -] AGZ1# |
74431-52040 |
from US $27.85 |
||
|
74451B
|
74451B
74451-10060 Bolt, Battery Clamp[07.2014 -] AGZ1# |
74451-10060 |
from US $4.17 |
||
|
9011908C61
|
9011908C61
90119-08C61 BOLT WWASHER |
90119-08C61 |
US $1.43 |
||
|
9011906932
|
9011906932
90119-06932 BOLT WWASHER |
90119-06932 |
from US $0.64 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017908184
|
9017908184
90179-08184 NUT |
90179-08184 |
US $1.61 |
