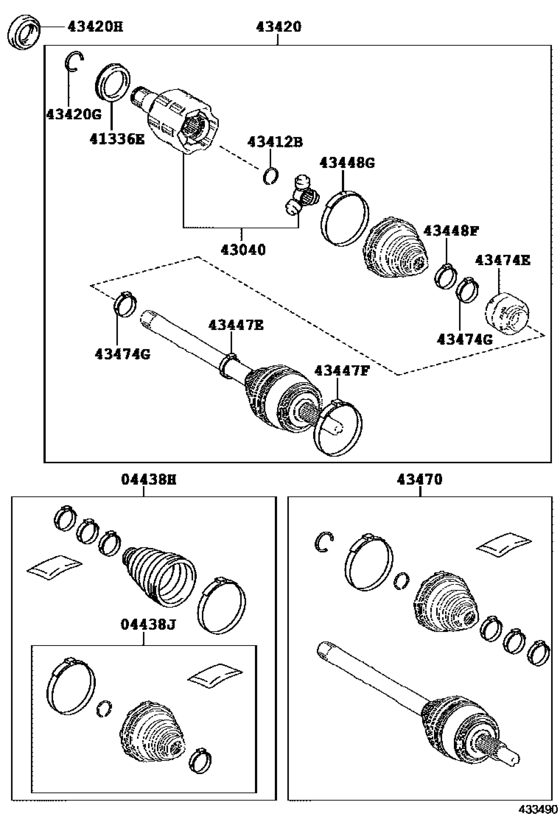

Front Drive Shaft ([02.2015 - ] ﾋﾀﾞﾘｶﾞﾜ (1502- )) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-78010
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[07.2014 -] AGZ1#,AYZ1# |
04428-78010 |
— | ||
| replacement | |||||
|
04438H
|
04438H
0442878011 BOOT KIT FR DRIVE[07.2014 -] AGZ1#,AYZ1# |
0442878011 |
from US $121.52 |
||
|
04438J
|
04438J
04438-78010 Boot Kit, Front Drive Shaft Inboard Joint, Lh[07.2014 -] AGZ1#,AYZ1# |
04438-78010 |
US $55.91 |
||
|
41336E
|
41336E
41336-78030 Cover, Front Drive Shaft Dust, Lh[07.2014 -] AGZ1# |
41336-78030 |
US $6.84 |
||
|
43040
|
43040
43040-58010 Joint Assy, Front Drive Inboard, Lh[02.2015 -] AGZ1# |
43040-58010 |
US $149.60 |
||
|
43040
|
43040
43040-78010 Joint Assy, Front Drive Inboard, Lh[07.2014 - 02.2015] AGZ1# |
43040-78010 |
US $305.70 |
||
|
43412B
|
43412B
43425-78020 Ring, Hole Snap (For Front Drive Shaft Rh)[07.2014 -] AGZ1#,AYZ1# |
43425-78020 |
US $0.87 |
||
|
43420
|
43420
43420-78010 Shaft Assy, Front Drive, Lh[07.2014 - 04.2017] AGZ1# |
43420-78010 |
from US $634.82 |
||
|
43420
|
43420
43420-78040 Shaft Assy, Front Drive, Lh[04.2017 -] AGZ1# |
43420-78040 |
US $607.02 |
||
|
43420G
|
43420G
43425-78050 Ring, Hole Snap (For Front Drive Shaft Lh)[07.2014 -] AGZ1#,AYZ1# |
43425-78050 |
from US $1.31 |
||
|
43420H
|
43420H
90311-50045
Oil Seal, Front Drive Shaft, Lh
[07.2014 -] AGZ1# |
90311-50045 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-50064 SEAL TYPE T OIL[07.2014 -] AGZ1# |
90311-50064 |
from US $9.68 |
||
|
43447E
|
43447E
42345-78040 Clamp (For Front Axle Outboard Joint Boot Rh)[07.2014 -] AGZ1#,AYZ1# |
42345-78040 |
US $2.91 |
||
|
43447F
|
43447F
42345-78050 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[07.2014 -] AGZ1#,AYZ1# |
42345-78050 |
US $5.82 |
||
|
43448F
|
43448F
42345-78010 Clamp (For Front Axle Inboard Joint Boot Rh)[07.2014 -] AGZ1#,AYZ1# |
42345-78010 |
US $2.62 |
||
|
43448G
|
43448G
42345-78020 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)[07.2014 -] AGZ1#,AYZ1# |
42345-78020 |
US $4.02 |
||
|
43470
|
43470
43470-79155 Shaft Assy, Front Drive Outboard Joint, Lh[07.2014 - 04.2017] AGZ1# |
43470-79155 |
US $425.15 |
||
|
43470
|
43470
43470-79215
Shaft Assy, Front Drive Outboard Joint, Lh
[04.2017 -] AGZ1# |
43470-79215 |
— | ||
|
43474E
|
43474E
43474-78020 Damper, Front Drive Shaft, Lh[07.2014 -] AGZ1# |
43474-78020 |
US $50.38 |
||
|
43474G
|
43474G
42345-78060 Clamp (For Front Drive Shaft Damper Lh)[07.2014 -] AGZ1#,AYZ1# |
42345-78060 |
US $2.62 |
||
