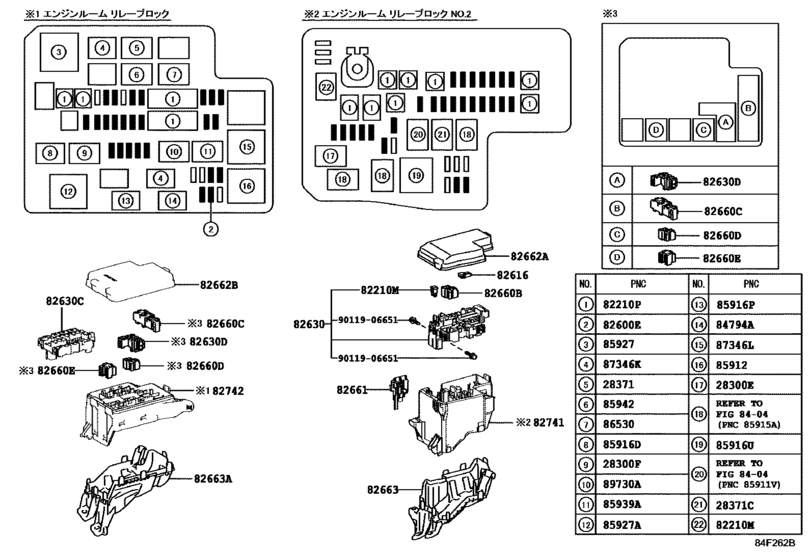

Switch & Relay & Computer ([07.2014 - ] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1407- )AGZ1#) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300E
|
28300E
28300-21020 Relay Assy, Starter[07.2014 -] 8ARFTS..AGZ1# |
28300-21020 |
from US $44.86 |
||
|
28300F
|
28300F
28300-21020 Relay Assy, Starter[07.2014 -] 8ARFTS..AGZ1# |
28300-21020 |
from US $44.86 |
||
|
28371
|
28371
90987-02027 Relay[07.2014 -] 2ARFXE,8ARFTS..AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
28371C
|
28371C
90987-02027 Relay[07.2014 -] 2ARFXE,8ARFTS..AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
82210M
|
82210M
90982-08286 Fusible Link[07.2014 -] AGZ1# １４０Ａ，オス端子 |
90982-08286 |
from US $8.60 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[07.2014 -] AGZ1#,AYZ1# ４０Ａ，メス端子 |
90982-08294 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[07.2014 -] AGZ1#,AYZ1# ３０Ａ，メス端子 |
90982-08295 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[07.2014 -] AGZ1#,AYZ1# ５０Ａ，メス端子,マーク＝５８Ｖ |
90982-08296 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08300 Fusible Link[07.2014 -] AGZ1#,AYZ1# ５０Ａ−３０Ａ−３０Ａ，メス端子 |
90982-08300 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[07.2014 -] AGZ1#,AYZ1# ５０Ａ−３０Ａ−５０Ａ，メス端子 |
90982-08302 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[07.2014 -] AGZ1#,AYZ1# ５０Ａ−５０Ａ−５０Ａ，メス端子 |
90982-08303 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[07.2014 -] AGZ1#,AYZ1# ６０Ａ，メス端子 |
90982-08304 |
US $6.99 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[07.2014 -] AGZ1#,AYZ1# ８０Ａ，メス端子 |
90982-08305 |
from US $6.99 |
||
|
82210P
|
82210P
90982-08307 Fusible Link[07.2014 -] AGZ1#,AYZ1# ５０Ａ，メス端子,マーク＝３２Ｖ |
90982-08307 |
from US $4.95 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.82 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[07.2014 -] AGZ1#,AYZ1# ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[07.2014 -] AGZ1#,AYZ1# １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.84 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.78 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[07.2014 -] AGZ1#,AYZ1# |
82616-58010 |
from US $2.28 |
||
|
82630
|
82630
82630-42020 Holder Assy, Fuse[07.2014 -] AGZ1# |
82630-42020 |
US $50.67 |
||
|
82630C
|
82630C
82631-48020 Holder Assy, Fuse[07.2014 -] AGZ1#,AYZ1# |
82631-48020 |
US $43.39 |
||
|
82630D
|
82630D
82631-78010 Holder, Fuse[07.2014 -] AGZ1#,AYZ1# |
82631-78010 |
US $12.96 |
||
|
82660B
|
82660B
82660-52010 Block Assy, Relay[07.2014 -] AGZ1# |
82660-52010 |
US $7.13 |
||
|
82660C
|
82660C
82660-26290 Block Assy, Relay, Engine Room[07.2014 -] AGZ1#,AYZ1# |
82660-26290 |
US $13.40 |
||
|
82660D
|
82660D
82660-52010 Block Assy, Relay[07.2014 -] AGZ1#,AYZ1# |
82660-52010 |
US $7.13 |
||
|
82660E
|
82660E
82660-0H070 Block Assy, Relay[07.2014 -] AGZ1#,AYZ1# |
82660-0H070 |
US $6.74 |
||
|
82661
|
82661
82661-42040 Cover, Relay Block, No.1[07.2014 -] AGZ1#,AYZ1# |
82661-42040 |
US $7.13 |
||
|
82662A
|
82662A
82662-78020 Cover, Relay Block, Upper, No.1[07.2014 -] AGZ1# |
82662-78020 |
US $24.75 |
||
|
82662B
|
82662B
82662-78070 Cover, Relay Block, Upper, No.2[07.2014 -] AGZ1# |
82662-78070 |
US $36.82 |
||
|
82663
|
82663
82663-42100 Cover, Relay Block, Lower[07.2014 -] AGZ1#,AYZ1# |
82663-42100 |
from US $34.81 |
||
|
82663A
|
82663A
82663-42110 Cover, Relay Block, Lower, No.2[07.2014 -] AGZ1#,AYZ1# |
82663-42110 |
from US $32.53 |
||
|
82741
|
82741
82741-42020 Block, Engine Room Relay[07.2014 -] AGZ1# |
82741-42020 |
from US $54.29 |
||
|
82742
|
82742
82741-48090 Block, Engine Room Relay[07.2014 -] AGZ1#,AYZ1# |
82741-48090 |
from US $50.23 |
||
|
84794A
|
84794A
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# 寒冷地仕様 |
90987-02027 |
from US $47.11 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[07.2014 -] AGZ1#,AYZ1# |
90987-04010 |
from US $47.21 |
||
|
85916D
|
85916D
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
85916P
|
85916P
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
85916U
|
85916U
90987-02025 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02025 |
from US $49.22 |
||
|
85927
|
85927
90987-02025 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02025 |
from US $49.22 |
||
|
85927A
|
85927A
90987-02025 Relay[07.2014 -] AGZ1# |
90987-02025 |
from US $49.22 |
||
|
85939A
|
85939A
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# ステアリングホイール−革巻き，有り（ステアリングヒータ＆パドルスイッチ）; AGZ1#,AYZ1# ステアリングホイール−革巻き（ディンプル加工），有り（ステアリングヒータ＆パドルス イッチ） |
90987-02027 |
from US $47.11 |
||
|
85942
|
85942
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# 寒冷地仕様 |
90987-02027 |
from US $47.11 |
||
|
86530
|
86530
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
87346K
|
87346K
90987-02027 Relay[07.2014 -] AYZ1#; AGZ1# ＰＴＣヒータ−有り |
90987-02027 |
from US $47.11 |
||
|
87346L
|
87346L
90987-02025 Relay[07.2014 -] AYZ1#; AGZ1# ＰＴＣヒータ−有り |
90987-02025 |
from US $49.22 |
||
|
89730A
|
89730A
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
9011906651
|
9011906651
90119-06651 BOLT WWASHER |
90119-06651 |
from US $0.68 |
