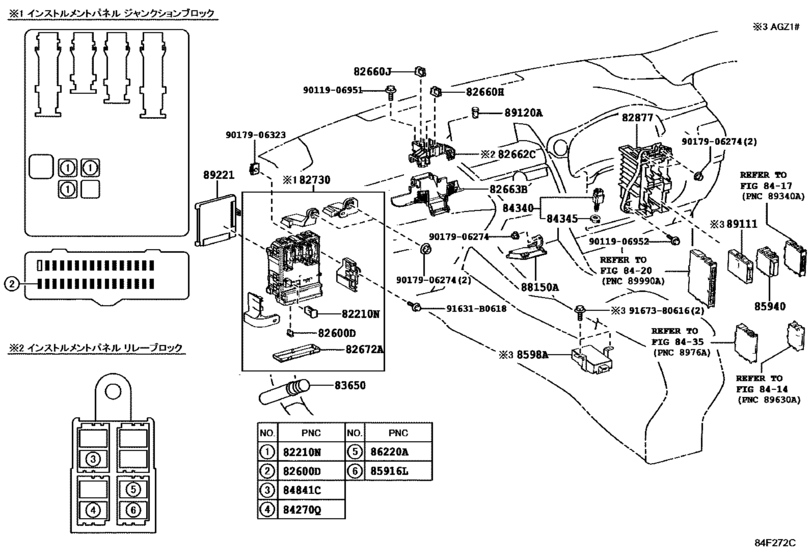

Switch & Relay & Computer ([07.2014 - ] ｶｳﾙ (1407- )) Diagram Toyota LEXUS NX
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AGZ15
- grade
- LUX
- body
- WG
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- Model
- NX200T
- From
- 07.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- NX200T
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8598A
|
8598A
8598A-78010 Battery, Door Control[07.2014 -] AGZ1# |
8598A-78010 |
US $199.47 |
||
|
82210N
|
82210N
90982-08306 Fusible Link[07.2014 -] AGZ1#,AYZ1# ３０Ａ，メス端子 |
90982-08306 |
from US $6.99 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ５Ａ，ミニ ヒューズ |
90982-09019 |
from US $0.82 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[07.2014 -] AGZ1#,AYZ1# ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[07.2014 -] AGZ1#,AYZ1# １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ２５Ａ，ミニ ヒューズ |
90982-09024 |
from US $0.84 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[07.2014 -] AGZ1#,AYZ1# ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.78 |
||
|
82660H
|
82660H
82660-48020 Block Assy, Relay, Engine RoomRELAY [07.2014 -] AGZ1#,AYZ1# |
82660-48020 |
from US $8.25 |
||
|
82660J
|
82660J
82660-48040 Block Assy, Relay[07.2014 -] AGZ1#,AYZ1# |
82660-48040 |
from US $7.28 |
||
|
82662C
|
82662C
82662-78010 Cover, Relay Block, Upper, No.3[07.2014 -] AGZ1#,AYZ1# |
82662-78010 |
US $17.33 |
||
|
82663B
|
82663B
82663-78010 Cover, Relay Block, Lower, No.3[07.2014 -] AGZ1#,AYZ1# |
82663-78010 |
US $17.62 |
||
|
82672A
|
82672A
82672-78010 Cover, Junction Block[07.2014 -] AGZ1#,AYZ1# |
82672-78010 |
from US $4.51 |
||
|
82730
|
82730
82730-78020 Block Assy, Instrument Panel Junction[07.2014 - 01.2016] AGZ1#,AYZ1# |
82730-78020 |
US $195.10 |
||
| replacement | |||||
|
82730
|
82730
82730-78021 Block Assy, Instrument Panel Junction[07.2014 - 01.2016] AGZ1#,AYZ1# |
82730-78021 |
US $176.18 |
||
|
82730
|
82730
82730-78021 Block Assy, Instrument Panel Junction[02.2016 -] AGZ1#,AYZ1# |
82730-78021 |
US $176.18 |
||
|
82877
|
82877
82877-48020 Box, Computer Integration, Rh[07.2014 -] AGZ1#,AYZ1# |
82877-48020 |
US $64.65 |
||
|
83650
|
83650
90986-01005
Fusee
[07.2014 -] AGZ1#,AYZ1# |
90986-01005 |
— | ||
|
84270Q
|
84270Q
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# |
90987-02027 |
from US $47.11 |
||
|
84340
|
84340
84340-39015 Switch Assy, Stop Lamp[07.2014 -] AGZ1#,AYZ1# |
84340-39015 |
from US $23.01 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[07.2014 -] AGZ1#,AYZ1# |
84345-51010 |
from US $3.45 |
||
|
84841C
|
84841C
90987-04004 Relay, Starter Cut[07.2014 -] AGZ1#,AYZ1# |
90987-04004 |
from US $47.21 |
||
|
85916L
|
85916L
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# 寒冷地仕様 |
90987-02027 |
from US $47.11 |
||
|
85940
|
85940
85940-42030 Relay Assy, Windshield Wiper[07.2014 -] AGZ1#,AYZ1# |
85940-42030 |
US $139.78 |
||
|
86220A
|
86220A
90987-02027 Relay[07.2014 -] AGZ1#,AYZ1# アクセサリソケット−有り（ＡＣ１００Ｖ １００Ｗ） |
90987-02027 |
from US $47.11 |
||
|
88150A
|
88150A
88150-78010
Computer Assy, Driving Support
[07.2014 - 09.2015] AGZ1# プリクラッシュシステム−有り（プリクラッシュブレーキアシスト＆プリクラッシュブレー キ） |
88150-78010 |
— | ||
|
88150A
|
88150A
88150-78011
Computer Assy, Driving Support
[09.2015 - 09.2016] AGZ1# プリクラッシュシステム−有り（プリクラッシュブレーキアシスト＆プリクラッシュブレー キ） |
88150-78011 |
— | ||
|
88150A
|
88150A
88150-78012
Computer Assy, Driving Support
[09.2016 -] AGZ1# プリクラッシュシステム−有り（プリクラッシュブレーキアシスト＆プリクラッシュブレー キ） |
88150-78012 |
— | ||
|
89111
|
89111
89111-48150 Computer, Network Gateway[07.2014 - 09.2016] AGZ1# |
89111-48150 |
US $238.78 |
||
|
89111
|
89111
89111-78010 Computer, Network Gateway[09.2016 -] AGZ1# |
89111-78010 |
US $238.78 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[07.2014 -] AGZ1#,AYZ1# |
89121-30020 |
from US $48.09 |
||
|
89221
|
89221
89220-78010 Computer, Multiplex Network Body[07.2014 - 09.2015] AGZ1#,AYZ1# |
89220-78010 |
US $463.01 |
||
| replacement | |||||
|
89221
|
89221
89220-78011 Computer, Multiplex Network Body[07.2014 - 09.2015] AGZ1#,AYZ1# |
89220-78011 |
US $463.01 |
||
|
89221
|
89221
89220-78460 Computer, Multiplex Network Body[09.2015 - 10.2015] AGZ1#,AYZ1# |
89220-78460 |
US $463.01 |
||
| replacement | |||||
|
89221
|
89221
89220-78462 Computer, Multiplex Network Body[09.2015 - 10.2015] AGZ1#,AYZ1# |
89220-78462 |
US $420.78 |
||
|
89221
|
89221
89220-78461 Computer, Multiplex Network Body[10.2015 - 01.2016] AGZ1#,AYZ1# |
89220-78461 |
US $463.01 |
||
| replacement | |||||
|
89221
|
89221
89220-78462 Computer, Multiplex Network Body[10.2015 - 01.2016] AGZ1#,AYZ1# |
89220-78462 |
US $420.78 |
||
|
89221
|
89221
89220-78462 Computer, Multiplex Network Body[02.2016 -] AGZ1#,AYZ1# |
89220-78462 |
US $420.78 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.97 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
