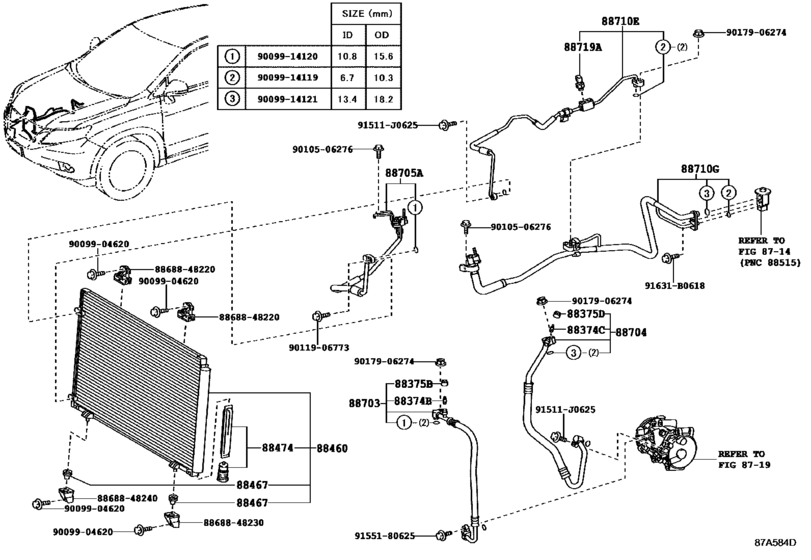

Heating & Air Conditioning - Cooler Piping ([12.2008 - ] (0812- )GGL15..GCC) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
88374-30010 |
from US $3.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
88374-30010 |
from US $3.12 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
88375-30280 |
from US $0.98 |
||
|
88375D
|
88375D
88375-30290 Cap, Service Valve (For Cooler Pipe)[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
88375-30290 |
from US $0.88 |
||
|
88460
|
88460
88460-48140 Condenser Assy, CoolerCOOLER [12.2008 - 03.2012] AGL10,GGL15 |
88460-48140 |
from US $508.14 |
||
|
88467
|
88467
88467-48020
Cushion, Cooler Condenser, No.1
[12.2008 - 03.2012] AGL10,GGL15 |
88467-48020 |
— | ||
|
88474
|
88474
88474-17010 Dryer, Cooler[12.2008 - 03.2012] AGL10,GGL15 |
88474-17010 |
from US $65.40 |
||
|
88703
|
88703
88703-48180 Hose Sub-Assy, DischargeDISCHARGE [12.2008 - 03.2012] GGL15 |
88703-48180 |
from US $117.94 |
||
|
88704
|
88704
88704-48180
Hose Sub-Assy, Suction
[12.2008 - 03.2012] GGL15..GCC |
88704-48180 |
— | ||
| replacement | |||||
|
88704
|
88704
88704-48181
Hose Sub-Assy, Suction
[12.2008 - 03.2012] GGL15..GCC |
88704-48181 |
— | ||
|
88704
|
88704
88704-48181
Hose Sub-Assy, Suction
[03.2012 -] GGL15..GCC |
88704-48181 |
— | ||
|
88705A
|
88705A
88705-48110 Tube Sub-Assy, DischargeDISCHARGE [12.2008 - 03.2012] AGL10,GGL15 |
88705-48110 |
US $132.50 |
||
|
88710E
|
88710E
88710-48360
Tube & Accessory Assy, Air Conditioner
[12.2008 - 03.2012] GGL15..GCC |
88710-48360 |
— | ||
|
88710G
|
88710G
88710-48370 Tube & Accessory Assy, Air Conditioner, No.2AIRCONDITIONER, NO.2 [12.2008 - 03.2012] GGL15..GCC |
88710-48370 |
US $441.44 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
88719-33020 |
from US $124.05 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
8868848220
|
8868848220
88688-48220 Bracket, Cooler Diaphragm |
88688-48220 |
US $8.91 |
||
|
8868848230
|
8868848230
88688-48230 Bracket, Cooler Diaphragm |
88688-48230 |
US $5.01 |
||
|
8868848240
|
8868848240
88688-48240 Bracket, Cooler Diaphragm |
88688-48240 |
US $4.39 |
||
|
9009904620
|
9009904620
90099-04620
New Genuine Part
|
90099-04620 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9010506276
|
9010506276
90105-06276 New Genuine Part |
90105-06276 |
US $0.87 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
