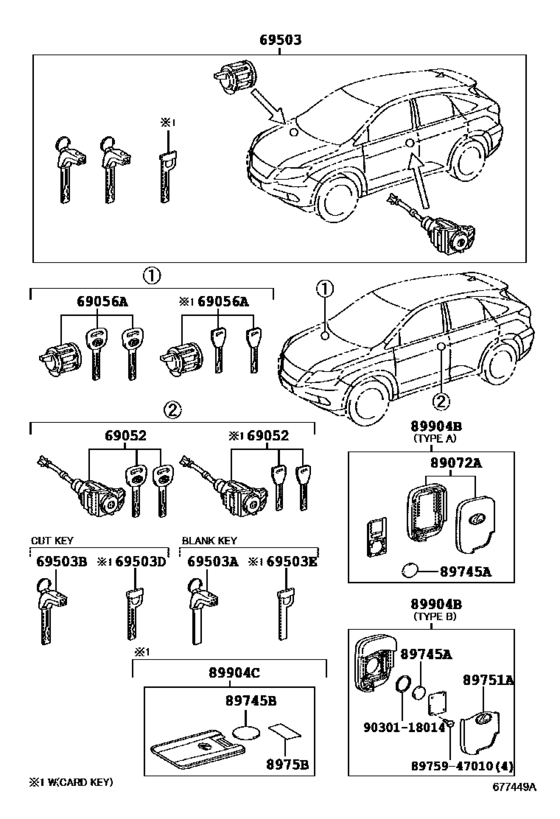

Lock Cylinder Set ([03.2012 - ] (1203- )LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8975B
|
8975B
8975B-50020 Cover, Transmitter Housing[03.2012 -] GGL15..LHD..EUR BRAZIL SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..LHD..EUR TAIWAN SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GYL15..LHD..EUR TAIWAN SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & |
8975B-50020 |
US $1.93 |
||
|
69052
|
69052
69052-48140
Cylinder & Key Set, Door Lock, Lh
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
69052-48140 |
— | ||
|
69052
|
69052
69052-48150
Cylinder & Key Set, Door Lock, Lh
[12.2008 - 03.2012] AGL10,GGL15..LHD ELECTRICAL KEY(2) & CARD TYPE(1) |
69052-48150 |
— | ||
|
69056A
|
69056A
69056-30250 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
69056-30250 |
US $94.64 |
||
|
69056A
|
69056A
69056-50160 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [12.2008 - 03.2012] AGL10,GGL15 ELECTRICAL KEY(2) & CARD TYPE(1) |
69056-50160 |
US $94.64 |
||
|
69503
|
69503
69005-48420
Cylinder Set, Lock
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
69005-48420 |
— | ||
|
69503
|
69503
69005-48460
Cylinder Set, Lock
[12.2008 - 03.2012] AGL10,GGL15..LHD ELECTRICAL KEY(2) & CARD TYPE(1) |
69005-48460 |
— | ||
|
69503A
|
69503A
69515-30300 Key, BlankBLANK [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
69515-30300 |
US $55.24 |
||
|
69503A
|
69503A
69515-50260 Key, BlankBLANK [12.2008 - 03.2012] AGL10,GGL15 BLANK KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-50260 |
from US $55.52 |
||
|
69503B
|
69503B
69515-30290 Key, Cut[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
69515-30290 |
US $114.84 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[12.2008 - 03.2012] AGL10,GGL15 MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-50240 |
US $127.92 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[11.2009 - 03.2012] AGL10,GGL15 MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1); GYL1# MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-30330 |
US $116.44 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[12.2008 - 11.2009] GGL15 MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-50220 |
US $127.92 |
||
|
69503E
|
69503E
69515-50270 Key, Blank(Card Key)BLANK(CARD KEY) [12.2008 - 03.2012] AGL10,GGL15 BLANK KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-50270 |
from US $49.22 |
||
|
89072A
|
89072A
89072-48610
Housing Set, Door Control Transmitter
[12.2008 - 07.2009] GGL15..GCC |
89072-48610 |
— | ||
| replacement | |||||
|
89072A
|
89072A
89072-48612
Housing Set, Door Control Transmitter
[12.2008 - 07.2009] GGL15..GCC |
89072-48612 |
— | ||
|
89072A
|
89072A
89072-48611
Housing Set, Door Control Transmitter
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC; AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC; GGL15..RHD BRUN |
89072-48611 |
— | ||
| replacement | |||||
|
89072A
|
89072A
89072-48612
Housing Set, Door Control Transmitter
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC; AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC; GGL15..RHD BRUN |
89072-48612 |
— | ||
|
89072A
|
89072A
89072-48620
Housing Set, Door Control Transmitter
[12.2008 - 07.2009] GGL15..GCC AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
89072-48620 |
— | ||
| replacement | |||||
|
89072A
|
89072A
89072-48622
Housing Set, Door Control Transmitter
[12.2008 - 07.2009] GGL15..GCC AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
89072-48622 |
— | ||
|
89072A
|
89072A
89072-48621
Housing Set, Door Control Transmitter
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&AUTO & EASY C |
89072-48621 |
— | ||
| replacement | |||||
|
89072A
|
89072A
89072-48622
Housing Set, Door Control Transmitter
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&AUTO & EASY C |
89072-48622 |
— | ||
|
89072A
|
89072A
89072-48622
Housing Set, Door Control Transmitter
[11.2012 - 08.2013] AGL10,GGL15..RHD MALAYSIA SPEC; AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
89072-48622 |
— | ||
|
89072A
|
89072A
89072-48A80
Housing Set, Door Control Transmitter
[08.2013 -] GGL15..LHD..EUR BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..LHD..EUR BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..LHD..EUR CHILE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWE |
89072-48A80 |
— | ||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[08.2013 -] GGL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
89745-52020 |
from US $7.88 |
||
|
89745A
|
89745A
89745-52030 Battery, Transmitter (CR1632)[12.2008 - 03.2012] AGL10,GGL15,GYL1# |
89745-52030 |
from US $7.88 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[12.2008 - 03.2012] GGL15..LHD..EUR TAIWAN SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..LHD..EUR BE |
89745-50030 |
from US $10.51 |
||
|
89751A
|
89751A
89751-48330
Cover, Transmitter Housing
[08.2009 - 03.2012] GGL15..GCC MOROCCO SPEC; GGL15..GCC MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..GCC MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CAR D TYPE(1); GGL15..GCC MOROCCO SPEC&ELECTRICAL |
89751-48330 |
— | ||
|
89904B
|
89904B
89904-48231
Transmitter Sub-Assy, Electrical Key
[12.2008 - 07.2009] GGL15..GCC |
89904-48231 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-48233
Transmitter Sub-Assy, Electrical Key
[12.2008 - 07.2009] GGL15..GCC |
89904-48233 |
— | ||
|
89904B
|
89904B
89904-48232
Transmitter Sub-Assy, Electrical Key
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC; AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC; GGL15..RHD BRUN |
89904-48232 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-48233
Transmitter Sub-Assy, Electrical Key
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC; GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC; AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC; GGL15..RHD BRUN |
89904-48233 |
— | ||
|
89904B
|
89904B
89904-48241
Transmitter Sub-Assy, Electrical Key
[12.2008 - 07.2009] GGL15..GCC AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
89904-48241 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-48243
Transmitter Sub-Assy, Electrical Key
[12.2008 - 07.2009] GGL15..GCC AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
89904-48243 |
— | ||
|
89904B
|
89904B
89904-48242
Transmitter Sub-Assy, Electrical Key
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&AUTO & EASY C |
89904-48242 |
— | ||
| replacement | |||||
|
89904B
|
89904B
89904-48243
Transmitter Sub-Assy, Electrical Key
[11.2010 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); GGL15..LHD..EUR PHILIPPINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&AUTO & EASY C |
89904-48243 |
— | ||
|
89904B
|
89904B
89904-48243
Transmitter Sub-Assy, Electrical Key
[11.2012 - 08.2013] AGL10,GGL15..RHD MALAYSIA SPEC,TYPE A:REFER ILLUST.; AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE A:REFER ILLUST.; GGL15..GCC LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
89904-48243 |
— | ||
|
89904B
|
89904B
89904-48262
Transmitter Sub-Assy, Electrical Key
[08.2013 -] GGL15..LHD..EUR BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),TYPE A:REFER ILLUST.; GGL15..LHD..EUR BRAZIL SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE A:REFER ILLUST.; GGL15..LHD..EUR CH |
89904-48262 |
— | ||
|
89904B
|
89904B
89904-48271
Transmitter Sub-Assy, Electrical Key
[08.2009 - 03.2012] GGL15..GCC MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE C:REFER ILLUST. |
89904-48271 |
— | ||
|
89904B
|
89904B
89904-48281
Transmitter Sub-Assy, Electrical Key
[08.2009 - 03.2012] GGL15..GCC MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CAR D TYPE(1),TYPE C:REFER ILLUST. |
89904-48281 |
— | ||
|
89904B
|
89904B
89904-48631
Transmitter Sub-Assy, Electrical Key
[08.2009 - 03.2012] GGL15..GCC MOROCCO SPEC,TYPE C:REFER ILLUST. |
89904-48631 |
— | ||
|
89904B
|
89904B
89904-48641 Transmitter Sub-Assy, Electrical KeyELECTRICAL KEY [08.2009 - 03.2012] GGL15..GCC MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),TYPE C:REFER ILLUST. |
89904-48641 |
US $403.73 |
||
|
89904B
|
89904B
89904-48B30
Transmitter Sub-Assy, Electrical Key
[07.2009 - 03.2012] GGL15..GCC |
89904-48B30 |
— | ||
|
89904B
|
89904B
89904-48B40
Transmitter Sub-Assy, Electrical Key
[07.2009 - 03.2012] GGL15..GCC AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
89904-48B40 |
— | ||
|
89904C
|
89904C
89994-48010
Transmitter Sub-Assy, Electrical Key(Card Key)
[07.2009 - 08.2011] GGL15..GCC ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48010 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48290
Transmitter Sub-Assy, Electrical Key(Card Key)
[07.2009 - 08.2011] GGL15..GCC ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48290 |
— | ||
|
89904C
|
89904C
89994-48061
Transmitter Sub-Assy, Electrical Key(Card Key)
[12.2008 - 07.2009] GGL15..GCC ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48061 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48250
Transmitter Sub-Assy, Electrical Key(Card Key)
[12.2008 - 07.2009] GGL15..GCC ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48250 |
— | ||
|
89904C
|
89904C
89994-48062
Transmitter Sub-Assy, Electrical Key(Card Key)
[12.2010 - 04.2011] GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2 |
89994-48062 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48250
Transmitter Sub-Assy, Electrical Key(Card Key)
[12.2010 - 04.2011] GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2 |
89994-48250 |
— | ||
|
89904C
|
89904C
89994-48063
Transmitter Sub-Assy, Electrical Key(Card Key)
[05.2011 - 08.2011] GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2 |
89994-48063 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48250
Transmitter Sub-Assy, Electrical Key(Card Key)
[05.2011 - 08.2011] GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2 |
89994-48250 |
— | ||
|
89904C
|
89904C
89994-48091
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 08.2010] GGL15..GCC EGYPT SPEC&ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48091 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48261
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2009 - 08.2010] GGL15..GCC EGYPT SPEC&ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48261 |
— | ||
|
89904C
|
89904C
89994-48102
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2013 -] GGL15..GCC LATIN AMERICA SPEC W/O(CHILE)&ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48102 |
— | ||
|
89904C
|
89904C
89994-48250
Transmitter Sub-Assy, Electrical Key(Card Key)
[09.2011 - 03.2012] GGL15..LHD..EUR PHILIPPINE SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD THAILAND SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..RHD BRUNEI SPEC&ELECTRICAL KEY(2) & CARD TYPE(1); AGL10,GGL15..RHD MALAYSIA SPEC&ELECTRICAL KEY(2 |
89994-48250 |
— | ||
|
89904C
|
89904C
89994-48261
Transmitter Sub-Assy, Electrical Key(Card Key)
[12.2011 - 03.2012] AGL10,GGL15..EUR ELECTRICAL KEY(2) & CARD TYPE(1); GGL15..GCC MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48261 |
— | ||
|
89904C
|
89904C
89994-48290
Transmitter Sub-Assy, Electrical Key(Card Key)
[09.2011 - 03.2012] GGL15..GCC ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48290 |
— | ||
|
8975947010
|
8975947010
89759-47010 Screw, Door Control Transmitter |
89759-47010 |
US $1.79 |
||
|
9030118014
|
9030118014
90301-18014
New Genuine Part
|
90301-18014 |
— | ||
