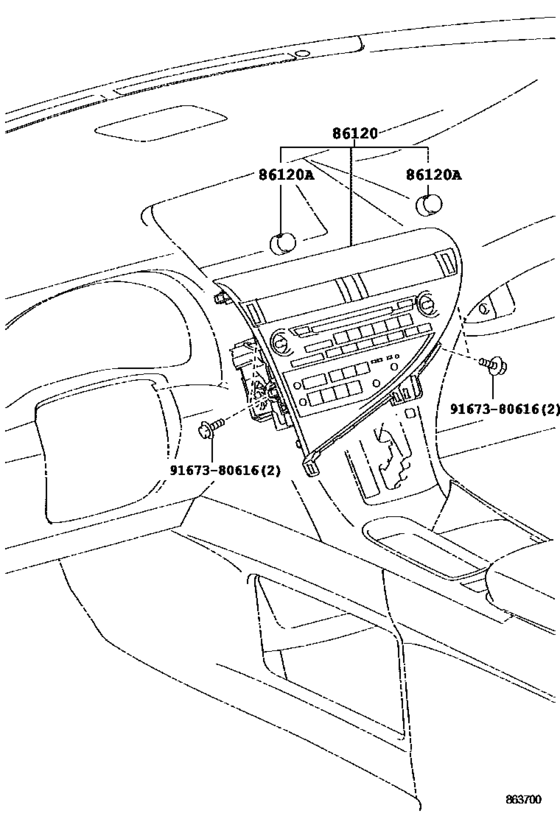

Radio Receiver & Amplifier & Condenser ([12.2008 - ] (0812- )GYL15..LHD..EUR ; (0812- )AGL10,GG L15,GYL10..LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-48J50
Receiver Assy, Radio
[12.2008 - 08.2010] GGL15..GCC PIONEER,ID=P2860; GGL15,GYL15..LHD..EUR PIONEER,ID=P2860,TAIWAN SPEC&AUDIO-CD CHANGER,9SPEAKER; GGL15..LHD..EUR PIONEER,ID=P2860,PHILIPPINE SPEC&AUDIO-CD CHANGER,9SPEAKER; GGL15..LHD..EUR PIONEER,ID=P2860,TYPE A:REFER ILLUST |
86120-48J50 |
— | ||
|
86120
|
86120
86120-48J80
Receiver Assy, Radio
[12.2008 - 03.2012] GGL15..GCC PIONEER,ID=P7534,AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION); GGL15..GCC PIONEER,ID=P7534,TYPE B:REFER ILLUST. |
86120-48J80 |
— | ||
|
86120
|
86120
86120-48K50
Receiver Assy, Radio
[12.2008 - 03.2012] GGL15..LHD..EUR PIONEER,ID=P2856,TAIWAN SPEC&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WI TH(DVD NAVIGATION); GGL15..GCC PIONEER,ID=P2856,AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIG ATION); GGL15..LHD..EU |
86120-48K50 |
— | ||
|
86120
|
86120
86120-48P70
Receiver Assy, Radio
[08.2010 - 03.2012] GGL15..GCC PIONEER,ID=P10015; GGL15,GYL15..LHD..EUR PIONEER,ID=P10015,TAIWAN SPEC&AUDIO-CD CHANGER,9SPEAKER; GGL15,GYL15..LHD..EUR PIONEER,ID=P10015,PHILIPPINE SPEC&AUDIO-CD CHANGER,9SPEAKER; GGL15..GCC PIONEER,ID=P10015,TYPE A:REFER I |
86120-48P70 |
— | ||
|
86120
|
86120
86120-48Q40
Receiver Assy, Radio
[03.2012 - 03.2014] GGL15,GYL15..GCC PIONEER,ID=P10173,TYPE A:REFER ILLUST.; AGL10,GGL15,GYL15..LHD..EUR PIONEER,ID=P10173,TAIWAN SPEC&AUDIO-CD CHANGER,9SPEAKER,TYPE A:REFER ILLUST.; GGL15,GYL15..LHD..EUR PIONEER,ID=P10173,PHILIPPINE SPEC&AUDIO-CD CHANGER |
86120-48Q40 |
— | ||
|
86120
|
86120
86120-48Q41
Receiver Assy, Radio
[03.2014 - 09.2015] GGL15,GYL15..GCC PIONEER,ID=P10926,TYPE A:REFER ILLUST.; AGL10,GGL15,GYL15..LHD..EUR PIONEER,ID=P10926,TAIWAN SPEC&AUDIO-CD CHANGER,9SPEAKER,TYPE A:REFER ILLUST.; GGL15,GYL15..LHD..EUR PIONEER,ID=P10926,PHILIPPINE SPEC&AUDIO-CD CHANGER |
86120-48Q41 |
— | ||
|
86120
|
86120
86120-48Q60
Receiver Assy, Radio
[03.2012 - 03.2014] GGL15,GYL15..LHD..EUR PIONEER,ID=P10170,CHILE SPEC&AUDIO-CD CHANGER,9SPEAKER,TYPE A:REFER ILLUST.; GGL15,GYL15..GCC PIONEER,ID=P10170,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
86120-48Q60 |
— | ||
|
86120
|
86120
86120-48Q61
Receiver Assy, Radio
[03.2014 - 09.2015] GGL15,GYL15..LHD..EUR PIONEER,ID=P10933,CHILE SPEC&AUDIO-CD CHANGER,9SPEAKER,TYPE A:REFER ILLUST.; GGL15,GYL15..GCC PIONEER,ID=P10933,LATIN AMERICA SPEC W/O(CHILE),TYPE A:REFER ILLUST. |
86120-48Q61 |
— | ||
|
86120
|
86120
86140-48020
Receiver Assy, Radio
[03.2012 - 03.2014] GGL15,GYL15..GCC PIONEER,ID=P10273,AUDIO-DISPLAY AUDIO,CD,12SPEAKER |
86140-48020 |
— | ||
|
86120
|
86120
86140-48021
Receiver Assy, Radio
[03.2014 - 09.2015] GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AUDIO-DISPLAY AUDIO,CD,12SPEAKER; GGL15,GYL15..GCC PIONEER,ID=P10919,AUDIO-DISPLAY AUDIO,CD,12SPEAKER; GGL15,GYL15..GCC PIONEER,ID=P10919,LATIN AMERICA SPEC W/O(CHILE)&AU |
86140-48021 |
— | ||
|
86120A
|
86120A
90010-22061
Knob, Radio Receiver Switch
[12.2008 - 03.2012] GGL15..GCC; GGL15,GYL15..LHD..EUR TAIWAN SPEC&AUDIO-CD CHANGER,9SPEAKER; GGL15,GYL15..LHD..EUR TAIWAN SPEC&AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVI GATION); GGL15..LHD..EUR TAIWAN SPEC&AUDIO-CD CHANGER,12S |
90010-22061 |
— | ||
|
86120A
|
86120A
90010-22089
Knob, Radio Receiver Switch
[03.2012 -] AGL10,GGL15,GYL15..LHD..EUR TAIWAN SPEC&AUDIO-DVD,15SPEAKER,MARK LEVINSON&EMV & NAVIGATION SYSTEM-WITH(HDD NAV IGATION); AGL10,GGL15..LHD..EUR TAIWAN SPEC&AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION); GGL15,GYL15..LHD..EUR |
90010-22089 |
— | ||
|
86120A
|
86120A
90010-22090
Knob, Radio Receiver Switch
[03.2012 -] AGL10,GGL15,GYL1#; GGL15..GCC MOROCCO SPEC&AUDIO-DISPLAY AUDIO,CD,SDARS,12SPEAKER; GGL15..EUR;GYL15..RHD AUDIO-DVD,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
90010-22090 |
— | ||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
