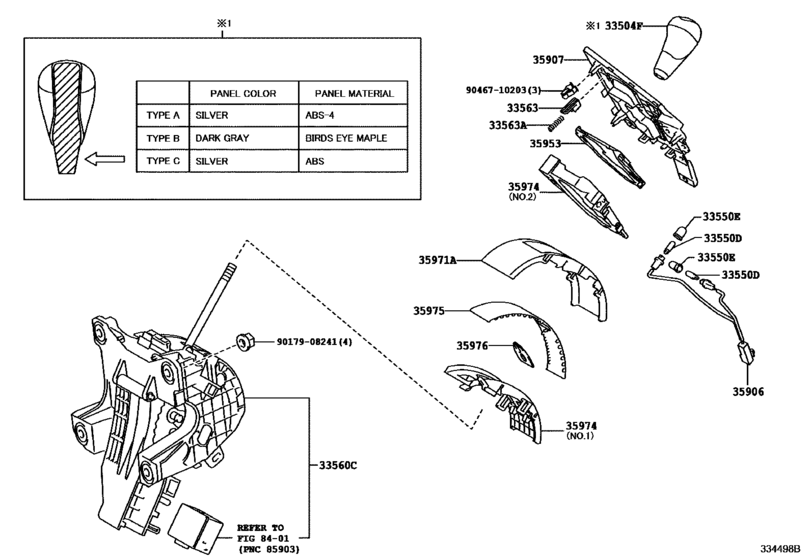

Shift Lever & Retainer ([03.2012 - ] (1203- )LHD) Diagram Toyota LEXUS RX
- Year
- 2008 - 2015
- Sales region
- General
- Frame
- GGL15
- grade
- STD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- RX350
- From
- 12.2008
- To
- 09.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RX350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-30341-C2 Knob Sub-Assy, Shift Lever[12.2008 - 03.2012] AGL10,GGL15,GYL1# BLACK,TRIM1#,2# |
33504-30341-C2 |
from US $101.68 |
||
|
33504F
|
33504F
33504-30341-E4 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.2008 - 03.2012] AGL10,GGL15,GYL1# DK. BROWN,TRIM0# |
33504-30341-E4 |
from US $101.68 |
||
|
33504F
|
33504F
33504-30351-20 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.2008 - 03.2009] GGL15 STEERING WHEEL-WOOD,BLACK & MD. BROWN,TRIM20 |
33504-30351-20 |
US $288.29 |
||
|
33504F
|
33504F
33504-30351-21 Knob Sub-Assy, Shift LeverSHIFT LEVER [02.2010 - 03.2012] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,BLACK & MD.BROWN,TRIM2# |
33504-30351-21 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-21 Knob Sub-Assy, Shift Lever[02.2010 - 03.2012] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,BLACK & MD.BROWN,TRIM2# |
33504-30352-21 |
US $288.29 |
||
|
33504F
|
33504F
33504-30351-C8 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.2008 - 03.2009] GGL15 STEERING WHEEL-WOOD,BLACK & DK. BROWN,TRIM1#,20 |
33504-30351-C8 |
US $347.98 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-C8 Knob Sub-Assy, Shift Lever[12.2008 - 03.2009] GGL15 STEERING WHEEL-WOOD,BLACK & DK. BROWN,TRIM1#,20 |
33504-30352-C8 |
US $240.24 |
||
|
33504F
|
33504F
33504-30351-E5 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.2008 - 02.2010] GGL15,GYL1# STEERING WHEEL-WOOD,DK. BROWN & MD. BROWN,TRIM0# |
33504-30351-E5 |
US $288.29 |
||
|
33504F
|
33504F
33504-30351-E6 Knob Sub-Assy, Shift LeverSHIFT LEVER [02.2010 - 03.2012] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,DK. BROWN & MD. BROWN,TRIM0# |
33504-30351-E6 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-E6 Knob Sub-Assy, Shift Lever[02.2010 - 03.2012] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,DK. BROWN & MD. BROWN,TRIM0# |
33504-30352-E6 |
US $288.29 |
||
|
33504F
|
33504F
33504-30352-24 Knob Sub-Assy, Shift Lever[03.2012 -] GYL10 STEERING WHEEL-WOOD,BLACK & DARK GRAY,TRIM1#,2#,TYPE B:REFER ILLUST.; AGL10,GGL15,GYL15..EUR STEERING WHEEL-WOOD,BLACK & DARK GRAY,TRIM1#,2#,3#,TYPE B:REFER ILLUST.; GGL15,GYL15..GCC STEERING WHEEL-WOOD,BLACK & DARK GRAY,TRIM2#,3#,TYPE B |
33504-30352-24 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-C8 Knob Sub-Assy, Shift Lever[03.2012 -] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,BLACK & DK.BROWN,TRIM4#,TYPE B:REFER ILLUST.; AGL10,GGL15,GYL1#..EUR STEERING WHEEL-WOOD,WITH(STEERING HEATER),BLACK & DK.BROWN,TRIM4#,TYPE B:REFER ILL UST. |
33504-30352-C8 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-E3 Knob Sub-Assy, Shift Lever[03.2012 -] AGL10,GGL15,GYL1# STEERING WHEEL-WOOD,DK.BROWN & DK.BROWN,TRIM0#,TYPE B:REFER ILLUST.; AGL10,GGL15,GYL1#..EUR STEERING WHEEL-WOOD,WITH(STEERING HEATER),DK.BROWN & DK.BROWN,TRIM0#,TYPE B:REFER ILLUST. |
33504-30352-E3 |
US $240.24 |
||
|
33504F
|
33504F
33504-53100-C0 Knob Sub-Assy, Shift Lever[03.2012 -] GGL15 STEERING WHEEL-F SPORT,WITH(PADDLE SWITCH),BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLU ST.; GYL15 STEERING WHEEL-F SPORT,BLACK,TRIM1#,2#,3#,4#,TYPE C:REFER ILLUST. |
33504-53100-C0 |
US $101.68 |
||
|
33550D
|
33550D
90981-11040 Bulb, Position Indicator Lamp[12.2008 - 03.2012] AGL10,GGL15,GYL1# 12V 2W |
90981-11040 |
from US $2.09 |
||
|
33550E
|
33550E
35956-48010 Cap, Position Indicator LampPOSITION INDICATOR LAMP [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
35956-48010 |
US $1.92 |
||
|
33560C
|
33560C
33560-48380
Lever Assy, Shift, Lower
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
33560-48380 |
— | ||
|
33563
|
33563
33563-48130-C0
Button, Shift Lock Release
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD BLACK,TRIM1#,2# |
33563-48130-C0 |
— | ||
|
33563
|
33563
33563-48130-E0
Button, Shift Lock Release
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD DK. BROWN,TRIM0# |
33563-48130-E0 |
— | ||
|
33563A
|
33563A
33866-12040 Spring, Compression (For Shift Lock Release Button)COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
33866-12040 |
US $0.44 |
||
|
35906
|
35906
35906-48110 Wire Sub-Assy, Indicator LampINDICATOR LAMP [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
35906-48110 |
US $17.37 |
||
|
35907
|
35907
35907-48120-C0
Housing Sub-Assy, Position Indicator (For Floor Shift)
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD BLACK,TRIM1#,2# |
35907-48120-C0 |
— | ||
|
35907
|
35907
35907-48120-E0
Housing Sub-Assy, Position Indicator (For Floor Shift)
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD DK. BROWN,TRIM0# |
35907-48120-E0 |
— | ||
|
35953
|
35953
35953-48110
Guide, Position Indicator Light
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
35953-48110 |
— | ||
|
35971A
|
35971A
35971-48050
Housing, Position Indicator, Upper
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD |
35971-48050 |
— | ||
|
35974
|
35974
35974-48120
Housing, Position Indicator, Lower
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD NO.1 |
35974-48120 |
— | ||
|
35974
|
35974
35974-48140
Housing, Position Indicator, Lower
[12.2008 - 03.2012] AGL10,GGL15,GYL1#..LHD NO.2 |
35974-48140 |
— | ||
|
35975
|
35975
35975-48070 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
35975-48070 |
US $6.41 |
||
|
35976
|
35976
35976-48050 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [12.2008 - 03.2012] AGL10,GGL15,GYL1# |
35976-48050 |
US $6.99 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.92 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
