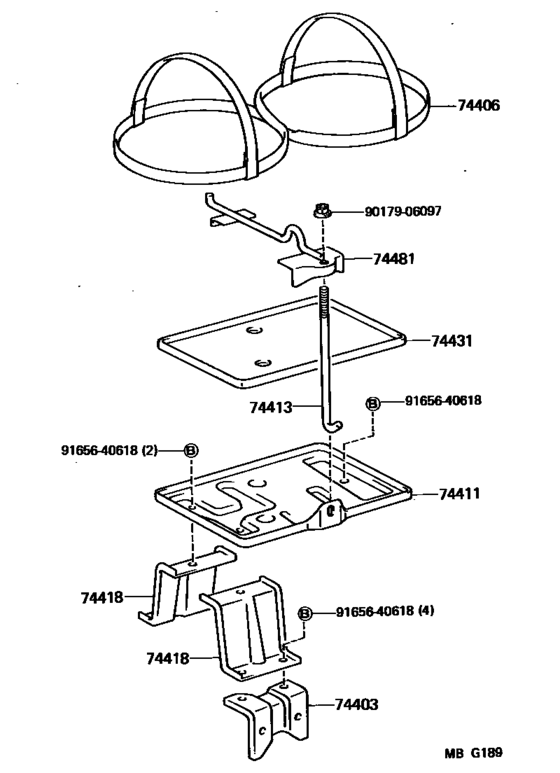

Battery Carrier ([06.1984 - 08.1985] (8310-8508)CM20..V5D ; (8406-8508)CM20) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74403
|
74403
74403-95700
Support Sub-Assy, Battery Carrier
[06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74403-95700 |
— | ||
|
74406
|
74406
74446-95702
Belt Sub-Assy, Battery
[10.1982 - 08.1985] CM20..V,WG |
74446-95702 |
— | ||
|
74411
|
74411
74410-95705 Carrier, BatteryBATTERY [10.1982 - 08.1985] CM20,YM21..WG;CM20,YM20..V4D..ST |
74410-95705 |
US $200.93 |
||
|
74411
|
74411
74411-95709
Carrier, Battery
[06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74411-95709 |
— | ||
|
74413
|
74413
74451-95700 Bolt, Battery ClampBATTERY CLAMP [06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74451-95700 |
US $9.17 |
||
|
74413
|
74413
74451-95702 Bolt, Battery ClampBATTERY CLAMP [10.1982 - 08.1985] CM20,YM21..WG;CM20,YM20..V4D..ST |
74451-95702 |
US $5.24 |
||
|
74418
|
74418
74418-95706
Reinforcement, Battery Bracket, Front
[06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74418-95706 |
— | ||
|
74431
|
74431
74431-14030
Carrier, Battery
[06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74431-14030 |
— | ||
| replacement | |||||
|
74431
|
74431
74431-52040 Tray, BatteryBATTERY [06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74431-52040 |
from US $27.85 |
||
|
74431
|
74431
74431-95700
Tray, Battery
[10.1982 - 08.1985] YM20..V4D..ST; CM20..V4D;CM20,YM21..WG |
74431-95700 |
— | ||
|
74481
|
74481
74406-95701 Clamp, Battery Hold DownBATTERY HOLD DOWN [10.1982 - 08.1985] CM20..5F;CM20..V4D |
74406-95701 |
US $25.48 |
||
|
74481
|
74481
74406-95705
Clamp, Battery Hold Down
[06.1984 - 08.1985] CM20..V4D..SRF..VSG..03S NTT |
74406-95705 |
— | ||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
