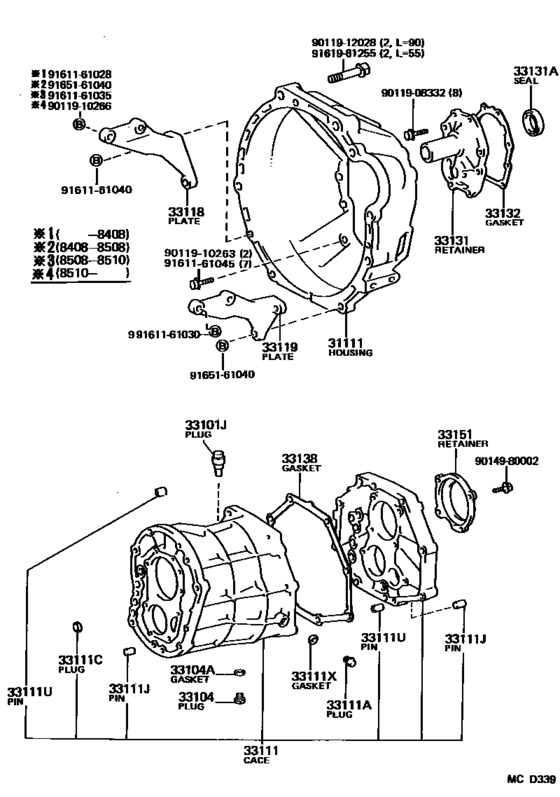

Clutch Housing & Transmission Case (Mtm) ([10.1982 - ] (8210- )CM2#) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- CM20V
- grade
- DLX
- body
- V
- Roof
- HRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22120
Housing, Clutch
[10.1982 - 09.1986] CM2# |
31111-22120 |
— | ||
|
33101J
|
33101J
90930-03075 Plug, Breather[10.1982 - 11.1982] CM2#,YM20,21..MTM |
90930-03075 |
from US $3.88 |
||
|
33101J
|
33101J
90930-03085 Plug, Breather[11.1982 - 09.1986] CM2#,YM20,21..MTM |
90930-03085 |
US $6.33 |
||
|
33104
|
33104
90341-18021 Plug, Filler(Hv)[12.1983 - 09.1986] CM2#,YM20,21..MTM |
90341-18021 |
from US $2.32 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[10.1979 - 12.1983] CM2#,KM2#,TM20,YM2#..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18007
Gasket(For Water Hole)
[09.1981 - 10.1984] CM2#,KM2#,TM20,YM2#..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33104A
|
33104A
90430-18008 Gasket[09.1981 - 10.1984] CM2#,KM2#,TM20,YM2#..MTM |
90430-18008 |
from US $0.90 |
||
|
33104A
|
33104A
90430-18008 Gasket[10.1984 - 09.1986] CM2#,KM21,YM2#..MTM |
90430-18008 |
from US $0.90 |
||
|
33111
|
33111
33101-28010 Case, Manual Transmission[10.1982 - 09.1986] CM2#,YM20,21..MTM |
33101-28010 |
US $733.82 |
||
| replacement | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[10.1982 - 09.1986] CM2#,YM20,21..MTM |
33101-26060 |
US $438.55 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[10.1982 - 04.1983] CM2#,YM20,21..MTM |
90341-18002 |
from US $3.59 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[04.1983 - 09.1986] CM2#,YM20,21..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[10.1982 - 09.1986] CM2#,YM20,21..MTM 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[10.1982 - 09.1986] CM2#,YM20,21..MTM 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[10.1982 - 09.1986] CM2#,YM20,21..MTM 長さ＝１１，外径＝１１,L=11,OD=11 |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[10.1982 - 09.1986] CM2#,YM20,21..MTM 長さ＝１４，外径＝１５,L=14,OD=15 |
90253-15001 |
from US $1.07 |
||
|
33111X
|
33111X
90430-18007
Gasket(For Water Hole)
[09.1981 - 10.1984] CM2#,KM2#,TM20,YM2#..MTM |
90430-18007 |
— | ||
| replacement | |||||
|
33111X
|
33111X
90430-18008 Gasket[09.1981 - 10.1984] CM2#,KM2#,TM20,YM2#..MTM |
90430-18008 |
from US $0.90 |
||
|
33111X
|
33111X
90430-18008 Gasket[10.1984 - 09.1986] CM2#,KM21,YM2#..MTM |
90430-18008 |
from US $0.90 |
||
|
33118
|
33118
33118-14030 Plate, Stiffener, Rh(Mtm)[10.1982 - 10.1984] CM2# |
33118-14030 |
US $49.36 |
||
|
33118
|
33118
33118-14031 Plate, Stiffener, Rh(Mtm)[10.1984 - 08.1985] CM2# |
33118-14031 |
US $49.07 |
||
| replacements | |||||
|
33118
|
33118
33118-14033 Plate, Stiffener, Rh(Mtm)[10.1984 - 08.1985] CM2# |
33118-14033 |
US $43.24 |
||
|
33118
|
33118
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)[10.1984 - 08.1985] CM2# |
91612-61035 |
from US $1.13 |
||
|
33118
|
33118
33118-14032 Plate, Stiffener, Rh(Mtm)[08.1985 - 09.1986] CM2# |
33118-14032 |
US $42.37 |
||
| replacement | |||||
|
33118
|
33118
33118-14033 Plate, Stiffener, Rh(Mtm)[08.1985 - 09.1986] CM2# |
33118-14033 |
US $43.24 |
||
|
33119
|
33119
33119-14050 Plate, Stiffener, Lh(Mtm)[10.1982 - 09.1986] CM2# |
33119-14050 |
US $43.97 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[01.1984 - 09.1986] CM2#,YM20,21..MTM |
33131-26020 |
US $70.41 |
||
|
33131
|
33131
33131-28010 Retainer, Bearing, Front(Mtm)[10.1982 - 01.1984] CM2#,YM20,21..MTM |
33131-28010 |
US $74.26 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[01.1981 - 09.1986] CM2#,TM20,YM20,21..5F,5H |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[10.1982 - 09.1986] CM2#,YM20,21..MTM |
33132-28010 |
from US $3.55 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[10.1982 - 09.1986] CM2#,YM20,21..MTM |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[10.1982 - 09.1986] CM2#,YM20,21..MTM |
33151-28010 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9011910263
|
9011910263
90119-10263
New Genuine Part
|
90119-10263 |
— | ||
| replacement | |||||
|
9011910263
|
9011910263
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9011910266
|
9011910266
90119-10266 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
90119-10266 |
US $1.75 |
||
| replacement | |||||
|
9011910266
|
9011910266
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9011912028
|
9011912028
90119-12028 Bolt(For Transmission Case & Engine Setting) |
90119-12028 |
US $4.80 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
