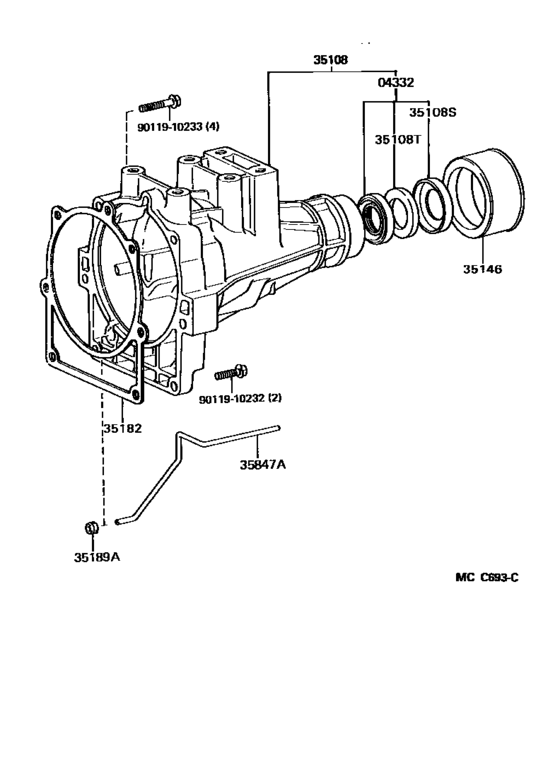

Extension Housing (Atm) ([10.1986 - ] A41,A42D (8610- )ATM) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM55
- grade
- DX
- body
- SJL
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04332
|
04332
04332-30020
Seal Kit, Oil(For Automatic Extention Housing)
[10.1986 - 11.1987] CM51,55,KM51..ATM |
04332-30020 |
— | ||
| replacement | |||||
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[10.1986 - 11.1987] CM51,55,KM51..ATM |
04332-30030 |
from US $13.08 |
||
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[11.1987 -] CM51,55,KM51,YM55..ATM |
04332-30030 |
from US $13.08 |
||
|
35108
|
35108
35108-27010 Housing Sub-Assy, Extension (Atm)[10.1986 - 07.1988] CM51,55..4HC |
35108-27010 |
US $380.02 |
||
| replacement | |||||
|
35108
|
35108
35108-27011 Housing Sub-Assy, Extension (Atm)[10.1986 - 07.1988] CM51,55..4HC |
35108-27011 |
US $378.56 |
||
|
35108
|
35108
35108-27011 Housing Sub-Assy, Extension (Atm)[07.1988 -] CM51,55..4HC |
35108-27011 |
US $378.56 |
||
|
35108S
|
35108S
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[10.1986 -] CM51,55,KM51,YM55..ATM |
33145-30010 |
from US $2.30 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[10.1986 -] CM51,55,KM51,YM55..ATM |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[10.1986 - 11.1987] CM51,55,KM51..ATM |
33146-30010 |
— | ||
| replacement | |||||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[10.1986 - 11.1987] CM51,55,KM51..ATM |
33146-30020 |
from US $17.74 |
||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[09.1994 -] CM51,55,KM51,YM55..ATM |
33146-30020 |
from US $17.74 |
||
|
35182
|
35182
35182-22010
Gasket, Extension Housing (Atm)
[10.1986 - 12.1990] CM51,55,KM51..ATM |
35182-22010 |
— | ||
| replacement | |||||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[10.1986 - 12.1990] CM51,55,KM51..ATM |
35182-28010 |
from US $7.14 |
||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[12.1990 -] CM51,55,KM51,YM55..ATM |
35182-28010 |
from US $7.14 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[10.1986 -] CM51,55,KM51,YM55..ATM |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-27010 Tube, Extension Housing Bush Apply[10.1986 -] CM51,55,KM51..ATM |
35847-27010 |
US $13.83 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
