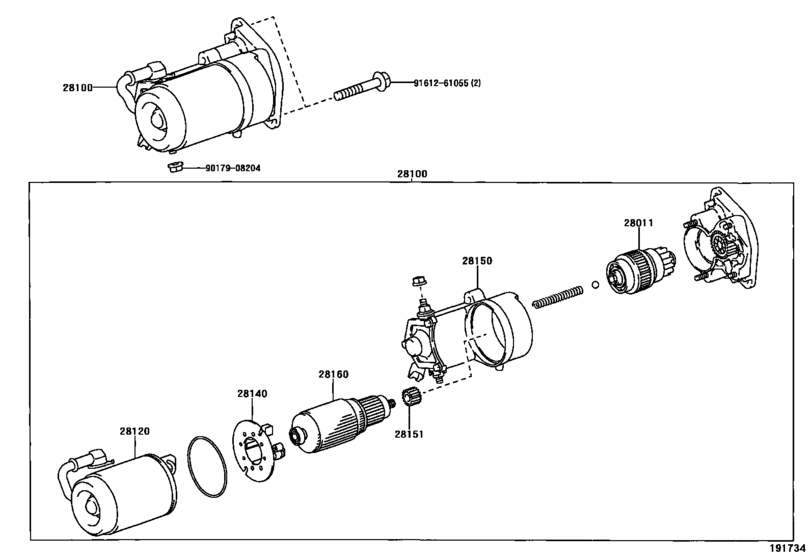

Starter ([08.2002 - 08.2004] 12V 2.2KW (0208-0408)3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM70
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64020 Clutch Sub-Assy, Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.2KW |
28011-64020 |
US $203.84 |
||
|
28011
|
28011
28011-64280 Clutch Sub-Assy, Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.0KW |
28011-64280 |
US $364 |
||
|
28100
|
28100
28100-64380 Starter Assy[06.1999 - 08.2002] 3CE..CM7#,8# １２Ｖ ２．０ＫＷ |
28100-64380 |
US $1,820 |
||
| replacement | |||||
|
28100
|
28100
28100-64420 Starter Assy[06.1999 - 08.2002] 3CE..CM7#,8# １２Ｖ ２．０ＫＷ |
28100-64420 |
US $1,994.72 |
||
|
28100
|
28100
28100-64390 Starter Assy[06.1999 - 08.2002] 3CE..CM7#,8# １２Ｖ ２．２ＫＷ |
28100-64390 |
US $1,994.72 |
||
| replacement | |||||
|
28100
|
28100
28100-64420 Starter Assy[06.1999 - 08.2002] 3CE..CM7#,8# １２Ｖ ２．２ＫＷ |
28100-64420 |
US $1,994.72 |
||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.0KW |
28120-54380 |
US $182.40 |
||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.2KW |
28120-64040 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.0KW |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.2KW |
28140-64040 |
from US $35.49 |
||
|
28150
|
28150
28150-64310 Switch Assy, Magnet Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.2KW |
28150-64310 |
US $311.58 |
||
|
28150
|
28150
28150-64380 Switch Assy, Magnet Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.0KW |
28150-64380 |
US $285.38 |
||
|
28151
|
28151
28251-54070
Plate, Lead, Switch Connecting
[06.1999 - 08.2002] 3CE..CM7#,8# |
28251-54070 |
— | ||
|
28160
|
28160
28160-54380
Armature Assy, Starter
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.0KW |
28160-54380 |
— | ||
|
28160
|
28160
28160-64041 Armature Assy, Starter[06.1999 - 08.2002] 3CE..CM7#,8# 12V 2.2KW |
28160-64041 |
US $242.86 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261055
|
9161261055
91612-61055 Bolt (For Transfer Case) |
91612-61055 |
US $2.33 |
||
