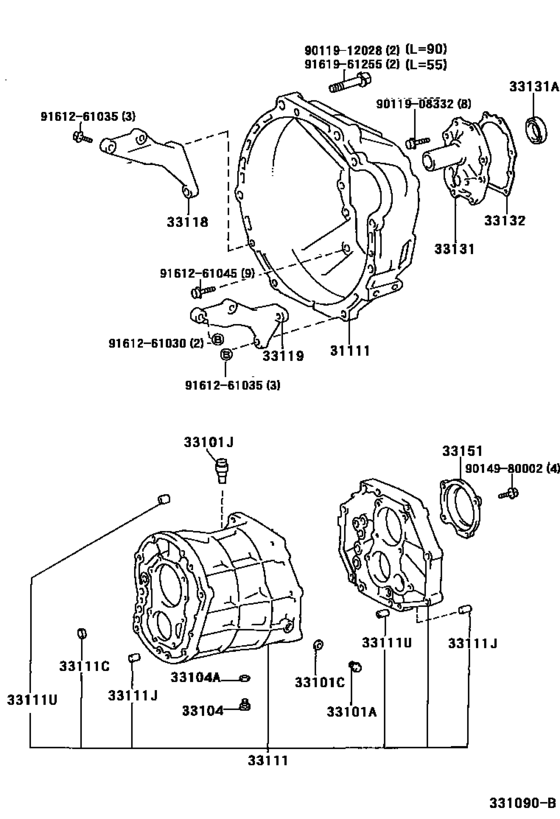

Clutch Housing & Transmission Case (Mtm) ([06.1999 - ] G52 (9906- )CM7#,8#..5H) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM70
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- SJL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- IV3
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-27050 Housing, Clutch[06.1999 - 08.2002] CM7#,8#..5H |
31111-27050 |
US $387.30 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90430-T0021 |
US $1.01 |
||
|
33101J
|
33101J
90930-03085 Plug, Breather[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90930-03085 |
US $6.33 |
||
|
33104
|
33104
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90341-18032 |
from US $3.76 |
||
|
33104A
|
33104A
90430-18008 Gasket[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-35060
Case, Manual Transmission
[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
33101-35060 |
— | ||
| replacement | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
33101-26060 |
US $438.55 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H 長さ＝１４，外径＝１５ |
90253-15001 |
from US $1.07 |
||
|
33118
|
33118
33118-14033 Plate, Stiffener, Rh(Mtm)[06.1999 - 08.2002] CM7#,8#..5H |
33118-14033 |
US $43.24 |
||
|
33119
|
33119
33119-14050 Plate, Stiffener, Lh(Mtm)[06.1999 - 08.2002] CM7#,8#..5H |
33119-14050 |
US $43.97 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
90311-30014 |
from US $5.38 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
33132-28010 |
from US $3.55 |
||
|
33151
|
33151
33151-35030 Retainer, Output Shaft Rear Bearing(Mtm)[06.1999 - 08.2002] CM7#,8#,KM7#,8#..5H |
33151-35030 |
from US $20.16 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9011912028
|
9011912028
90119-12028 Bolt(For Transmission Case & Engine Setting) |
90119-12028 |
US $4.80 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
