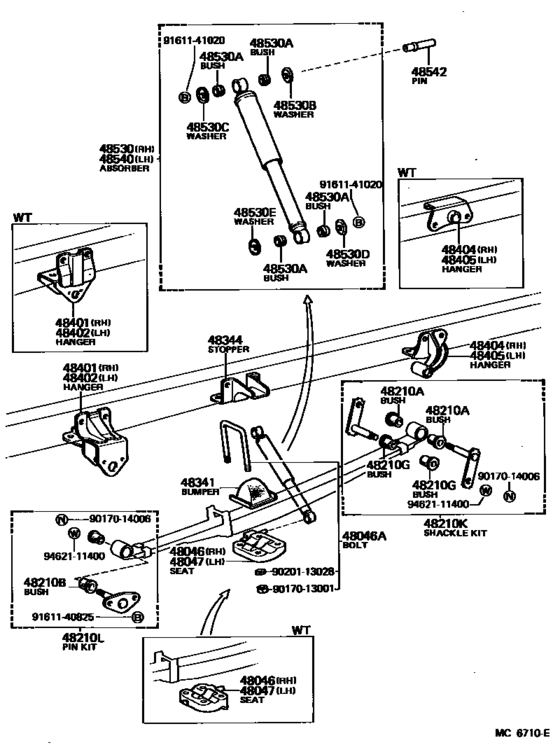

Rear Spring & Shock Absorber ([10.1979 - ] (7910- )TR) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- KM21
- grade
- DLX
- body
- TR
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- DECK
- T2
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 09.1986
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- IV
- Deck(Material)
- TS
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046
|
48046
48046-27030 Seat Sub-Assy, Spring U Bolt, RhSPRING U BOLT, RH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48046-27030 |
US $51.11 |
||
|
48046A
|
48046A
90118-13168 Bolt, U(For Rear Spring)[10.1979 - 11.1983] CM2#,KM2#,YM25..T2 |
90118-13168 |
US $19.66 |
||
| replacement | |||||
|
48046A
|
48046A
90117-13006 Bolt, U(for Rear Spring)[10.1979 - 11.1983] CM2#,KM2#,YM25..T2 |
90117-13006 |
US $21.69 |
||
|
48046A
|
48046A
90118-13219 Bolt, U(For Rear Spring)[11.1983 - 09.1986] CM2#,KM21,YM25..TR |
90118-13219 |
US $19.51 |
||
| replacement | |||||
|
48046A
|
48046A
90117-13006 Bolt, U(for Rear Spring)[11.1983 - 09.1986] CM2#,KM21,YM25..TR |
90117-13006 |
US $21.69 |
||
|
48047
|
48047
48047-27030 Seat Sub-Assy, Spring U Bolt, LhSPRING U BOLT, LH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48047-27030 |
US $55.47 |
||
|
48210A
|
48210A
90385-18003 Bush(For Rear Spring Shackle Upper)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18003 |
US $5.24 |
||
| replacement | |||||
|
48210A
|
48210A
90385-18046 Bush(For Front Spring Shackle)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18046 |
from US $2.65 |
||
|
48210B
|
48210B
90385-18003 Bush(For Rear Spring Shackle Upper)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18003 |
US $5.24 |
||
| replacement | |||||
|
48210B
|
48210B
90385-18046 Bush(For Front Spring Shackle)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18046 |
from US $2.65 |
||
|
48210G
|
48210G
90385-18003 Bush(For Rear Spring Shackle Upper)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18003 |
US $5.24 |
||
| replacement | |||||
|
48210G
|
48210G
90385-18046 Bush(For Front Spring Shackle)[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
90385-18046 |
from US $2.65 |
||
|
48210K
|
48210K
04483-27011 Shackle Kit, Rear Spring[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
04483-27011 |
US $54.45 |
||
|
48210L
|
48210L
04484-27030 Pin Kit, Rear SpringREAR SPRING [01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
04484-27030 |
US $30.43 |
||
| replacement | |||||
|
48210L
|
48210L
04482-35030 Pin Kit, Front Spring[01.1981 - 09.1986] CM2#,KM2#,YM25..TR |
04482-35030 |
US $32.26 |
||
|
48341
|
48341
48341-28030 Bumper, Rear SpringREAR SPRING [10.1982 - 09.1986] CM2#,KM21,YM25..T2 |
48341-28030 |
US $26.50 |
||
|
48401
|
48401
48414-27040 Bracket Sub-Assy, Rear Spring, Front RhREAR SPRING, FRONT RH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48414-27040 |
US $78.62 |
||
|
48402
|
48402
48414-27040 Bracket Sub-Assy, Rear Spring, Front RhREAR SPRING, FRONT RH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48414-27040 |
US $78.62 |
||
|
48404
|
48404
48416-27040 Bracket Sub-Assy, Rear Spring, Rear RhREAR SPRING, REAR RH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48416-27040 |
US $64.65 |
||
|
48405
|
48405
48416-27040 Bracket Sub-Assy, Rear Spring, Rear RhREAR SPRING, REAR RH [10.1979 - 09.1986] CM2#,KM2#,YM25..T2 |
48416-27040 |
US $64.65 |
||
|
48530
|
48530
48531-80019 Absorber Assy, Shock, Rear Rh[10.1982 - 09.1986] CM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU W/O TAIL GATE |
48531-80019 |
US $93.18 |
||
| replacement | |||||
|
48530
|
48530
48531-80595 Absorber Assy, Shock, Rear Rh[10.1982 - 09.1986] CM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU W/O TAIL GATE |
48531-80595 |
US $94.64 |
||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
90385-16007 |
from US $1.81 |
||
|
48530B
|
48530B
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
90948-03004 |
from US $1.29 |
||
|
48530C
|
48530C
90948-03007 Washer, Front Shock Absorber Cushion, No.1[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
90948-03007 |
US $1.97 |
||
|
48530D
|
48530D
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
90948-03004 |
from US $1.29 |
||
|
48530E
|
48530E
90948-03007 Washer, Front Shock Absorber Cushion, No.1[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
90948-03007 |
US $1.97 |
||
|
48540
|
48540
48531-80019 Absorber Assy, Shock, Rear Rh[10.1982 - 09.1986] CM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU W/O TAIL GATE |
48531-80019 |
US $93.18 |
||
| replacement | |||||
|
48540
|
48540
48531-80595 Absorber Assy, Shock, Rear Rh[10.1982 - 09.1986] CM25,26,YM25;KM21..WT..IV; CM26..TS..CBU;CM20,25,KM21,YM25..T2..CBU W/O TAIL GATE |
48531-80595 |
US $94.64 |
||
|
48542
|
48542
48542-26020 Pin, Shock Absorber Upper Pivot, Rear[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
48542-26020 |
US $8.30 |
||
|
9017013001
|
9017013001
90170-13001 New Genuine Part |
90170-13001 |
US $2.33 |
||
|
9017014006
|
9017014006
90170-14006 Nut |
90170-14006 |
from US $2.15 |
||
|
9020113028
|
9020113028
90201-13028
New Genuine Part
|
90201-13028 |
— | ||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.87 |
||
