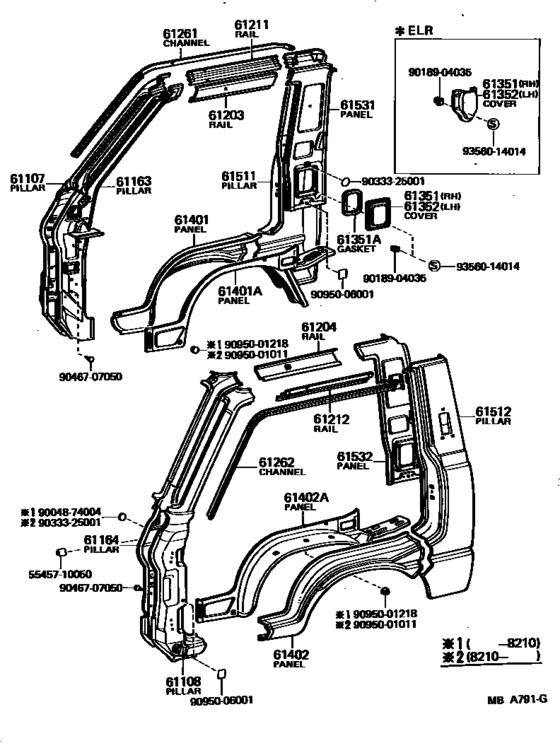

Side Member ([10.1979 - ] (7910- )TR) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- KM21
- grade
- DLX
- body
- TR
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- DECK
- T2
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 09.1986
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- IV
- Deck(Material)
- TS
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61107
|
61107
61103-95713 Pillar Sub-Assy, Front Body Outer, RhFRONT BODY OUTER, RH [10.1982 - 09.1986] CM2#,KM21,YM25..TR; CM20,KM21,YM20,21..(HRF,SRF)..(CS7,DLX,GXL,STD,SUP,SW,XL) |
61103-95713 |
US $247.52 |
||
|
61108
|
61108
61104-95713 Pillar Sub-Assy, Front Body Outer, LhFRONT BODY OUTER, LH [10.1982 - 09.1986] CM2#,KM21,YM25..TR; CM20,KM21,YM20,21..(HRF,SRF)..(DLX,GXL,STD,SUP,SW,XL) |
61104-95713 |
US $247.52 |
||
|
61163
|
61163
61105-95709 Pillar, Front Body, Inner RhFRONT BODY, INNER RH [10.1982 - 09.1986] CM2#,KM21,YM2# |
61105-95709 |
US $216.94 |
||
|
61164
|
61164
61106-95708 Pillar, Front Body, Inner LhFRONT BODY, INNER LH [10.1982 - 09.1986] CM2#,KM21,YM2# |
61106-95708 |
US $216.94 |
||
|
61203
|
61203
61231-95701
Rail Sub-Assy, Roof Side, Inner Rh
[10.1982 - 09.1986] CM2#,KM21,YM25..TR; CM20,KM21,YM20,21..(HRF,SRF)..(CS7,DLX,GXL,STD,SUP,SW,XL) |
61231-95701 |
— | ||
|
61204
|
61204
61232-95702 Rail Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [10.1982 - 09.1986] CM2#,KM21,YM25..TR |
61232-95702 |
US $52.27 |
||
|
61211
|
61211
61211-87402
Rail, Roof Side, Outer Rh
[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
61211-87402 |
— | ||
|
61212
|
61212
61212-87402 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
61212-87402 |
US $75.71 |
||
|
61261
|
61261
61223-87401
Channel, Roof Drip, Rh
[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
61223-87401 |
— | ||
|
61262
|
61262
61224-87401 Channel, Roof Drip, LhROOF DRIP, LH [10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
61224-87401 |
US $99.01 |
||
|
61351
|
61351
61509-87401
Cover, Center Body, Inner Rh
[10.1979 - 08.1985] CM2#,KM2#,YM25..TR |
61509-87401 |
— | ||
|
61351
|
61351
61539-87402
Cover, Center Body, Inner Rh
[01.1981 - 09.1986] CM2#,KM2#,YM25..TR W/*ELR |
61539-87402 |
— | ||
|
61351A
|
61351A
61519-87403
Gasket(For Center Body Inner Cover)
[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
61519-87403 |
— | ||
|
61352
|
61352
61509-87401
Cover, Center Body, Inner Rh
[10.1979 - 08.1985] CM2#,KM2#,YM25..TR |
61509-87401 |
— | ||
|
61352
|
61352
61539-87402
Cover, Center Body, Inner Rh
[01.1981 - 09.1986] CM2#,KM2#,YM25..TR W/*ELR |
61539-87402 |
— | ||
|
61401
|
61401
61411-95701 Panel Sub-Assy, Fender, RhFENDER, RH [10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
61411-95701 |
US $314.50 |
||
|
61401A
|
61401A
61403-95700
Panel Sub-Assy, Fender, Inner Rh
[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
61403-95700 |
— | ||
|
61402
|
61402
61412-95701 Panel Sub-Assy, Fender, LhFENDER, LH [10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
61412-95701 |
US $314.50 |
||
|
61402A
|
61402A
61404-95701
Panel Sub-Assy, Fender, Inner Lh
[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
61404-95701 |
— | ||
|
61511
|
61511
61501-87402 Pillar, Quarter Lock, RhQUARTER LOCK, RH [10.1982 - 09.1986] CM2#,KM21,YM25..TR |
61501-87402 |
US $295.57 |
||
|
61512
|
61512
61502-95700 Pillar, Quarter Lock, LhQUARTER LOCK, LH [10.1982 - 09.1986] CM2#,KM21,YM25..TR |
61502-95700 |
US $279.55 |
||
|
61531
|
61531
61023-95700
Panel, Back Corner, Inner Rh
[10.1982 - 09.1986] CM2#,KM21,YM25..TR W/*ELR |
61023-95700 |
— | ||
|
61531
|
61531
61023-95701 Panel, Back Corner, Inner RhBACK CORNER, INNER RH [10.1982 - 08.1985] CM2#,KM21,YM25..TR |
61023-95701 |
US $189.28 |
||
|
61532
|
61532
61024-95700
Panel, Back Corner, Inner Lh
[10.1982 - 09.1986] CM2#,KM21,YM25..TR W/*ELR |
61024-95700 |
— | ||
|
61532
|
61532
61024-95701 Panel, Back Corner, Inner LhBACK CORNER, INNER LH [10.1982 - 08.1985] CM2#,KM21,YM25..TR |
61024-95701 |
US $189.28 |
||
|
5545710050
|
5545710050
55457-10050 Spacer, Instrument Panel Safety PadINSTRUMENT PANEL SAFETY PAD |
55457-10050 |
US $2.18 |
||
| replacement | |||||
|
5545710050
|
5545710050
55457-12010 Spacer, Instrument Panel Safety PadINSTRUMENT PANEL SAEFTY PAD |
55457-12010 |
US $2.48 |
||
|
9004874004
|
9004874004
90048-74004 Cover, Hole(For Lower Back) |
90048-74004 |
US $0.90 |
||
|
9018904035
|
9018904035
90189-04035 GROMMET |
90189-04035 |
US $2.15 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9046707050
|
9046707050
90467-07050
Clip, Step Plate Cover
|
90467-07050 |
— | ||
| replacement | |||||
|
9046707050
|
9046707050
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $3.05 |
||
|
9095001218
|
9095001218
90950-01218 New Genuine Part |
90950-01218 |
US $1.75 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
