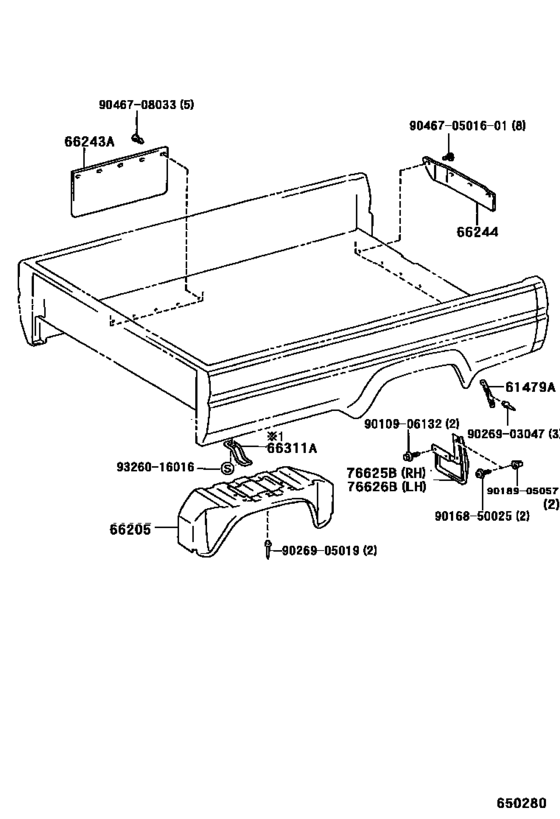

Rear Body Floor & Fender ([06.1999 - 08.2002] (9906-0208)TJ) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- KM70
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DECK
- SJL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2002
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61479A
|
61479A
61479-95701 Bracket, Front Mudguard[06.1999 - 08.2002] KM70..TJ |
61479-95701 |
US $4.22 |
||
|
66205
|
66205
66205-95700 Fender Sub-Assy, Rear No.1[06.1999 - 08.2002] KM70..TJ |
66205-95700 |
US $43.53 |
||
|
66243A
|
66243A
66243-95701 Protector, Rear Body, No.1[06.1999 - 08.2002] KM70..TJ |
66243-95701 |
US $29.27 |
||
|
66244
|
66244
66244-95700 Protector, Rear Body, No.2[06.1999 - 08.2002] KM70..1SO;KM70..GUT;CM80,KM80..T1 |
66244-95700 |
US $29.27 |
||
|
66311A
|
66311A
66311-95704 Hook, Rope, No.1[06.1999 - 08.2002] KM70..TJ TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
66311-95704 |
US $9.03 |
||
|
66311A
|
66311A
66311-95J00 Hook, Rope[06.1999 - 08.2002] KM70..TJ TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
66311-95J00 |
US $5.37 |
||
|
76625B
|
76625B
76625-27010 Mudguard, Rear Body, Rh[06.1999 - 08.2002] KM70..1SO;KM70..GUT;CM80,KM80..T1 |
76625-27010 |
US $34.94 |
||
|
76626B
|
76626B
76626-27010 Mudguard, Rear Body, Lh[06.1999 - 08.2002] KM70..1SO;KM70..GUT;CM80,KM80..T1 |
76626-27010 |
US $34.94 |
||
|
9010906132
|
9010906132
90109-06132 New Genuine Part |
90109-06132 |
US $2.04 |
||
|
9016850025
|
9016850025
90168-50025 New Genuine Part |
90168-50025 |
US $1.60 |
||
|
9026903047
|
9026903047
90269-03047 New Genuine Part |
90269-03047 |
US $4.22 |
||
|
9026905019
|
9026905019
90269-05019 New Genuine Part |
90269-05019 |
US $2.48 |
||
|
9046708033
|
9046708033
90467-08033 Clip(For Headlamp Cover Seal) |
90467-08033 |
US $0.90 |
||
|
9326016016
|
9326016016
93260-16016 New Genuine Part |
93260-16016 |
US $1.46 |
||
|
904670501601
|
904670501601
90467-05016-01 Clip (For Roof Side Inner Garnish) |
90467-05016-01 |
US $1.46 |
