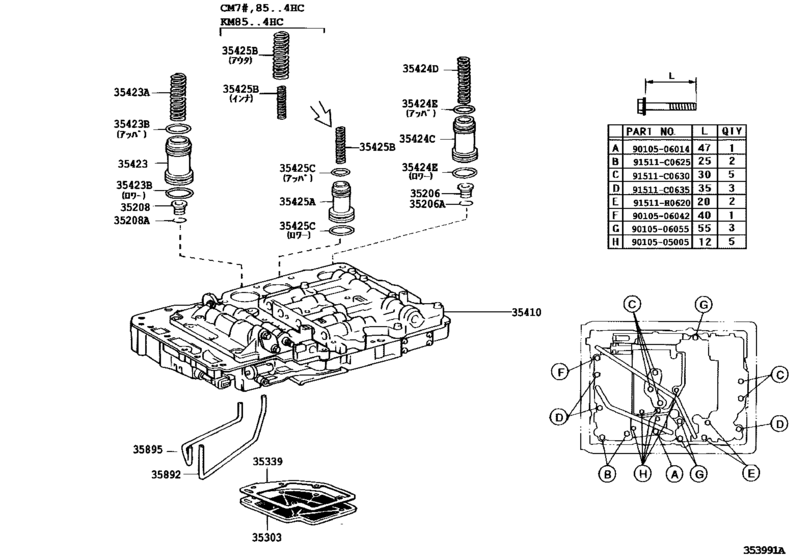

Valve Body & Oil Strainer (Atm) ([08.2002 - ] A42D,A44DF (0208- )4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- KM70
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DECK
- SJL
- Model
- LITE/TOWNACE
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35208
|
35208
35208-28010 Spring Sub-Assy, B-2 Accumulator[08.2002 -] KM7#,85..4HC |
35208-28010 |
US $1.89 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[08.2002 -] KM7#,85..4HC |
90521-22004 |
from US $1.24 |
||
|
35303
|
35303
35303-35020 Strainer Sub-Assy, Oil[08.2002 -] KM7#,85..4HC |
35303-35020 |
from US $29.46 |
||
|
35339
|
35339
35339-28010 Gasket, Oil Strainer[08.2002 -] KM7#,85..4HC |
35339-28010 |
from US $7.86 |
||
|
35410
|
35410
35410-27140 Body Assy, Transmission Valve[08.2002 -] KM7#..4HC |
35410-27140 |
US $1,528.80 |
||
|
35423
|
35423
35421-26010 Piston, Accumulator, No.1[08.2002 -] KM7#,85..4HC |
35421-26010 |
US $16.45 |
||
|
35423A
|
35423A
90501-25033 Spring, Compression (For Accumulator Piston No.1)[08.2002 -] KM7#..4HC |
90501-25033 |
US $3.93 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[08.2002 -] KM7#,85..4HC 上側 |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-29011 Ring (For Accumulator Piston No.1)[08.2002 -] KM7#,85..4HC 下側 |
90301-29011 |
from US $2.62 |
||
|
35424C
|
35424C
35421-22030 Piston, Accumulator, No.3[08.2002 -] KM7#,85..4HC |
35421-22030 |
US $15.43 |
||
|
35424D
|
35424D
90501-20063 Spring Sub-Assy, C-1 Accumulator[08.2002 -] KM7#,85..4HC |
90501-20063 |
US $3.68 |
||
|
35424E
|
35424E
90301-21012 Ring (For Accumulator Piston No.3)[08.2002 -] KM7#,85..4HC 上側 |
90301-21012 |
from US $1.49 |
||
|
35424E
|
35424E
90301-26012 Ring (For Accumulator Piston No.1)[08.2002 -] KM7#,85..4HC 下側 |
90301-26012 |
US $1.49 |
||
|
35425A
|
35425A
35441-30010 Piston, Accumulator, No.2[08.2002 -] KM7#..4HC |
35441-30010 |
US $15 |
||
|
35425B
|
35425B
90501-27016 Spring, Compression (For Accumulator Piston No.1)[08.2002 -] KM7#..4HC |
90501-27016 |
US $3.93 |
||
|
35425C
|
35425C
90301-18010 Ring (For Accumulator Piston No.2)[08.2002 -] KM7#,85..4HC 上側 |
90301-18010 |
US $3.84 |
||
|
35425C
|
35425C
90301-26012 Ring (For Accumulator Piston No.1)[08.2002 -] KM7#,85..4HC 下側 |
90301-26012 |
US $1.49 |
||
|
35892
|
35892
35892-28020 Tube, Overdrive Brake[08.2002 -] KM7#,85..4HC |
35892-28020 |
US $20.38 |
||
|
35895
|
35895
35895-30021 Tube, Front Clutch Apply[08.2002 -] KM7#,85..4HC |
35895-30021 |
US $15.72 |
||
|
91511C0625
|
91511C0625
91511-C0625
Bolt(For Cylinder Head Cover)
|
91511-C0625 |
— | ||
| replacement | |||||
|
91511C0625
|
91511C0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91511C0630
|
91511C0630
91511-C0630 New Genuine Part |
91511-C0630 |
US $0.52 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.97 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
||
|
9010506014
|
9010506014
90105-06014 New Genuine Part |
90105-06014 |
US $2.91 |
||
|
9010506042
|
9010506042
90105-06042
New Genuine Part
|
90105-06042 |
— | ||
|
9010506055
|
9010506055
90105-06055 New Genuine Part |
90105-06055 |
US $1.75 |
||
