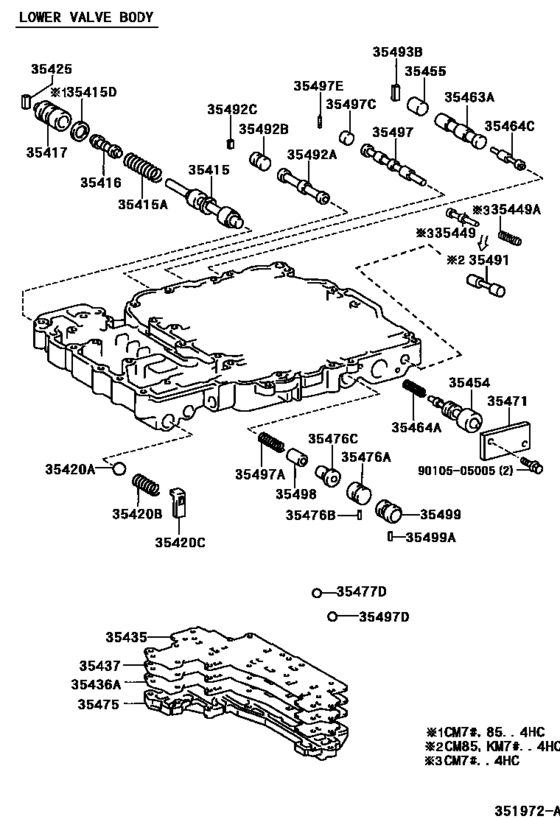

Valve Body & Oil Strainer (Atm) ([06.1999 - 08.2002] A42D,A44DF (9906-0208)4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2007
- Sales region
- Japan
- Frame
- KM75
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DECK
- SJL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2007
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- IV3
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35415
|
35415
35415-22021 Valve, Pressure Regulator[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35415-22021 |
US $20.38 |
||
|
35415A
|
35415A
90501-15017 Spring, Compression (For Pressure Regulator Valve)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90501-15017 |
US $3.20 |
||
|
35416
|
35416
35416-24010 Plunger, Primary Regulator Valve, No.1[06.1999 - 08.2002] KM7#..4HC |
35416-24010 |
US $9.61 |
||
|
35417
|
35417
35417-24010 Plunger, Primary Regulator Valve, No.1[06.1999 - 08.2002] KM7#..4HC |
35417-24010 |
US $21.84 |
||
|
35420A
|
35420A
90360-13024
Ball (For Pressure Relief)
[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90360-13024 |
— | ||
|
35420B
|
35420B
90501-18677 Spring (For Pressure Relief)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90501-18677 |
US $3.86 |
||
|
35420C
|
35420C
35427-22011 Seat (For Pressure Relief)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35427-22011 |
US $4.08 |
||
|
35425
|
35425
35425-14010 Seat, Pressure Regulator Valve Sleeve[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35425-14010 |
US $2.62 |
||
|
35435
|
35435
35435-30030
Gasket, Valve Body Plate, No.3
[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35435-30030 |
— | ||
|
35436A
|
35436A
35436-30040
Gasket, Valve Body Plate, No.4
[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35436-30040 |
— | ||
|
35437
|
35437
35437-35010 Plate, 3-4 Shift Valve Separator[06.1999 - 08.2002] KM7#..4HC |
35437-35010 |
US $18.35 |
||
|
35454
|
35454
35454-30010 Valve, Low Coast Shift[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35454-30010 |
US $35.24 |
||
|
35455
|
35455
35455-22010 Plug, 1-2 Shift Valve Low[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35455-22010 |
US $11.36 |
||
|
35463A
|
35463A
35463-22010
Valve, 1-2 Shift, Lower
[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35463-22010 |
— | ||
|
35464A
|
35464A
90501-06684
Spring, Compression (For 1-2 Shift Valve)
[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90501-06684 |
— | ||
|
35464C
|
35464C
35464-22020 Valve, 1-2 Shift, Upper[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35464-22020 |
US $10.05 |
||
|
35471
|
35471
35471-22010 Cover, Valve Body, No.1[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35471-22010 |
US $9.61 |
||
|
35475
|
35475
35475-28040 Cover, Valve Body, No.5[01.2002 - 08.2002] CM7#,85,KM7#..4HC |
35475-28040 |
US $126.67 |
||
|
35475
|
35475
35475-30020 Cover, Valve Body, No.5[06.1999 - 01.2002] CM7#,85,KM7#..4HC |
35475-30020 |
US $119.39 |
||
|
35476A
|
35476A
90334-12001 Plug, Straight (For 3Rd Coast Shift)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90334-12001 |
US $7.43 |
||
|
35476B
|
35476B
90250-02012 Pin, Locating (For 3Rd Coast Shift)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90250-02012 |
US $1.75 |
||
|
35476C
|
35476C
35476-30010 Valve, 3Rd Coast Shift[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35476-30010 |
US $9.46 |
||
|
35477D
|
35477D
35495-22020 Ball (For Transfer Upper Valve Body)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35495-22020 |
US $4.66 |
||
|
35491
|
35491
35491-22010 Plug, Reverse Brake[06.1999 - 08.2002] CM85,KM7#..4HC |
35491-22010 |
US $9.46 |
||
|
35492A
|
35492A
35492-30010 Valve, Manual Down Timing[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35492-30010 |
US $16.02 |
||
|
35492B
|
35492B
35494-30010 Plug (For Manual Down Timing Valve)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35494-30010 |
US $9.32 |
||
|
35492C
|
35492C
35493-30040 Seat(For Low-High Shift Timing Valve Plug)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35493-30040 |
US $2.04 |
||
|
35493B
|
35493B
35493-22010 Seat (For Cut Back Valve)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35493-22010 |
US $3.49 |
||
|
35497
|
35497
35497-30020 Valve, 3-4 Shift[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35497-30020 |
US $24.90 |
||
|
35497A
|
35497A
90501-11005
Spring, Compression (For 3-4 Shift Valve)
[06.1999 - 08.2002] CM85,KM7#..4HC |
90501-11005 |
— | ||
|
35497C
|
35497C
90334-13001 Plug (For 3-4 Shift Valve)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90334-13001 |
US $7.43 |
||
|
35497D
|
35497D
35495-22020 Ball (For Transfer Upper Valve Body)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35495-22020 |
US $4.66 |
||
|
35497E
|
35497E
90361-02051 Seat, Shift Valve Plug[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90361-02051 |
US $1.60 |
||
|
35498
|
35498
35498-30010 Valve, 3-4 Coast Shift[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35498-30010 |
US $10.34 |
||
|
35499
|
35499
35499-30030 Plug, 3-4 Shift Valve[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
35499-30030 |
US $11.21 |
||
|
35499A
|
35499A
90250-02012 Pin, Locating (For 3Rd Coast Shift)[06.1999 - 08.2002] CM7#,85,KM7#..4HC |
90250-02012 |
US $1.75 |
||
|
9010505005
|
9010505005
90105-05005 Bolt (For Transfer Relief Valve Plate) |
90105-05005 |
US $1.25 |
