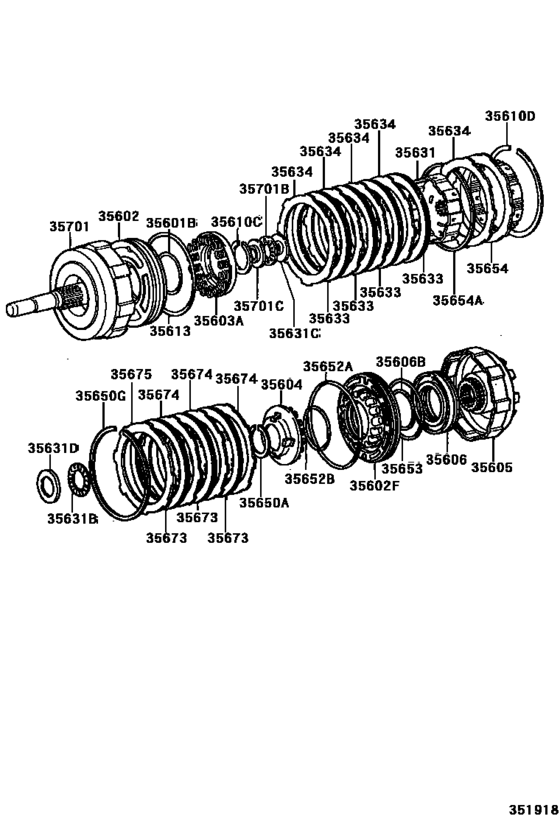

Brake Band & Multiple Disc Clutch (Atm) ([06.1999 - ] A42D,A44DF (9906- )4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 2005 - 2007
- Sales region
- Japan
- Frame
- KM85
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 02.2005
- To
- 08.2007
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35601B
|
35601B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-56007 |
US $3.05 |
||
|
35602
|
35602
35602-30042
Piston Sub-Assy, Front Clutch
[08.2002 -] KM7#,85..4HC |
35602-30042 |
— | ||
|
35603A
|
35603A
35603-22030 Spring Sub-Assy, Forward Clutch Return[08.2002 -] KM7#,85..4HC |
35603-22030 |
US $11.65 |
||
|
35604
|
35604
35603-22020 Spring Sub-Assy, Forward Clutch Return[02.2005 -] KM85..4HC |
35603-22020 |
US $15.43 |
||
|
35605
|
35605
35605-22011 Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear[08.2002 -] KM7#,85..4HC |
35605-22011 |
US $82.12 |
||
|
35606
|
35606
35606-30021 Piston Sub-Assy, Rear Clutch[02.2005 -] KM85..4HC |
35606-30021 |
US $74.26 |
||
|
35606B
|
35606B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-56007 |
US $3.05 |
||
|
35610C
|
35610C
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.2002 -] KM7#,85..4HC |
90520-39261 |
— | ||
|
35610D
|
35610D
90520-99012
Ring, Hole Snap (For Front Multiple Disc Clutch)
[08.2002 -] KM7#,85..4HC |
90520-99012 |
— | ||
|
35613
|
35613
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-99058 |
US $3.58 |
||
|
35631
|
35631
35631-43010 Hub, Clutch(For Multiple Disc Clutch)[08.2002 -] KM7#,85..4HC |
35631-43010 |
US $53 |
||
|
35631B
|
35631B
90374-28014 Bearing, Thrust Needle Roller(For Overdrive)[08.2002 -] KM7#,85..4HC |
90374-28014 |
US $4.89 |
||
|
35631C
|
35631C
35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)[08.2002 -] KM7#,85..4HC |
35789-22050 |
US $8.91 |
||
|
35631D
|
35631D
35789-43010 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)[08.2002 -] KM7#,85..4HC |
35789-43010 |
from US $6.55 |
||
|
35633
|
35633
35677-22080 Disc, Clutch (For Front Clutch)[08.2002 -] KM7#,85..4HC |
35677-22080 |
US $29.35 |
||
|
35634
|
35634
35634-22040 Plate, Clutch (For Overdrive)[08.2002 -] KM7#,85..4HC 厚さ＝１．８ |
35634-22040 |
US $18.93 |
||
|
35634
|
35634
35634-30070 Plate, Clutch (For Overdrive)[08.2002 -] KM7#,85..4HC 厚さ＝２．０ |
35634-30070 |
US $22.54 |
||
|
35650A
|
35650A
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.2002 -] KM7#,85..4HC |
90520-39261 |
— | ||
|
35650G
|
35650G
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.2002 -] KM7#,85..4HC |
90521-99139 |
— | ||
|
35652A
|
35652A
90301-99058 Ring, O (For Overdrive Direct Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-99058 |
US $3.58 |
||
|
35652B
|
35652B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-56007 |
US $3.05 |
||
|
35653
|
35653
90301-83001 Ring, O (For Rear Clutch Piston)[08.2002 -] KM7#,85..4HC |
90301-83001 |
US $5.68 |
||
|
35654
|
35654
35654-30010 Hub, Rear Clutch[08.2002 -] KM7#,85..4HC |
35654-30010 |
US $73.56 |
||
|
35654A
|
35654A
90521-99146
Ring, Hole Snap, No.1 (For Overdrive)
[08.2002 -] KM7#,85..4HC |
90521-99146 |
— | ||
|
35673
|
35673
35677-22080 Disc, Clutch (For Front Clutch)[08.2002 -] KM7#,85..4HC |
35677-22080 |
US $29.35 |
||
|
35674
|
35674
35634-30070 Plate, Clutch (For Overdrive)[08.2002 -] KM7#,85..4HC |
35634-30070 |
US $22.54 |
||
|
35675
|
35675
35675-22120 Flange, Rear Clutch[08.2002 -] KM7#,85..4HC 厚さ＝３．５５ |
35675-22120 |
US $43.53 |
||
|
35675
|
35675
35675-22130 Flange, Rear Clutch[08.2002 -] KM7#,85..4HC 厚さ＝３．７５ |
35675-22130 |
US $41.79 |
||
|
35675
|
35675
35675-22140
Flange, Overdrive Clutch
[08.2002 -] KM7#,85..4HC 厚さ＝４．０ |
35675-22140 |
— | ||
|
35701
|
35701
35701-30043
Shaft Sub-Assy, Input
[08.2002 -] KM7#,85..4HC |
35701-30043 |
— | ||
|
35701B
|
35701B
90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[08.2002 -] KM7#,85..4HC |
90374-23012 |
from US $5.42 |
||
|
35701C
|
35701C
35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)[08.2002 -] KM7#,85..4HC |
35789-22010 |
US $6.99 |
