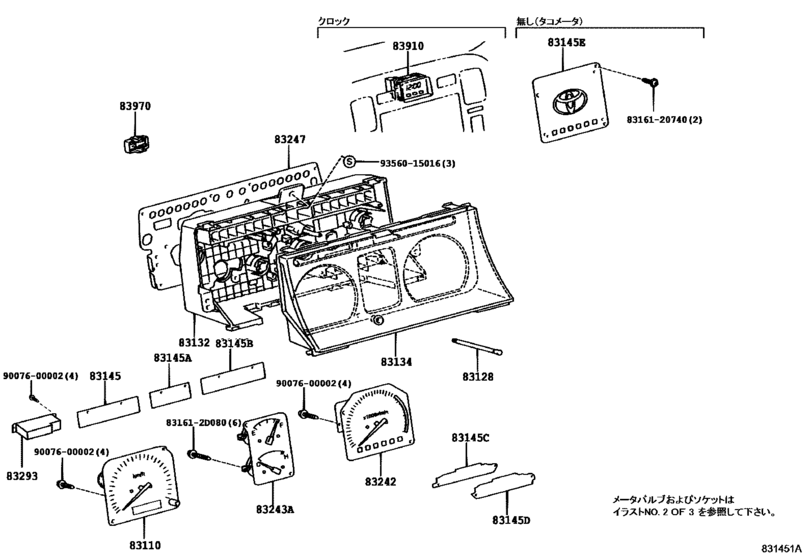

Meter ([08.2004 - ] (0408- )4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 2005 - 2007
- Sales region
- Japan
- Frame
- KM85
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 02.2005
- To
- 08.2007
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-27040 Speedometer Assy[02.2005 -] KM85..4HC ｱﾘ(ﾀｺﾒ-ﾀ) |
83220-27040 |
US $382.93 |
||
|
83110
|
83110
83220-27050 Speedometer Assy[08.2004 -] KM7#,8# |
83220-27050 |
US $382.93 |
||
|
83128
|
83128
83856-27080 Knob, Trip Counter[08.2004 -] KM7#,8# |
83856-27080 |
US $13.98 |
||
|
83132
|
83132
83841-27081 Case, Combination Meter[08.2004 -] KM7#,8# |
83841-27081 |
US $59.26 |
||
|
83134
|
83134
83821-27010 Glass, Combination Meter[08.2002 - 08.2007] KM7#,8# |
83821-27010 |
US $47.61 |
||
|
83145
|
83145
83831-27130 Lens, Meter, No.1[02.2005 -] KM85..4HC |
83831-27130 |
US $8.44 |
||
|
83145A
|
83145A
83832-27080 Lens, Meter, No.2[08.2002 -] KM7#,8# |
83832-27080 |
US $8.30 |
||
|
83145B
|
83145B
83833-27080 Lens, Meter, No.3[08.2002 - 08.2007] KM7#,8# |
83833-27080 |
US $8.44 |
||
|
83145C
|
83145C
83834-27080 Lens, Meter, No.4[08.2002 -] KM7#,85..4HC |
83834-27080 |
US $8.30 |
||
|
83145D
|
83145D
83835-27080 Lens, Meter, No.5[08.2002 -] KM7#,85..4HC |
83835-27080 |
US $3.93 |
||
|
83145E
|
83145E
83831-27100 Lens, Meter, No.6[08.2002 -] KM7#,85..4HC |
83831-27100 |
US $61.44 |
||
|
83242
|
83242
83881-27081 Tachometer Assy, Engine[08.2004 -] KM7#,85..4HC..(CBU,IV3) |
83881-27081 |
US $529.98 |
||
|
83243A
|
83243A
83882-27081 Gauge Sub-Assy, Fuel Receiver[08.2004 -] KM7#,8# |
83882-27081 |
US $144.14 |
||
|
83247
|
83247
83861-27260 Plate, Meter Circuit[02.2005 -] KM85..4HC |
83861-27260 |
US $58.24 |
||
|
83293
|
83293
83293-27010 Computer, Total Counter Module[08.2004 -] KM7#,8# |
83293-27010 |
US $347.98 |
||
|
83910
|
83910
83910-26020 Clock Assy[08.2002 -] KM7#,8# |
83910-26020 |
US $490.96 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[08.2002 -] KM7#,85..4HC |
83970-12020 |
US $38.61 |
||
|
831612D080
|
831612D080
83161-2D080 Case, Combination Meter Mirror, No.1 |
83161-2D080 |
US $1.60 |
||
|
8316120740
|
8316120740
83161-20740 Case, Combination Meter Mirror, No.1 |
83161-20740 |
US $1.75 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $4.08 |
||
|
9356015016
|
9356015016
93560-15016 New Genuine Part |
93560-15016 |
US $1.25 |
