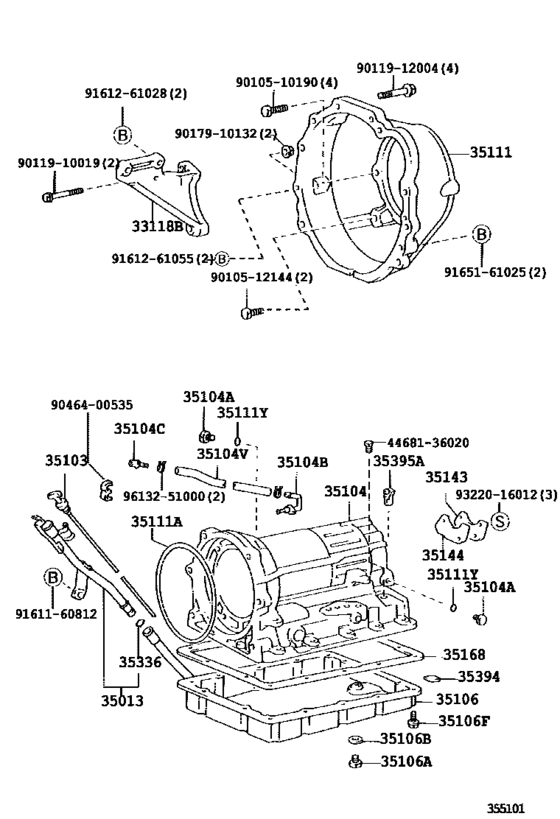

Transmission Case & Oil Pan (Atm) ([02.2005 - ] A44DF (0502- )KM85..4HC) Diagram Toyota LITE/ TOWNACE
- Year
- 2005 - 2007
- Sales region
- Japan
- Frame
- KM85
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 02.2005
- To
- 08.2007
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-12080 Plate, Stiffener, Rh(Mtm)[08.2002 -] KM7#,85..4HC |
33118-12080 |
US $32.03 |
||
|
35013
|
35013
35013-27090 Tube Sub-Assy, Transmission Oil Filler[08.2002 -] KM7#,85..4HC |
35013-27090 |
US $43.68 |
||
|
35103
|
35103
35103-27070 Gage Sub-Assy, Transmission Oil Level[08.2002 -] KM7#,85..4HC |
35103-27070 |
US $15.58 |
||
|
35104
|
35104
35104-26030
Case Sub-Assy, Automatic Transmission
[08.2002 -] KM85..4HC |
35104-26030 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[08.2002 -] CM7#,85,KM7#,85..4HC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.2002 -] KM7#,85..4HC |
90930-03098 |
from US $7.20 |
||
|
35104C
|
35104C
90930-03099 Plug, Breather, No.1 (Atm)[08.2002 -] KM7#,85..4HC |
90930-03099 |
US $7.86 |
||
|
35104V
|
35104V
90445-11096 Hose (For Breather Plug)[08.2002 -] KM7#,85..4HC |
90445-11096 |
US $6.29 |
||
|
35106
|
35106
35106-30051 Pan Sub-Assy, Automatic Transmission Oil[08.2002 -] CM7#,85,KM7#,85..4HC |
35106-30051 |
US $103.32 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.2002 -] CM7#,85,KM7#,85..4HC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.2002 -] KM7#,85..4HC |
35178-30010 |
from US $1.70 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[08.2002 -] KM7#,85..4HC |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.2002 -] KM7#,85..4HC |
90119-06173 |
from US $0.76 |
||
|
35111
|
35111
35111-28031 Housing, Automatic Transmission[08.2002 -] KM7#,85..4HC |
35111-28031 |
US $662.48 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[08.2002 -] KM7#,85..4HC |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[08.2002 -] KM7#,85..4HC |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.2002 -] KM7#,85..4HC |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[08.2002 -] KM7#,85..4HC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.2002 -] KM7#,85..4HC |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.2002 -] KM7#,85..4HC |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2002 -] KM7#,85..4HC |
35394-30011 |
from US $5.62 |
||
|
35395A
|
35395A
35395-40010 Strainer, Governor Oil[08.2002 -] KM7#,85..4HC |
35395-40010 |
US $12.58 |
||
|
4468136020
|
4468136020
44681-36020 Plug, Automatic Transmission Case |
44681-36020 |
US $2.91 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011910019
|
9011910019
90119-10019 Bolt(For Transmission Case & Engine Setting) |
90119-10019 |
US $5.02 |
||
|
9011912004
|
9011912004
90119-12004 Bolt(For Transmission Case & Engine Setting) |
90119-12004 |
US $5.56 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $2.15 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161261028
|
9161261028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161261055
|
9161261055
91612-61055 Bolt (For Transfer Case) |
91612-61055 |
US $2.33 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
