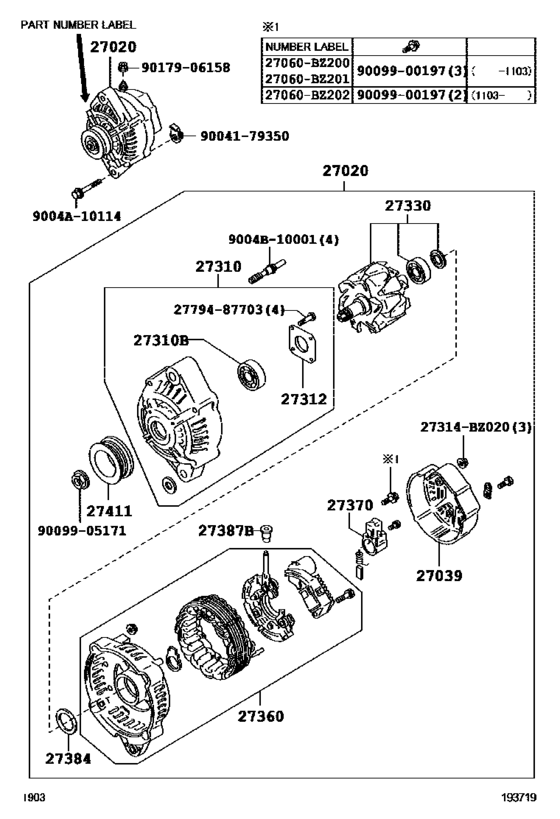

Alternator ([01.2008 - 04.2014] (0801-1404)) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-BZ200 Alternator Assy[01.2008 - 02.2010] 3SZVE..S402 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ200 |
US $943.49 |
||
| replacement | |||||
|
27020
|
27020
27060-BZ290 Alternator Assy[01.2008 - 02.2010] 3SZVE..S402 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ290 |
US $781.56 |
||
|
27020
|
27020
27060-BZ201 Alternator Assy[03.2010 - 02.2011] 3SZVE..S402,412 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ201 |
US $1,038.13 |
||
| replacement | |||||
|
27020
|
27020
27060-BZ290 Alternator Assy[03.2010 - 02.2011] 3SZVE..S402,412 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ290 |
US $781.56 |
||
|
27020
|
27020
27060-BZ202 Alternator Assy[03.2011 - 03.2014] 3SZVE..S402,412 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ202 |
US $943.49 |
||
| replacement | |||||
|
27020
|
27020
27060-BZ290 Alternator Assy[03.2011 - 03.2014] 3SZVE..S402,412 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ290 |
US $781.56 |
||
|
27020
|
27020
27060-BZ290 Alternator Assy[04.2014 -] 3SZVE..S402,412 １２Ｖ ８０Ａ,品番ラベル有り |
27060-BZ290 |
US $781.56 |
||
|
27039
|
27039
27039-BZ030 Cover, Alternator Rear End[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
27039-BZ030 |
US $11.21 |
||
|
27039
|
27039
27039-BZ040 Cover, Alternator Rear End[04.2014 -] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２９０ |
27039-BZ040 |
US $8.74 |
||
|
27310
|
27310
27310-BZ050 Frame Assy, Drive End, Alternator[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
27310-BZ050 |
US $346.53 |
||
|
27310
|
27310
27310-BZ070 Frame Assy, Drive End, Alternator[03.2010 - 03.2011] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２０１ |
27310-BZ070 |
US $364 |
||
|
27310
|
27310
27310-BZ080 Frame Assy, Drive End, Alternator[03.2011 - 04.2014] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２０２ |
27310-BZ080 |
US $330.51 |
||
|
27310
|
27310
27310-BZ110 Frame Assy, Drive End, Alternator[04.2014 -] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２９０ |
27310-BZ110 |
US $299.94 |
||
|
27310B
|
27310B
27791-87703
Bearing(For Alternator Drive End Frame)
[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
27791-87703 |
— | ||
| replacement | |||||
|
27310B
|
27310B
9004C-37002 Bearing(For Alternator Drive End Frame)[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
9004C-37002 |
US $15.59 |
||
|
27310B
|
27310B
9004B-37012 Bearing(For Alternator Drive End Frame)[01.2015 -] 3SZVE..S402,412 |
9004B-37012 |
from US $21.99 |
||
|
27310B
|
27310B
9004C-37001 Bearing(For Alternator Drive End Frame)[03.2010 - 03.2011] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２０１ |
9004C-37001 |
US $12.08 |
||
| replacement | |||||
|
27310B
|
27310B
9004C-37002 Bearing(For Alternator Drive End Frame)[03.2010 - 03.2011] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２０１ |
9004C-37002 |
US $15.59 |
||
|
27310B
|
27310B
9004C-37002 Bearing(For Alternator Drive End Frame)[03.2011 - 04.2014] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２０２ |
9004C-37002 |
US $15.59 |
||
|
27310B
|
27310B
9004C-37008 Bearing(For Alternator Drive End Frame)[04.2014 - 01.2015] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２９０ |
9004C-37008 |
from US $14.12 |
||
|
27312
|
27312
27312-87704
Plate, Retainer
[01.2008 -] 3SZVE..S402,412 |
27312-87704 |
— | ||
|
27330
|
27330
27330-BZ030 Rotor Assy, Alternator[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
27330-BZ030 |
US $187.82 |
||
|
27330
|
27330
27330-BZ060 Rotor Assy, Alternator[04.2014 -] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２９０ |
27330-BZ060 |
from US $136.54 |
||
|
27360
|
27360
27360-BZ020 Coil Assy, Alternator[01.2008 - 03.2010] 3SZVE..S402 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２００ |
27360-BZ020 |
US $496.50 |
||
|
27360
|
27360
27360-BZ050 Coil Assy, Alternator[04.2014 -] 3SZVE..S402,412 ＡＳＳＹ，ＮＯ．２７０６０ＢＺ２９０ |
27360-BZ050 |
US $449.90 |
||
|
27370
|
27370
27370-BZ030 Holder Assy, Alternator Brush[01.2008 -] 3SZVE..S402,412 |
27370-BZ030 |
US $39.82 |
||
|
27384
|
27384
27384-87702
Washer
[01.2008 - 04.2014] 3SZVE..S402,412 |
27384-87702 |
— | ||
|
27387B
|
27387B
27387-B1010 Insulator, Alternator Terminal[01.2015 -] 3SZVE..S402,412 |
27387-B1010 |
US $9.03 |
||
|
27387B
|
27387B
27387-BZ040 Insulator, Alternator Terminal[01.2008 - 01.2015] 3SZVE..S402,412 |
27387-BZ040 |
US $2.77 |
||
|
27411
|
27411
27411-BZ050 Pulley, Alternator[01.2008 -] 3SZVE..S402,412 |
27411-BZ050 |
US $59.81 |
||
|
9004A10114
|
9004A10114
9004A-10114
Bolt(For Alternator)
|
9004A-10114 |
— | ||
| replacement | |||||
|
9004A10114
|
9004A10114
90105-10468 Bolt(For Alternator) |
90105-10468 |
US $4.95 |
||
|
9004B10001
|
9004B10001
9004B-10001 New Genuine Part |
9004B-10001 |
US $4.37 |
||
|
27314BZ020
|
27314BZ020
27314-BZ020 New Genuine Part |
27314-BZ020 |
US $4.37 |
||
|
2779487703
|
2779487703
27794-87703 New Genuine Part |
27794-87703 |
US $1.75 |
||
|
9004179350
|
9004179350
90041-79350 New Genuine Part |
90041-79350 |
US $3.20 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
