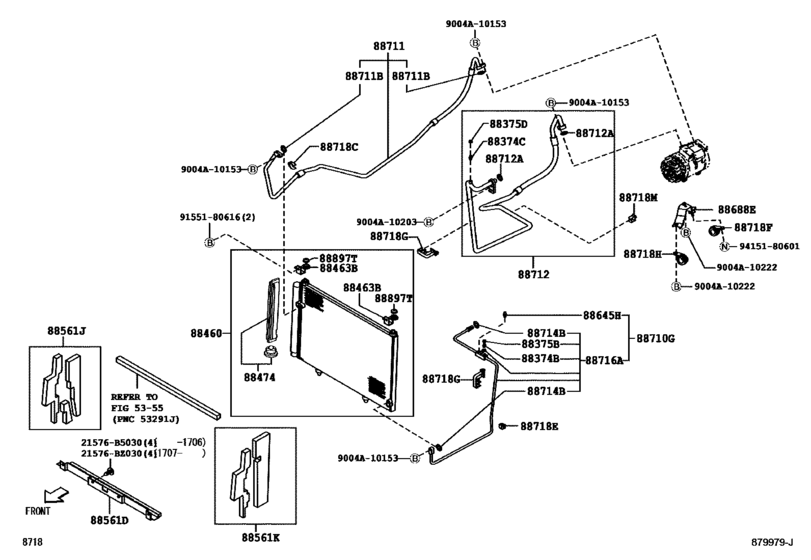

Heating & Air Conditioning - Cooler Piping ([01.2008 - ] (0801- )) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-87601 Valve, Service, No.1[01.2008 -] S402,412 |
88374-87601 |
US $6.27 |
||
|
88374C
|
88374C
88374-87601 Valve, Service, No.1[01.2008 -] S402,412 |
88374-87601 |
US $6.27 |
||
|
88375B
|
88375B
88375-87603
Cap, Service Valve (For Cooler Pipe)
[01.2008 -] S402,412 |
88375-87603 |
— | ||
|
88375D
|
88375D
88375-87601 Cap, Service Valve, No.1[01.2008 -] S402,412 |
88375-87601 |
US $1.25 |
||
|
88460
|
88460
88460-BZ110 Condenser Assy, Cooler[01.2008 -] S402,412..PIC |
88460-BZ110 |
US $591.24 |
||
|
88463B
|
88463B
88463-BZ140 Bracket, Cooler Condenser, No.3[01.2008 -] S402,412 |
88463-BZ140 |
US $8.88 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[01.2008 -] S402,412 |
88474-17010 |
from US $65.40 |
||
|
88561D
|
88561D
88561-BZ150 Grille, Air Inlet No.3[01.2008 -] S402,412 |
88561-BZ150 |
US $21.84 |
||
|
88561J
|
88561J
88578-BZ270 Grille, Air Inlet No.1[01.2008 -] S402,412 |
88578-BZ270 |
US $23.86 |
||
|
88561K
|
88561K
88578-BZ280 Grille, Air Inlet No.2[01.2008 -] S402,412 |
88578-BZ280 |
US $24.53 |
||
|
88645H
|
88645H
88645-87602
Switch, Pressure No.1
[01.2008 -] S402,412 |
88645-87602 |
— | ||
|
88688E
|
88688E
88688-BZ070 Bracket, Cooler Refrigerant Hose, No.1[01.2008 -] S402,412 |
88688-BZ070 |
US $21.11 |
||
|
88710G
|
88710G
88710-BZ130 Tube & Accessory Assy, Air Conditioner, No.2[01.2008 -] S402,412 |
88710-BZ130 |
US $244.80 |
||
|
88711
|
88711
88711-BZ220 Hose, Cooler Refrigerant Discharge, No.1[01.2008 -] S402..PIC |
88711-BZ220 |
US $110.66 |
||
|
88711B
|
88711B
15188-87402 Ring, O[01.2008 -] S402,412 外径＝１５．６ 内径＝１０．８ |
15188-87402 |
from US $2.15 |
||
|
88712
|
88712
88712-BZ260 Hose, Cooler Refrigerant Suction, No.1[01.2008 -] S402,412..PIC |
88712-BZ260 |
US $116.48 |
||
|
88712A
|
88712A
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)[01.2008 -] S402,412 外径＝１８．２ 内径＝１３．４ |
15188-87403 |
from US $2.15 |
||
|
88714B
|
88714B
15188-87401 Ring, O[01.2008 -] S402,412 外径＝１０．３ 内径＝６．７ |
15188-87401 |
from US $1.87 |
||
|
88716A
|
88716A
88716-BZ600 Pipe, Cooler Refrigerant Liquid, A[01.2008 -] S402,412 |
88716-BZ600 |
US $110.66 |
||
|
88718C
|
88718C
88718-B5060 Clamp(For Cooler Refrigerant Pipe), No.3[01.2008 - 01.2011] S402,412 |
88718-B5060 |
US $2.33 |
||
| replacement | |||||
|
88718C
|
88718C
88718-BZ640 Clamp(For Cooler Refrigerant Pipe), No.3[01.2008 - 01.2011] S402,412 |
88718-BZ640 |
US $2.33 |
||
|
88718C
|
88718C
88718-BZ640 Clamp(For Cooler Refrigerant Pipe), No.3[01.2011 -] S402,412 |
88718-BZ640 |
US $2.33 |
||
|
88718E
|
88718E
88718-BZ580 Clamp(For Cooler Refrigerant Pipe), No.5[01.2008 -] S402,412 |
88718-BZ580 |
US $2.33 |
||
|
88718F
|
88718F
88718-BZ470 Clamp(For Cooler Refrigerant Hose), No.1[01.2008 -] S402,412 |
88718-BZ470 |
US $8.01 |
||
|
88718G
|
88718G
88718-BZ570 Clamp(For Cooler Refrigerant Hose), No.2[01.2008 -] S402,412 |
88718-BZ570 |
US $5.64 |
||
|
88718H
|
88718H
88718-BZ480 Clamp(For Cooler Refrigerant Hose), No.3[01.2008 -] S402,412 |
88718-BZ480 |
US $8.01 |
||
|
88718M
|
88718M
88718-BZ580 Clamp(For Cooler Refrigerant Pipe), No.5[01.2008 -] S402,412 |
88718-BZ580 |
US $2.33 |
||
|
88897T
|
88897T
88463-BZ150 Grommet, Cooler[01.2008 -] S402,412 |
88463-BZ150 |
US $3.20 |
||
|
9004A10153
|
9004A10153
9004A-10153
New Genuine Part
|
9004A-10153 |
— | ||
|
9004A10203
|
9004A10203
9004A-10203
New Genuine Part
|
9004A-10203 |
— | ||
|
21576B5030
|
21576B5030
21576-B5030 Clip, Pump Strainer |
21576-B5030 |
US $3.23 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9415180601
|
9415180601
94151-80601 New Genuine Part |
94151-80601 |
US $0.87 |
||
