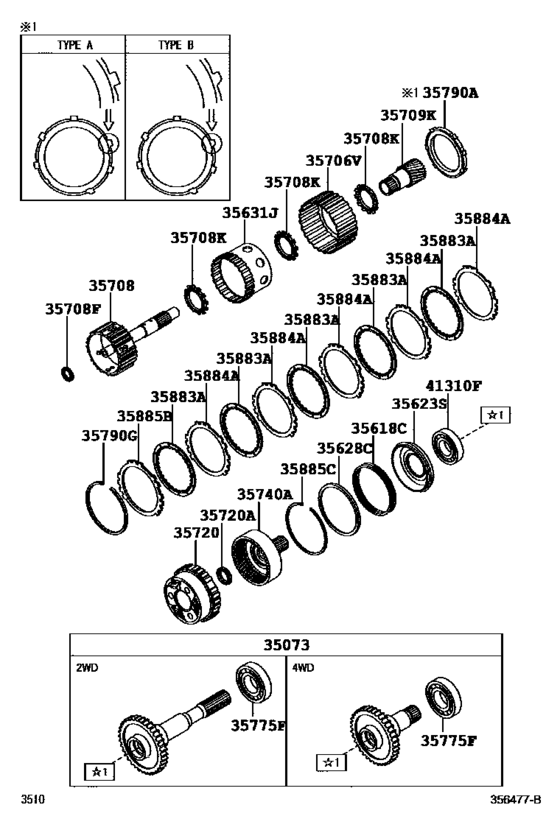

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2008 - ] (0801- )4FC) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35073
|
35073
35073-B9010 Shaft Sub-Assy, Output[01.2008 -] S402..4FC |
35073-B9010 |
from US $238.78 |
||
|
35618C
|
35618C
35618-B1010 Return Spring Sub-Assy, 1St & Reverse[01.2008 -] S402,412..4FC |
35618-B1010 |
from US $7.34 |
||
|
35623S
|
35623S
35623-97202
Piston,1St & Reverse Brake
[01.2008 - 05.2011] S402,412..4FC |
35623-97202 |
— | ||
| replacement | |||||
|
35623S
|
35623S
35623-B1010 Piston,1St & Reverse Brake[01.2008 - 05.2011] S402,412..4FC |
35623-B1010 |
from US $32.79 |
||
|
35623S
|
35623S
35623-B1010 Piston,1St & Reverse Brake[05.2011 -] S402,412..4FC |
35623-B1010 |
from US $32.79 |
||
|
35628C
|
35628C
35628-97202 Seat, 1St & Reverse Brake Piston Return Spring[01.2008 -] S402,412..4FC |
35628-97202 |
from US $6.12 |
||
|
35631J
|
35631J
35631-97203 Hub, Forward Clutch, No.1[01.2008 - 12.2013] S402..4FC; S412..4FC |
35631-97203 |
US $122.30 |
||
| replacement | |||||
|
35631J
|
35631J
35631-B1010 Hub, Forward Clutch, No.1[01.2008 - 12.2013] S402..4FC; S412..4FC |
35631-B1010 |
from US $80.03 |
||
|
35631J
|
35631J
35631-B1010 Hub, Forward Clutch, No.1[01.2014 -] S402,412..4FC |
35631-B1010 |
from US $80.03 |
||
|
35706V
|
35706V
35706-97203 Gear Sub Assy, Planetary Sun[01.2008 -] S402,412..4FC |
35706-97203 |
from US $123.47 |
||
|
35708
|
35708
35708-97203 Shaft Sub-Assy, Intermediate[01.2008 -] S402,412..4FC |
35708-97203 |
from US $71.43 |
||
|
35708F
|
35708F
90043-74051 Bearing, Thrust Needle Roller (For Intermediate Shaft)[01.2008 -] S402,412..4FC |
90043-74051 |
from US $9.09 |
||
|
35708K
|
35708K
90043-74047 Bearing, Needle Roller(For Intermediate Shaft)[01.2008 -] S402,412..4FC |
90043-74047 |
from US $9.09 |
||
|
35709K
|
35709K
35709-97204 Gear Sub-Assy, Rear Planetary[01.2008 -] S402,412..4FC |
35709-97204 |
from US $65.23 |
||
|
35720
|
35720
35720-97211 Gear Assy, Front Planetary[01.2008 -] S402,412..4FC |
35720-97211 |
from US $361.67 |
||
|
35720A
|
35720A
90043-74043 Bearing, Thrust Needle Roller (For Front Clutch Drum)[01.2008 -] S402,412..4FC |
90043-74043 |
from US $9.09 |
||
|
35740A
|
35740A
35740-97201 Gear Assy,front Planetary Ring[01.2008 -] S402..4FC |
35740-97201 |
from US $146.76 |
||
|
35775F
|
35775F
90043-63277 Bearing, Radial Boll[01.2008 -] S402,412..4FC |
90043-63277 |
from US $9.30 |
||
|
35790A
|
35790A
35790-97201 Clutch Assy, 1 Way[01.2008 - 02.2014] S402,412..4FC |
35790-97201 |
US $131.04 |
||
| replacement | |||||
|
35790A
|
35790A
35790-B1050 Clutch Assy, 1 Way[01.2008 - 02.2014] S402,412..4FC |
35790-B1050 |
from US $134.98 |
||
|
35790A
|
35790A
35790-B1030 Clutch Assy, 1 Way[02.2014 - 08.2014] S402,412..4FC タイプ Ａ |
35790-B1030 |
US $152.88 |
||
| replacement | |||||
|
35790A
|
35790A
35790-B1050 Clutch Assy, 1 Way[02.2014 - 08.2014] S402,412..4FC タイプ Ａ |
35790-B1050 |
from US $134.98 |
||
|
35790A
|
35790A
35790-B1050 Clutch Assy, 1 Way[08.2014 -] S402,412..4FC タイプ Ｂ |
35790-B1050 |
from US $134.98 |
||
|
35790G
|
35790G
90045-21174 Hole Snap Ring (For 1Way Clutch)[01.2008 -] S402,412..4FC |
90045-21174 |
from US $1.56 |
||
|
35883A
|
35883A
35883-97204 Disc, Brake[01.2008 - 10.2012] S402,412..4FC |
35883-97204 |
US $13.08 |
||
| replacement | |||||
|
35883A
|
35883A
35883-B1030 Disc, Brake[01.2008 - 10.2012] S402,412..4FC |
35883-B1030 |
from US $9.40 |
||
|
35883A
|
35883A
35883-B1010 Disc, Brake[10.2012 - 03.2016] S402,412..4FC |
35883-B1010 |
US $12.67 |
||
| replacement | |||||
|
35883A
|
35883A
35883-B1030 Disc, Brake[10.2012 - 03.2016] S402,412..4FC |
35883-B1030 |
from US $9.40 |
||
|
35883A
|
35883A
35883-B1020
Disc, Brake
[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ |
35883-B1020 |
— | ||
| replacement | |||||
|
35883A
|
35883A
35883B5010 DISC REVERSE BRAKE[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ |
35883B5010 |
from US $12.23 |
||
|
35883A
|
35883A
35883-B1030 Disc, Brake[04.2016 - 01.2017] S402,412..4FC ＤＹＮＡＸ |
35883-B1030 |
from US $9.40 |
||
|
35884A
|
35884A
35884-97204 Plate,brake[01.2008 - 09.2011] S402,412..4FC |
35884-97204 |
from US $7.86 |
||
|
35884A
|
35884A
35884-B1010 Plate,brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ |
35884-B1010 |
from US $5.67 |
||
|
35885B
|
35885B
35885-97213 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝４．０ |
35885-97213 |
US $25.70 |
||
|
35885B
|
35885B
35885-97214 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝４．２ |
35885-97214 |
from US $20.79 |
||
|
35885B
|
35885B
35885-97215 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝４．４ |
35885-97215 |
US $22.01 |
||
|
35885B
|
35885B
35885-97216 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝４．６ |
35885-97216 |
US $23.06 |
||
|
35885B
|
35885B
35885-97217 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝４．８ |
35885-97217 |
US $24.11 |
||
|
35885B
|
35885B
35885-97218 Flange, Brake[01.2008 - 09.2011] S402,412..4FC 厚さ＝５．０ |
35885-97218 |
US $25.51 |
||
|
35885B
|
35885B
35885-B1010 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝４．０ |
35885-B1010 |
from US $12.87 |
||
|
35885B
|
35885B
35885-B1020 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝４．２ |
35885-B1020 |
from US $13.38 |
||
|
35885B
|
35885B
35885-B1030 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝４．４ |
35885-B1030 |
from US $14.25 |
||
|
35885B
|
35885B
35885-B1040 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝４．６ |
35885-B1040 |
from US $14.68 |
||
|
35885B
|
35885B
35885-B1050 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝４．８ |
35885-B1050 |
from US $15.33 |
||
|
35885B
|
35885B
35885-B1060 Flange, Brake[01.2017 -] S402,412..4FC ＤＡＩＨＡＴＳＵ，Ｔ＝５．０ |
35885-B1060 |
from US $16.42 |
||
|
35885C
|
35885C
90045-21175
Ring,hole Snap (For Clutch Plate)
[01.2008 - 05.2013] S402,412..4FC |
90045-21175 |
— | ||
| replacement | |||||
|
35885C
|
35885C
90045-21194 Ring,hole Snap (For Clutch Plate)[01.2008 - 05.2013] S402,412..4FC |
90045-21194 |
from US $1.15 |
||
|
35885C
|
35885C
90045-21194 Ring,hole Snap (For Clutch Plate)[05.2013 -] S402,412..4FC |
90045-21194 |
from US $1.15 |
||
|
41310F
|
41310F
90043-63273 Bearing, Radial Ball (For Output Shaft Front)[01.2008 -] S402,412..4FC |
90043-63273 |
from US $10.31 |
||
