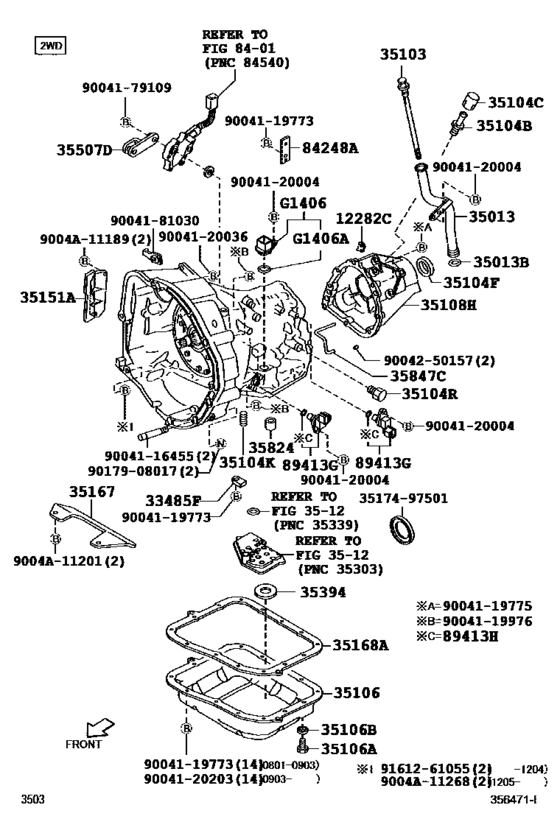

Transmission Case & Oil Pan (Atm) ([01.2008 - ] 2WD (0801- )S402..4FC) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282C
|
12282C
12282-B5030 Hanger, Engine, No.2[01.2008 -] 3SZVE..S402..4FC |
12282-B5030 |
US $2.77 |
||
|
33485F
|
33485F
33485-87201 Plate, Speedometer Sleeve Lock (Mtm)[01.2008 -] S402,412..4FC |
33485-87201 |
US $1.60 |
||
|
35013
|
35013
35013-B5020 Tube Sub-Assy, Transmission Oil Filler[01.2008 -] S402,412..4FC |
35013-B5020 |
US $24.81 |
||
|
35013B
|
35013B
90043-01193 Ring, O (For Transmission Oil Filler Tube)[01.2008 -] S402,412..4FC |
90043-01193 |
from US $2.26 |
||
|
35103
|
35103
35103-B5010 Gage Sub-Assy, Transmission Oil Level[01.2008 -] S402,412..4FC |
35103-B5010 |
US $11.21 |
||
|
35104B
|
35104B
90049-15048 Plug, Breather, No.1 (Atm)[01.2008 -] S402..4FC |
90049-15048 |
from US $0.98 |
||
|
35104C
|
35104C
90049-15050 Plug, Breather, No.1 (Atm)[01.2008 -] S402..4FC |
90049-15050 |
from US $0.98 |
||
|
35104F
|
35104F
90043-11285 Seal, Oil(For Manual Transmission Extension Housing)[01.2008 -] S402..4FC |
90043-11285 |
from US $6.45 |
||
|
35104K
|
35104K
90045-01801 Compression Spring, Transaxle Case[01.2008 -] S402,412..4FC |
90045-01801 |
US $1.54 |
||
|
35104R
|
35104R
90043-45040 Plug, No.1 (For Transaxle Case)[01.2008 -] S402,412..4FC |
90043-45040 |
US $2.62 |
||
|
35106
|
35106
35106-97501
Pan Sub-Assy, Automatic Transmission Oil
[01.2008 - 03.2009] S402..4FC |
35106-97501 |
— | ||
| replacements | |||||
|
35106
|
35106
35106-B1020 Pan Sub-Assy, Automatic Transmission Oil[01.2008 - 03.2009] S402..4FC |
35106-B1020 |
US $116.44 |
||
|
35106
|
35106
35168-B1020 Gasket, Automatic Transmission Oil Pan[01.2008 - 03.2009] S402..4FC |
35168-B1020 |
from US $23.58 |
||
|
35106
|
35106
90041-20203 Bolt (For Automatic Transmission Oil Pan)[01.2008 - 03.2009] S402..4FC |
90041-20203 |
US $2.15 |
||
|
35106
|
35106
35106-B1020 Pan Sub-Assy, Automatic Transmission Oil[03.2009 -] S402,412..4FC |
35106-B1020 |
US $116.44 |
||
|
35106A
|
35106A
90043-41041 Plug, Water Drain Cock(For Cylinder Block)[01.2008 -] S402,412..4FC |
90043-41041 |
from US $1.52 |
||
|
35106B
|
35106B
90044-30281 Gasket(For Oil Pan Drain Plug)[01.2008 -] S402,412..4FC |
90044-30281 |
from US $0.64 |
||
|
35108H
|
35108H
35108-97501 Housing Sub-Assy, Extension[01.2008 -] S402..4FC |
35108-97501 |
US $311.58 |
||
|
35151A
|
35151A
31123-97501 Cover, Transaxle Case, Upper[01.2008 -] S402,412..4FC |
31123-97501 |
US $12.08 |
||
|
35167
|
35167
35167-97502 Protector, Transmission Oil Pal[01.2008 -] S402,412..4FC |
35167-97502 |
US $35.24 |
||
|
35168A
|
35168A
35168-B1020 Gasket, Automatic Transmission Oil Pan[03.2009 -] S402,412..4FC |
35168-B1020 |
from US $23.58 |
||
|
35394
|
35394
33449-87502 Magnet, Transmission[01.2008 - 07.2009] S402..4FC |
33449-87502 |
US $3.84 |
||
|
35394
|
35394
33449-B2010 Magnet, TransaxleOIL CLEANER (FOR TRANSMISSION) [07.2009 -] S402,412..4FC |
33449-B2010 |
from US $3.58 |
||
|
35507D
|
35507D
35507-87402 Lever, Transmission Control Shaft[01.2008 -] S402,412..4FC |
35507-87402 |
US $17.20 |
||
|
35824
|
35824
35824-97501 Seal, Brake Cylinder[01.2008 -] S402,412..4FC |
35824-97501 |
from US $6.27 |
||
|
35847C
|
35847C
35847-97501 Tube, Transmission Lube Apply[01.2008 -] S402..4FC |
35847-97501 |
US $7.16 |
||
|
84248A
|
84248A
84248-97503 Clamp, Switch Harness[01.2008 -] S402,412..4FC |
84248-97503 |
US $5.82 |
||
|
89413G
|
89413G
89413-97202 Sensor, Transmission Revolution[01.2008 -] S402,412..4FC |
89413-97202 |
from US $66.36 |
||
|
89413H
|
89413H
90043-01278 Ring, O[01.2008 -] S402,412..4FC |
90043-01278 |
US $3.76 |
||
|
9004A11189
|
9004A11189
9004A-11189 New Genuine Part |
9004A-11189 |
US $2.33 |
||
|
9004A11201
|
9004A11201
9004A-11201
Bolt(For Transaxle & Engine Setting)
|
9004A-11201 |
— | ||
| replacement | |||||
|
9004A11201
|
9004A11201
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9004A11268
|
9004A11268
9004A-11268
New Genuine Part
|
9004A-11268 |
— | ||
|
3517497501
|
3517497501
35174-97501 Separator, Transaxle Housing Oil |
35174-97501 |
from US $1.93 |
||
|
9004116455
|
9004116455
90041-16455 New Genuine Part |
90041-16455 |
US $8.67 |
||
|
9004119773
|
9004119773
90041-19773 New Genuine Part |
90041-19773 |
US $1.97 |
||
|
9004119775
|
9004119775
90041-19775 Bolt, W/washer |
90041-19775 |
US $2.04 |
||
|
9004119976
|
9004119976
90041-19976 New Genuine Part |
90041-19976 |
US $7.88 |
||
|
9004120004
|
9004120004
90041-20004 New Genuine Part |
90041-20004 |
US $2.18 |
||
|
9004120036
|
9004120036
90041-20036 New Genuine Part |
90041-20036 |
US $8.30 |
||
|
9004120203
|
9004120203
90041-20203 Bolt (For Automatic Transmission Oil Pan) |
90041-20203 |
US $2.15 |
||
|
9004179109
|
9004179109
90041-79109 New Genuine Part |
90041-79109 |
US $1.31 |
||
|
9004181030
|
9004181030
90041-81030 New Genuine Part |
90041-81030 |
US $4.22 |
||
|
9004250157
|
9004250157
90042-50157 Pin, Straight(For Manual Transmission Case) |
90042-50157 |
from US $1.15 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9161261055
|
9161261055
91612-61055 Bolt (For Transfer Case) |
91612-61055 |
US $2.33 |
||
|
G1406
|
G1406
G1406-97201 Connector Sub-Assy, Trans Solenoid[01.2008 -] S402,412..4FC |
G1406-97201 |
US $48.55 |
||
|
G1406A
|
G1406A
90043-01281 Ring, O(For Trans Solenoid Connector)O(FOR TRANS SOLENOID CONNECTOR) [01.2008 -] S402,412..4FC |
90043-01281 |
US $3.94 |
||
