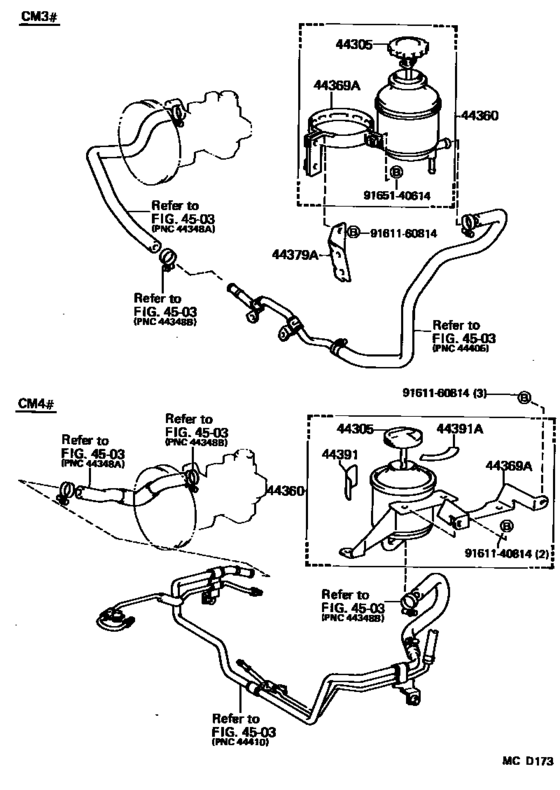

Vane Pump & Reservoir (Power Steering) ([09.1985 - ] (8509- )CM3#,4#) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- CM30
- grade
- SUC
- body
- WG
- Roof
- MRF
- ENGINE
- 2C
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- DSL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44305
|
44305
44305-32010 Cap Sub-Assy, Vane Pump Oil Reservoir[09.1985 - 08.1988] CM3#,KM30,31,36,YM30,40 |
44305-32010 |
US $20.97 |
||
|
44360
|
44360
44360-27030 Reservoir Assy, Vane Pump Oil[09.1985 - 08.1988] CM3# |
44360-27030 |
US $138.32 |
||
|
44369A
|
44369A
44369-27020 Bracket, Oil Reservoir, No.1[09.1985 - 08.1988] CM3# |
44369-27020 |
US $18.64 |
||
|
44379A
|
44379A
44369-27030 Bracket, Oil Reservoir, No.1[09.1985 - 08.1988] CM3# |
44369-27030 |
US $7.72 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
