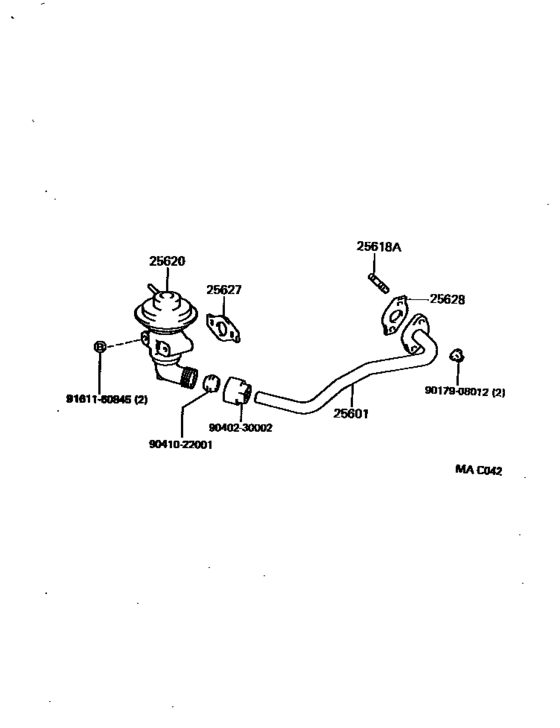

Exhaust Gas Recirculation System ([08.1988 - ] (8808- )2CT..4FC) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- CM30
- grade
- SUC
- body
- WG
- Roof
- MRF
- ENGINE
- 2CT
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4FC
- No.of Doors
- W4D
- Vehicle Model
- LITEACE VAN,WAGON
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-64040 Pipe Sub-Assy, Egr, No.1[08.1988 - 01.1992] 2CT..CM30,40..4FC |
25601-64040 |
US $90.27 |
||
| replacement | |||||
|
25601
|
25601
25601-64041 Pipe Sub-Assy, Egr, No.1[08.1988 - 01.1992] 2CT..CM30,40..4FC |
25601-64041 |
US $90.27 |
||
|
25618A
|
25618A
92122-60822 Stud[08.1988 - 01.1992] 2CT..CM30,40..4FC |
92122-60822 |
US $1.31 |
||
|
25620
|
25620
25620-64050 Valve Assy, Egr[08.1988 - 01.1992] 2CT..CM30,40..4FC |
25620-64050 |
US $262.08 |
||
|
25627
|
25627
25627-64020 Gasket, Egr Valve[08.1988 - 12.1990] 2CT..CM30,40..4FC |
25627-64020 |
US $5.39 |
||
| replacement | |||||
|
25627
|
25627
25627-64041 Gasket, Egr Valve[08.1988 - 12.1990] 2CT..CM30,40..4FC |
25627-64041 |
from US $4.17 |
||
|
25627
|
25627
25627-64041 Gasket, Egr Valve[12.1990 - 01.1992] 2CT..CM30,40..4FC |
25627-64041 |
from US $4.17 |
||
|
25628
|
25628
25628-64020 Gasket, Egr Inlet[08.1988 - 06.1990] 2CT..CM30,40..4FC |
25628-64020 |
US $17.33 |
||
| replacement | |||||
|
25628
|
25628
25628-64030 Gasket, Egr Inlet[08.1988 - 06.1990] 2CT..CM30,40..4FC |
25628-64030 |
from US $11.15 |
||
|
25628
|
25628
25628-64030 Gasket, Egr Inlet[06.1990 - 01.1992] 2CT..CM30,40..4FC |
25628-64030 |
from US $11.15 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9040230002
|
9040230002
90402-30002 Nut, Union, Egr Pipe, No.1 |
90402-30002 |
US $11.07 |
||
|
9041022001
|
9041022001
90410-22001 Sleeve, Ball, Egr Pipe, No.1 |
90410-22001 |
US $2.62 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
