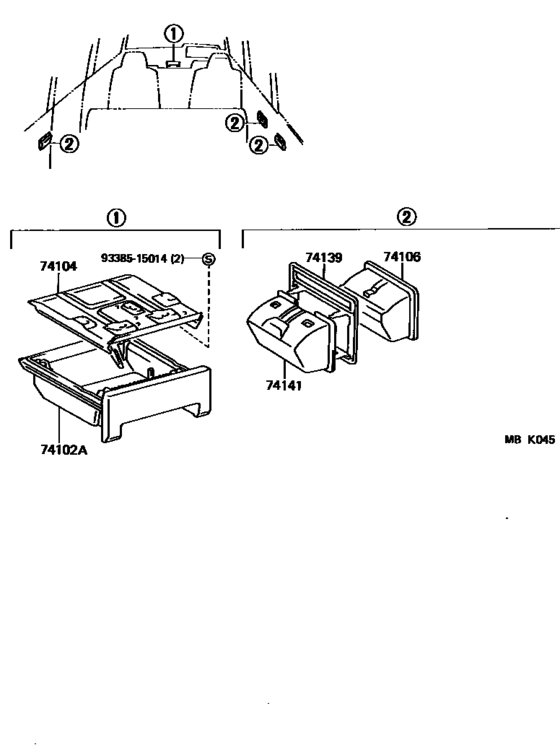

Ash Receptacle ([10.1985 - ] (8510- )) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74102A
|
74102A
74102-95702-06
Receptacle Assy, Front Ash
[10.1985 - 08.1988] CM35,KM3# BROWN,BROWN,TRIM4# |
74102-95702-06 |
— | ||
| replacement | |||||
|
74102A
|
74102A
74102-95703 Receptacle Assy, Front Ash[10.1985 - 08.1988] CM35,KM3# BROWN,BROWN,TRIM4# |
74102-95703 |
US $66.54 |
||
|
74104
|
74104
74104-95710 Retainer Sub-Assy, Ash Receptacle, No.1[10.1985 - 08.1988] CM35,KM3# |
74104-95710 |
US $21.69 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
