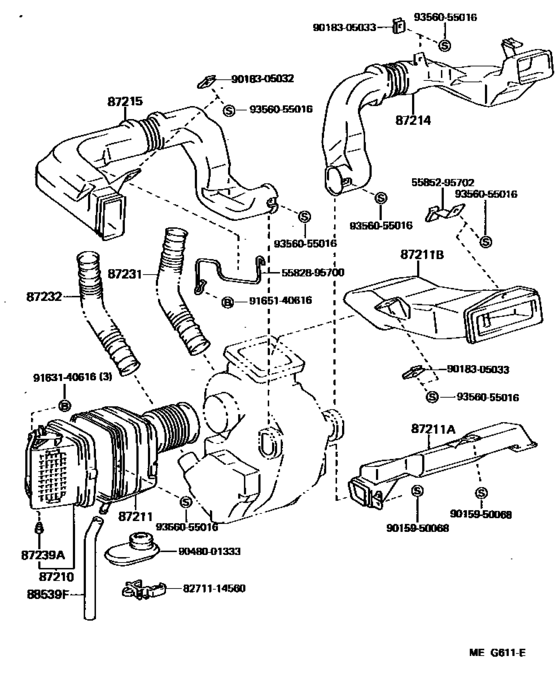

Heating & Air Conditioning - Control & Air Duct ([10.1985 - ] (8510- )RHD) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87210
|
87210
87210-95707
Damper Assy, Air
[10.1985 - 08.1988] CM35,KM36..RHD |
87210-95707 |
— | ||
|
87211
|
87211
87211-95715
Duct, Air, No.1
[10.1985 - 08.1988] CM35,KM36..RHD |
87211-95715 |
— | ||
|
87211A
|
87211A
87211-95716
Duct, Air, No.2
[10.1985 - 08.1988] CM35,KM36..RHD |
87211-95716 |
— | ||
|
87211B
|
87211B
55086-95701 Duct, Air, No.3[10.1985 - 08.1988] CM35,KM36..RHD |
55086-95701 |
US $42.22 |
||
|
87214
|
87214
55085-95703 Duct, Air, Side No.1 Rh[10.1985 - 08.1988] CM35,KM36..RHD |
55085-95703 |
US $71.78 |
||
|
87215
|
87215
55084-95703 Duct, Air, Side No.1 Lh[10.1985 - 08.1988] CM35,KM36..RHD |
55084-95703 |
US $71.78 |
||
|
87231
|
87231
87231-95701
Hose, Heater Defroster, Rh
[10.1985 - 04.1987] CM35,KM3# |
87231-95701 |
— | ||
|
87231
|
87231
87231-95702
Hose, Heater Defroster, Rh
[04.1987 - 08.1988] CM35,KM3# |
87231-95702 |
— | ||
|
87232
|
87232
87231-95701
Hose, Heater Defroster, Rh
[10.1985 - 04.1987] CM35,KM3# |
87231-95701 |
— | ||
|
87232
|
87232
87231-95702
Hose, Heater Defroster, Rh
[04.1987 - 08.1988] CM35,KM3# |
87231-95702 |
— | ||
|
87239A
|
87239A
87239-95700 Cover, Heater Inlet Hole[12.1987 - 08.1988] CM35,KM3# |
87239-95700 |
US $5.24 |
||
|
88539F
|
88539F
88539-95707
Hose, Drain
[10.1985 - 08.1988] CM35,KM3# |
88539-95707 |
— | ||
|
5582895700
|
5582895700
55828-95700 Pin, Front Ventilator Handle |
55828-95700 |
US $5.82 |
||
|
5585295702
|
5585295702
55852-95702 Ornament, Side Ventilator, Rh |
55852-95702 |
US $5.24 |
||
|
8271114560
|
8271114560
82711-14560 Wire, Fuse To Fuse(for Combustion Heater) |
82711-14560 |
US $1.97 |
||
|
9015950068
|
9015950068
90159-50068 SCREW |
90159-50068 |
US $1.25 |
||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $1.43 |
||
|
9048001333
|
9048001333
90480-01333
New Genuine Part
|
90480-01333 |
— | ||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
||
