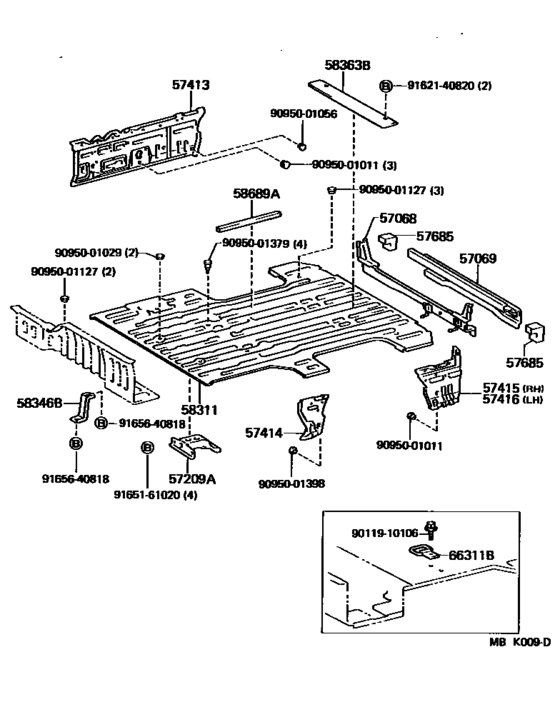

Rear Floor Panel & Rear Floor Member ([10.1985 - ] (8510- )RHD) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57068
|
57068
57068-95700 Member Sub-Assy, Rear Floor Rear Cross, Inner[10.1985 - 08.1988] CM35,KM3# |
57068-95700 |
US $145.60 |
||
| replacement | |||||
|
57068
|
57068
57068-95704 Member Sub-Assy, Rear Floor Rear Cross, Inner[10.1985 - 08.1988] CM35,KM3# |
57068-95704 |
US $164.53 |
||
|
57069
|
57069
57069-95700 Member Sub-Assy, Rear Floor Rear Cross, Outer[03.1986 - 08.1988] CM35,KM3# |
57069-95700 |
US $160.16 |
||
| replacements | |||||
|
57069
|
57069
57069-95703 Member Sub-Assy, Rear Floor Rear Cross, OuterREAR FLOOR REAR CROSS, OUTER [03.1986 - 08.1988] CM35,KM3# |
57069-95703 |
US $164.53 |
||
|
57069
|
57069
90333-20001 PLUG[03.1986 - 08.1988] CM35,KM3# |
90333-20001 |
from US $1.21 |
||
|
57069
|
57069
57069-95701 Member Sub-Assy, Rear Floor Rear Cross, Outer[10.1985 - 03.1986] CM35,KM31,36 |
57069-95701 |
US $158.70 |
||
| replacements | |||||
|
57069
|
57069
57069-95702 Member Sub-Assy, Rear Floor Rear Cross, OuterREAR FLOOR REAR CROSS, OUTER [10.1985 - 03.1986] CM35,KM31,36 |
57069-95702 |
US $164.53 |
||
|
57069
|
57069
90333-20001 PLUG[10.1985 - 03.1986] CM35,KM31,36 |
90333-20001 |
from US $1.21 |
||
|
57209A
|
57209A
57209-95705 Member Sub-Assy, Engine Rear Mounting[10.1985 - 08.1987] CM35 |
57209-95705 |
US $101.92 |
||
| replacement | |||||
|
57209A
|
57209A
57209-95713 Member Sub-Assy, Engine Rear Mounting[10.1985 - 08.1987] CM35 |
57209-95713 |
US $100.46 |
||
|
57209A
|
57209A
57209-95713 Member Sub-Assy, Engine Rear Mounting[08.1987 - 08.1988] CM35 |
57209-95713 |
US $100.46 |
||
|
57413
|
57413
57405-95730 Rail, Floor Side, Center Rh[10.1985 - 08.1988] CM35,KM36..RHD |
57405-95730 |
US $215.49 |
||
|
57414
|
57414
57414-95718 Rail, Floor Side, Center Lh[10.1985 - 08.1988] KM36..SRF;CM35,KM36..RHD |
57414-95718 |
US $65.67 |
||
| replacements | |||||
|
57414
|
57414
57406-95718 Rail, Floor Side, Center Lh[10.1985 - 08.1988] KM36..SRF;CM35,KM36..RHD |
57406-95718 |
US $66.10 |
||
|
57414
|
57414
90333-15002 PLUG[10.1985 - 08.1988] KM36..SRF;CM35,KM36..RHD |
90333-15002 |
US $1.61 |
||
|
57414
|
57414
90333-25001 Plug, Hole(For Hood)[10.1985 - 08.1988] KM36..SRF;CM35,KM36..RHD |
90333-25001 |
from US $1.29 |
||
|
57414
|
57414
90950-01848 New Genuine Part[10.1985 - 08.1988] KM36..SRF;CM35,KM36..RHD |
90950-01848 |
US $8.60 |
||
|
57415
|
57415
57047-95705 Rail, Floor Side, Rear Rh[10.1985 - 08.1988] CM35,KM31,36 |
57047-95705 |
US $90.27 |
||
|
57416
|
57416
57048-95705 Rail, Floor Side, Rear Lh[10.1985 - 08.1988] CM35,KM31,36 |
57048-95705 |
US $90.27 |
||
|
57685
|
57685
57685-95700 Dust Proof, Rear Floor Crossmember[10.1985 - 08.1987] CM35,KM3# |
57685-95700 |
US $11.36 |
||
|
58311
|
58311
58311-95G16 Pan, Rear FloorREAR FLOOR [08.1986 - 08.1988] CM35,KM36..RHD W/ROPE HOOK |
58311-95G16 |
US $618.80 |
||
|
58311
|
58311
58311-95G21 Pan, Rear FloorREAR FLOOR [10.1985 - 08.1988] CM35,KM36..RHD |
58311-95G21 |
US $618.80 |
||
|
58363B
|
58363B
58363-95700 Balancer, Rear Floor, No.1REAR FLOOR, NO.1 [10.1985 - 08.1988] CM35,KM31,36 RR |
58363-95700 |
US $299.94 |
||
|
58363B
|
58363B
58363-95701 Balancer, Rear Floor, No.1REAR FLOOR, NO.1 [10.1985 - 08.1988] CM35,KM31,36 FR |
58363-95701 |
US $299.94 |
||
|
58689A
|
58689A
58688-95700 Weight, Rear Floor[01.1986 - 08.1988] KM36..02S L=460; CM35,KM31 L=460 |
58688-95700 |
US $49.50 |
||
|
58689A
|
58689A
58688-95701 Weight, Rear Floor[10.1985 - 01.1986] CM35,KM31 L=300; KM36..02S L=300 |
58688-95701 |
US $40.77 |
||
|
66311B
|
66311B
66311-95J00 Hook, Rope[08.1986 - 08.1988] CM35,KM36 |
66311-95J00 |
US $5.37 |
||
|
9011910106
|
9011910106
90119-10106 New Genuine Part |
90119-10106 |
US $4.12 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $3.05 |
||
|
9095001029
|
9095001029
90950-01029
Plug, Hole, No.1(For Dash Panel)
|
90950-01029 |
— | ||
| replacement | |||||
|
9095001029
|
9095001029
90950-01882 Cover, Hole |
90950-01882 |
from US $2.01 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4.48 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9162140820
|
9162140820
91621-40820 Bolt |
91621-40820 |
US $2.33 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
