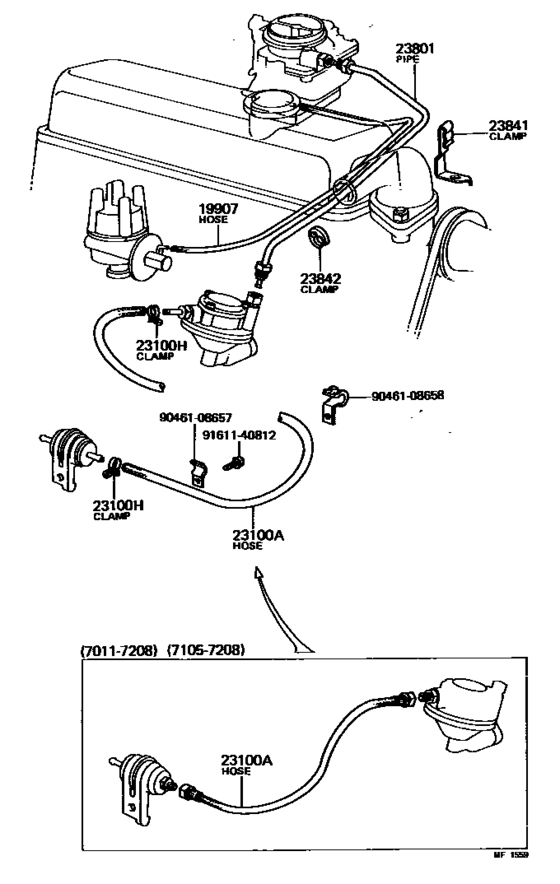

Fuel Pipe & Clamp ([05.1971 - 04.1973] (7105-7304)) Diagram Toyota LITEACE
- Year
- 1971 - 1974
- Sales region
- General
- Frame
- KM10
- body
- TR
- ENGINE
- 3K
- Model
- LITEACE
- From
- 05.1971
- To
- 08.1974
- Vehicle Model
- LITEACE
- Driver's Position
- T3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19907
|
19907
90445-07004
Hose, Vacuum, No.1
[04.1973 - 11.1975] 3K..KM10 |
90445-07004 |
— | ||
|
19907
|
19907
90445-07159 Hose, Vacuum, No.1VACUUM, NO.1 [05.1971 - 04.1973] 3K..KM10 |
90445-07159 |
US $7.13 |
||
|
23100A
|
23100A
90923-01151
Hose, Fuel
[05.1971 - 08.1972] 3K..KM10..TR |
90923-01151 |
— | ||
|
23100A
|
23100A
95331-06040 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [04.1973 - 08.1974] 3K..KM10..TR |
95331-06040 |
US $6.26 |
||
| replacement | |||||
|
23100A
|
23100A
95333-06040 Hose[04.1973 - 08.1974] 3K..KM10..TR |
95333-06040 |
from US $13.08 |
||
|
23100A
|
23100A
95331-08060 Hose, FuelFUEL, NO.2 (FOR BREATHER TUBE) [08.1972 - 04.1973] 3K..KM10..TR |
95331-08060 |
US $11.50 |
||
| replacement | |||||
|
23100A
|
23100A
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1972 - 04.1973] 3K..KM10..TR |
95333-08060 |
— | ||
|
23100H
|
23100H
90467-12140 Clip(For Fuel Hose)[04.1973 - 02.1974] 3K..KM10 |
90467-12140 |
US $2.18 |
||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[04.1973 - 02.1974] 3K..KM10 |
96132-51100 |
from US $1.42 |
||
|
23100H
|
23100H
90467-13138
Clip(For Fuel Hose)
[08.1972 - 04.1973] 3K..KM10 |
90467-13138 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51300 Clip(For Ventilation Hose No.2)[08.1972 - 04.1973] 3K..KM10 |
96132-51300 |
from US $1.48 |
||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[02.1974 - 09.1979] 3K#,4KJ..KM1# |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[02.1974 - 09.1979] 3K#,4KJ..KM1# |
96132-51100 |
from US $1.42 |
||
|
23801
|
23801
23801-24011 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1CARBURETOR FUEL, NO.1 [05.1971 - 02.1978] 3K#..KM10 |
23801-24011 |
US $13.40 |
||
|
23841
|
23841
90461-08532
Clamp, Fuel Pipe(Hose), No.1
[05.1971 - 09.1979] 3K#,4KJ..KM1# |
90461-08532 |
— | ||
|
23842
|
23842
23842-11010 Clamp, Fuel Pipe(Hose), No.1[05.1971 - 11.1975] 3K..KM10 |
23842-11010 |
US $4.66 |
||
| replacement | |||||
|
23842
|
23842
90464-00233
Clamp (For Idle Up Divice), No.1
[05.1971 - 11.1975] 3K..KM10 |
90464-00233 |
— | ||
|
9046108657
|
9046108657
90461-08657
New Genuine Part
|
90461-08657 |
— | ||
|
9046108658
|
9046108658
90461-08658
New Genuine Part
|
90461-08658 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
